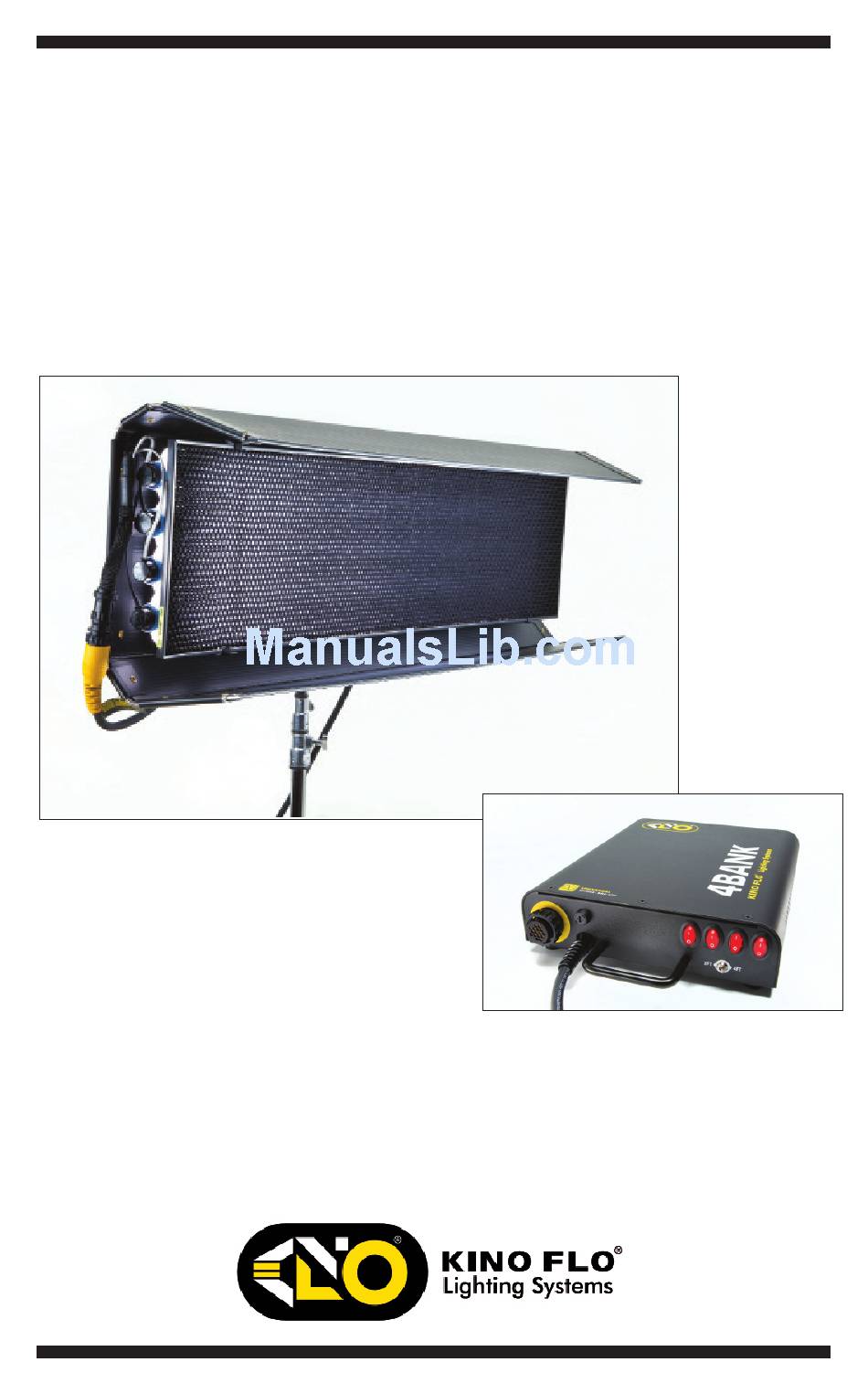

- Page 1 Operation Manual 4Bank, Double & Single Part No. 3100071 Rev C 08-29-2017...
- Page 2 Systems Double Single 4Bank Each System consists of: 1 Fixture 1 Mounting Plate 1 Extension Cable 1 Ballast True Match Lamps ® 488-K32-S/6P 4ft Kino KF32 (1 x 6pk) 488-K55-S/6P 4ft Kino KF55 (1 x 6pk) 242-K32-S/6P 2ft Kino KF32 (1 x 6pk)
- Page 3 Weight: 56.5 x 13 x 21.5” 72.5 lb (143.5 x 33 x 55cm) (33kg) KIT-484B-120U 4ft 4Bank Kit, Univ 120U (1-Unit) w/ Soft Case KIT-484B-230U 4ft 4Bank Kit, Univ 230U (1-Unit) w/ Soft Case Kit Contents: 1 4ft 4Bank System...
- Page 4 Interview Kit (2-Unit) 35.5 x 13 x 22” 56.5 lb (90 x 33 x 56cm) (26kg) KIT-244B-120U 2ft 4Bank Kit, Univ 120U (1-Unit) w/ Soft Case KIT-244B-230U 2ft 4Bank Kit, Univ 230U (1-Unit) w/ Soft Case Kit Contents: 1 2ft 4Bank System w/...
- Page 5 Fixture Assembly The 4Bank, Double and Single fixtures are comprised of a removable Louver, Reflector and Lamp Harness. The Louver and Reflector are held in place with Velcro fasteners. The Lamp Harness is secured by means of a ¼ turn fastener and two clips.
- Page 6 Inserting Lamps Locking Lamp Connector: Depress both tabs on lamp connector and apply to lamp pins. Match the Harness color-codes at each end of the lamp. Push lamps into the fixture’s Lamp Holder Clips. Gelling the Fixture Restricting the airflow around the lamps can cause the lamps to operate hotter.
-
Page 7: Mounting The Fixture
Mounting the Fixture The standard mount (MTP-KW41) comes with a 3/8” Lollipop that clamps into a grip head. The ball and socket mount allows the fixture to be oriented in a broad range of angles. Align the center pin of the mounting plate to the center hole on the mating plate. - Page 8 Other Fixture Mounting Options The grommet holes along the edge of the fixture are designed to allow the fixture to be screwed onto set walls. Ballast Operation WARNING! 1) ALWAYS TURN OFF THE BALLAST BEFORE connecting or disconnecting Lamps, Harnesses or Extension Cables. 2) Use only with Sine wave inverters.
-
Page 9: Extension Cable
Lamps can operate as far as 75 feet from the ballast. (3 x 25ft extensions) A Splitter can be used at the Ballast or on the end of an Extension Cable to split a 4Bank run into either four Singles or two Doubles. This allows for greater rigging flexibility. -
Page 10: System Components
System Components CFX-484 4ft 4Bank Fixture w/ Louver/HP, 90° CFX-4802 4ft Double Fixture CFX-4801 4ft Single Fixture CFX-244 2ft 4Bank Fixture w/ Louver/HP, 90° CFX-2402 2ft Double Fixture CFX-2401 2ft Single Fixture MTP-KW41 Kino 41K Mount Wing w/ 3/8” Pin... -
Page 11: Accessories And Parts
Accessories and Parts DFS-4804 4ft 4Bank Flozier, Full DFS-4804-H 4ft 4Bank Flozier, Half DFS-D4 2ft 4Bank Flozier, Full DFS-SL20-H 2ft 4Bank Flozier, Half FIX-484 4ft 4Bank Fixture Shell FIX-4802 4ft Double Fixture Shell FIX-4801 4ft Single Fixture Shell FIX-244 2ft 4Bank Fixture Shell... - Page 12 REF-4802 4ft Double Reflector REF-4801 4ft Single Reflector REF-2404 2ft 4Bank Reflector REF-2402 2ft Double Reflector REF-2401 2ft Single Reflector X16-12 4Bank Extension Cable, 12ft X16-A4 4Bank to Single Splitter X16-A9 4Bank to Double Splitter X09-A4 Double to Single Splitter...
- Page 13 Fixture Wire Repair Kit (Silver) EXP-LHC-T12 Lamp Holder Clips, T12 (24pk) EXP-M&T Adhesive Mounts & Releasable Ties (25pk) PRT-CR4 4Bank Connector Locking Ring (4pk) PRT-CR2 Double Connector Locking Ring (4pk) PRT-CR1 Single Connector Locking Ring (4pk) PRT-HLC Kino Locking Lamp Connector...
- Page 14 KAS-KFC BAG-201 Part Number Description Dimensions Weight Holds (Empty) BAG-201 2ft 4Bank Soft Case 28 x 7.5 x 20” 3.5 lb 2ft 4Bank System (1), (72.5 x 19 x 51cm) (2kg) Lamp Case BAG-401 4ft 4Bank Soft Case 55 x 8 x 19.5”...
- Page 15 Ballast Specifications BAL-427-120U 4Bank Ballast, Univ 120U Input Voltage: 100~240VAC 50/60Hz Output Frequency: 25kHz Amperage: F75/2.6A, F40/2.5A, F30/1.6A, F20/0.9A Lamp Switching: 1~4 Output Switching: 4ft / 2ft Ballast Size: 13 x 9.5 x 3” 4Bank (33 x 24 x 7.6cm) Weight: 4.9lb (2.2kg)
- Page 16 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
