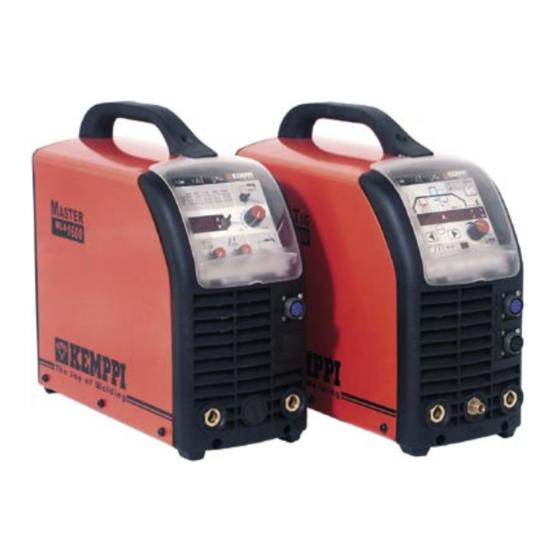

1.2. PRODUCT INTRODUCTION Kemppi MASTER MLS™ 1600 is a MMA welding machine designed for industrial use and for welding all kinds of covered electrodes including difficult-to-weld types such as cellulose electrodes. -
Page 4: Installation
MMA-version 4. (+) -connector for electrode holder or earth cable, in TIG-welding for earth cable 5. (-)-connector for earth cable or electrode holder in MMA-welding (stick welding) 4 – MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 © KEMPPI OY... -
Page 5: Installation Of The Panel
This equipment’s electromagnetic compatibility (EMC) is designed for use in an industrial environment. Class A equipment is not intended for use in residential location where the electrical power is provided by the public low-voltage supply system. MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 – 5 © KEMPPI OY... -
Page 6: Welding Cable Connections
Use as shield gas argon or other gas suitable for TIG welding.The flow rate of the gas is defined by the welding current and the size of the electrode. If the gas flow is not suitable it might be difficult to weld. Contact your local Kemppi-dealer for choosing gas and equipment. Parts of gas flow regulator... -
Page 7: Installing Gas Bottle
This method gives you the possibility to adjust all the pulse parameters. It can be used for easier weld pool control. It is included in MTX and MTM panels. MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 – 7 © KEMPPI OY... -
Page 8: Operation Functions
Welding settings suitable for the work piece are chosen with different function panels before welding starts. See 3.1. Welding processes. The Kemppi Multi Logic System, MLS, allows you to select between different function panels according to your welding application: MEL and MEX panel for MMA welding, or MTL, MTX, MTM for TIG welding with basic functions or with pulsed TIG, 4T-LOG or MINILOG control of welding current or with memory channels. - Page 9 2. Welding current potentiometer 3. Contact TIG welding 4. MMA welding 5. Arc force 6. Hot start 7. Digital display and amperage/voltage switch 8. Welding current table MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 – 9 © KEMPPI OY...
-
Page 10: Arc Force
By pressing hot start button you will see the numerical value corresponding to the hot start pulse on the display. You can change the value by turning the potentiometer. In TIG mode gas test function can be selected. 10 – MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 © KEMPPI OY... - Page 11 When you adjust parameters, you can see the value on the numerical display. After 10 seconds, the display will return to the welding current. MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 – 11 © KEMPPI OY...
- Page 12 Pulse mode. When you adjust the pulse ratio percentage, pulse current or pause current percentage a new mean welding current value is calculated and displayed on the panel. 12 – MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 © KEMPPI OY...
-
Page 13: Saving Welding Settings (Mtm)
SET when the memory function is in off state (no lights on). Channel is cleared if MEMORY and CH buttons are pressed simultaneously in SET state. MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 – 13 © KEMPPI OY... -
Page 14: Taking The Saved Settings Into Use
The machine must be stored in a clean and dry room. Protect the machine from rain and keep it away from direct sunshine in places where temperature exceeds +25 °C. 14 – MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 © KEMPPI OY... -
Page 15: Maintenance
Only an authorized electric shop or electrician may repair the machine. 4.1.2. Service contract KEMPPI -service workshops make special service contracts with customers about regular maintenance. All parts are cleaned, checked and if necessary, repaired. Also the operation of welding machine is tested. -
Page 16: Troubleshooting
Check that there is enough free space behind the machine for cooling air circulation. For further information and assistance, contact your nearest Kemppi service workshop. 4.4. DISPOSAL OF THE MACHINE Do not dispose of electrical equipment together with normal waste! -
Page 17: Technical Data
*) With 16 A fuse max. welding current is 150 A. If this exceeded a 20 A fuse and plug are needed. The products meet the conformity requirements of CE-marking. MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530 – 17 © KEMPPI OY... -
Page 18: Terms Of Guarantee
Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor. - Page 19 Tel (06033) 88 020 KEMPPI NORGE A/S Telefax (06033) 72 528 Postboks 2151, Postterminalen e-mail:sales.de@kemppi.com N – 3103 TØNSBERG KEMPPI SP. z o.o. NORGE Ul. Piłsudskiego 2 Tel 33 34 60 00 05-091 ZA¸BKI Telefax 33 34 60 10 Poland e-mail: sales.no@kemppi.com...
