Icom IC-F15 Instruction Manual page 29

ï AD-106 installation
The AD-106
CHARGER ADAPTER
or BC-121N before battery charging.

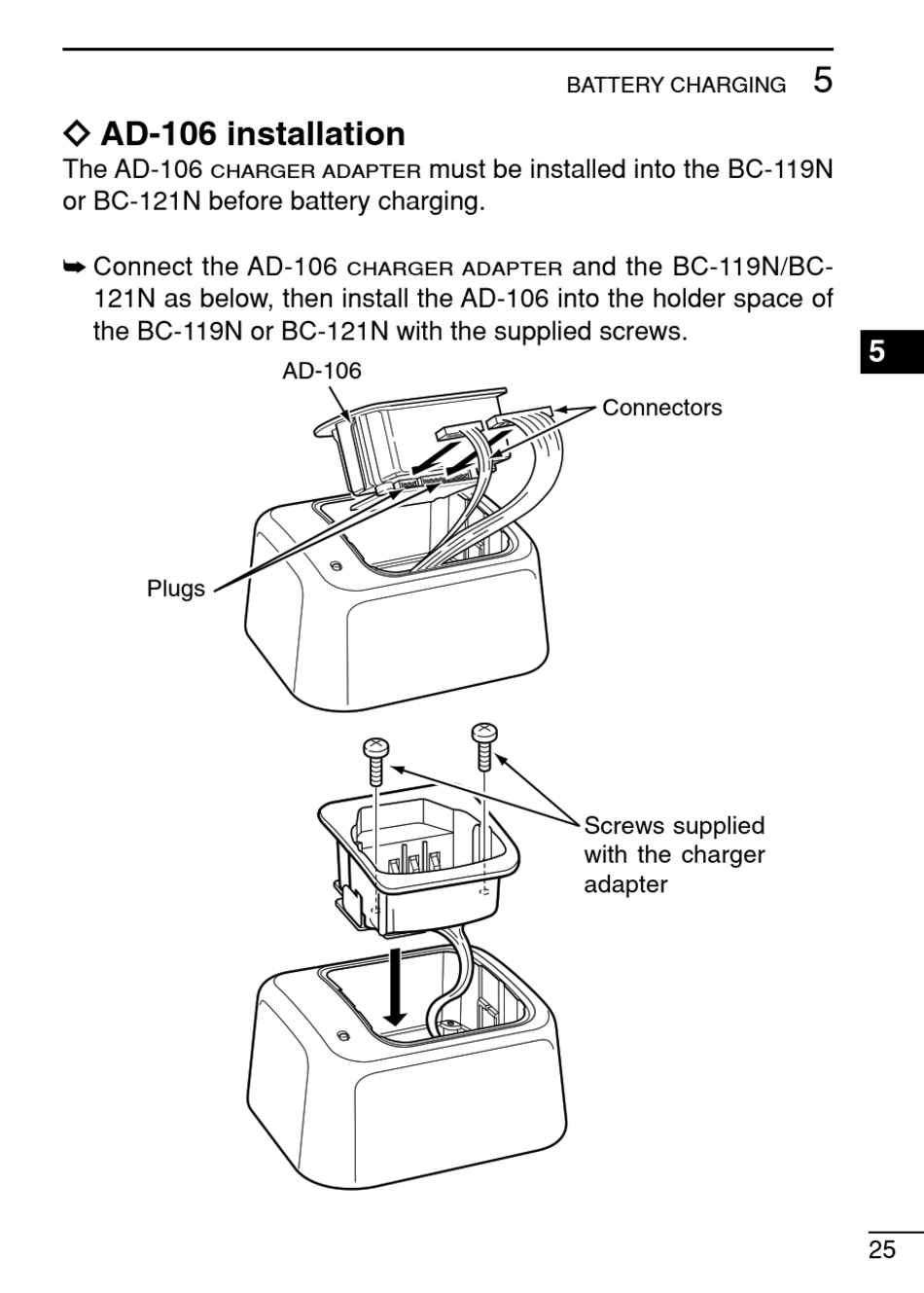

➥ Connect the AD-106
121N as below, then install the AD-106 into the holder space of
the BC-119N or BC-121N with the supplied screws.
Plugs
must be installed into the BC-119N
CHARGER ADAPTER
AD-106
BATTERY CHARGING
and the BC-119N/BC-
Connectors
Screws supplied
with the charger
adapter
