- Page 1 5-Play™ PU-1H2HBTE 1 HDMI to 2 HDBaseT™ Splitter (100m) including HDMI output bypass OPERATIONS MANUAL...
-
Page 2: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Pin Assignment ........10 7. Connection Diagram ......11 8. -
Page 5: Introduction
1. INTRODUCTION The PU-1H2BTE splitter accepts 1x HDMI input and distributes to 2 HDBaseT™ outputs, plus 1 HDMI bypass output. The HDBaseT™ outputs allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be transmitted over a Single CAT5e/6/7 cable up to 100m. Installers can confidently distribute HDMI signals to 3 displays, and if required, use the HDMI bypass output to cascade the HDMI signal up to 5 times with additional HDBaseT™... -
Page 6: Features
5. FEATURES Supports all v1.4 HDMI resolutions plus 4k. HDMI, HDCP, & DVI compliant Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. Supports HDCP repeating and CEC functions Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 7: Operation Controls And Functions

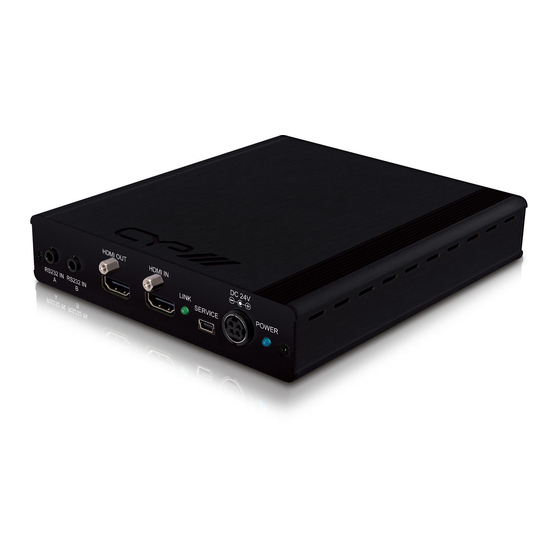

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 24V HDMI OUT HDMI IN SERVICE RS232 IN RS232 IN RS232 IN A/B: Connect to a PC/laptop or RS-232 control system (with supplied 3.5mm phone jack to D-Sub 9 pin adaptor) for the transmission of RS-232 commands. -
Page 8: Rear Panel
6.2 Rear Panel IR A1 IR B1 IR A2 IR B2 Extender Blaster Extendrt Blaster MODE LINK MODE LINK LAN: Connect to an active network for LAN serving. When any compatible LAN equipped receivers are connected, this allows the network access (including internet access if available) to be shared between any connected LAN equipped receivers. -
Page 9: Ir Pin Assignment
6.3 IR Pin Assignment Twin IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/10.2Gbps Input port 1 x Female HDMI type A, 2 x 3.5mm RS232, 2 x IR Receivers, 1 x LAN (Ethernet),1 x USB (Service Only) Output port 1 x HDMI, 2 x CAT5e/6/7, 2 x IR Emitters Resolution Up to 4Kx2K Power Supply... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television...
