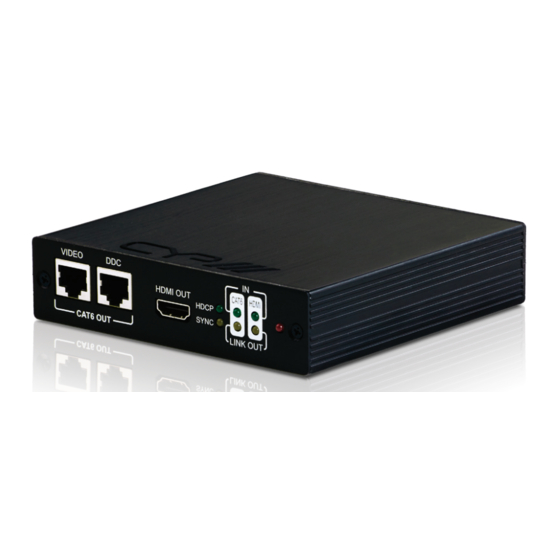

CYP PU-22HC Operation Manual

V1.3 hdmi/cat6 to hdmi/ cat6 cascader
Hide thumbs Also See for PU-22HC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
PU-22HC
v1.3 HDMI/CAT6 to HDMI/
CAT6 Cascader
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-22HC and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PU-22HC

Summary of Contents for CYP PU-22HC

  • Page 1 PU-22HC v1.3 HDMI/CAT6 to HDMI/ CAT6 Cascader OPERATION MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Pin Definitions Connection Diagram Specifications...

  • Page 3: Introduction

    All the PUMA, HDMI over CAT5e/6 transmitters and receivers are the perfect solution to extend HDMI signals via CAT cabling up to 40m. The PU-22HC cascader with its dual input and outputs allows for great flexiblity within any HDMI over CAT6 system.

  • Page 4: Package Contents

    3. Package Contents • 1 x HDMI/CAT6 to HDMI/CAT6 Splitter Switcher • 5V DC power supply adaptor • Operation Manual 4. Operation Controls and Functions 4.1 Front Panel VIDEO HDMI HDMI DC 5V HDMI CAT6 ONLY CAT6 HDMI IN EDID CEC OUT CAT6 IN 1.
  • Page 5 2. When EDID switch to STD the unit will use built-in EDID which supports: Video 1080p 8-bit (max), Audio PCM 2CH 3. When EDID is switch to STD with input selection on HDMI or CAT6 IN the display TV or monitor will switch to HDMI input 1, automatically. When EDID is switch to TV regardsless of the input selection the display TV or monitor will switch to HDMI input 1 mode.

  • Page 6: Rear Panel Diagram

    2. Figures provided in this manual are reference fi gures only, actual fi gures may depend on source and display use with cable specifi cation. 6. DC 5V: This is the slot where you insert the 5V DC power supply for electrical power before plugging the adaptor to an AC wall outlet.

  • Page 7: Pin Definitions

    5. Pin Video TX2+ DDC Bus Clock TX2- TX1+ DDC Bus Data TX0+ Power 5V TX0- TX1- IR IN TXC+ TXC- 6. Connection Diagram Page 5...

  • Page 8: Specifications

    7. Specifications Transmitter: 1x HDMI female port, 1x IR jack, Input Port Receiver: 2 x CAT5e/6, 1 x IR Jack Transmitter: 2 x CAT5e/6, 1 x IR Jack Output Port Receiver: 1x HDMI female port, 1x IR jack EDID STD / TV PCM2, 5.1, 7.1, Dolby 5.1, DTS 5.1, DD+, HDMI Audio Output D-TrueHD, DTS-HD...
  • Page 9 Notes:...
  • Page 10 www.cypeurope.com...
