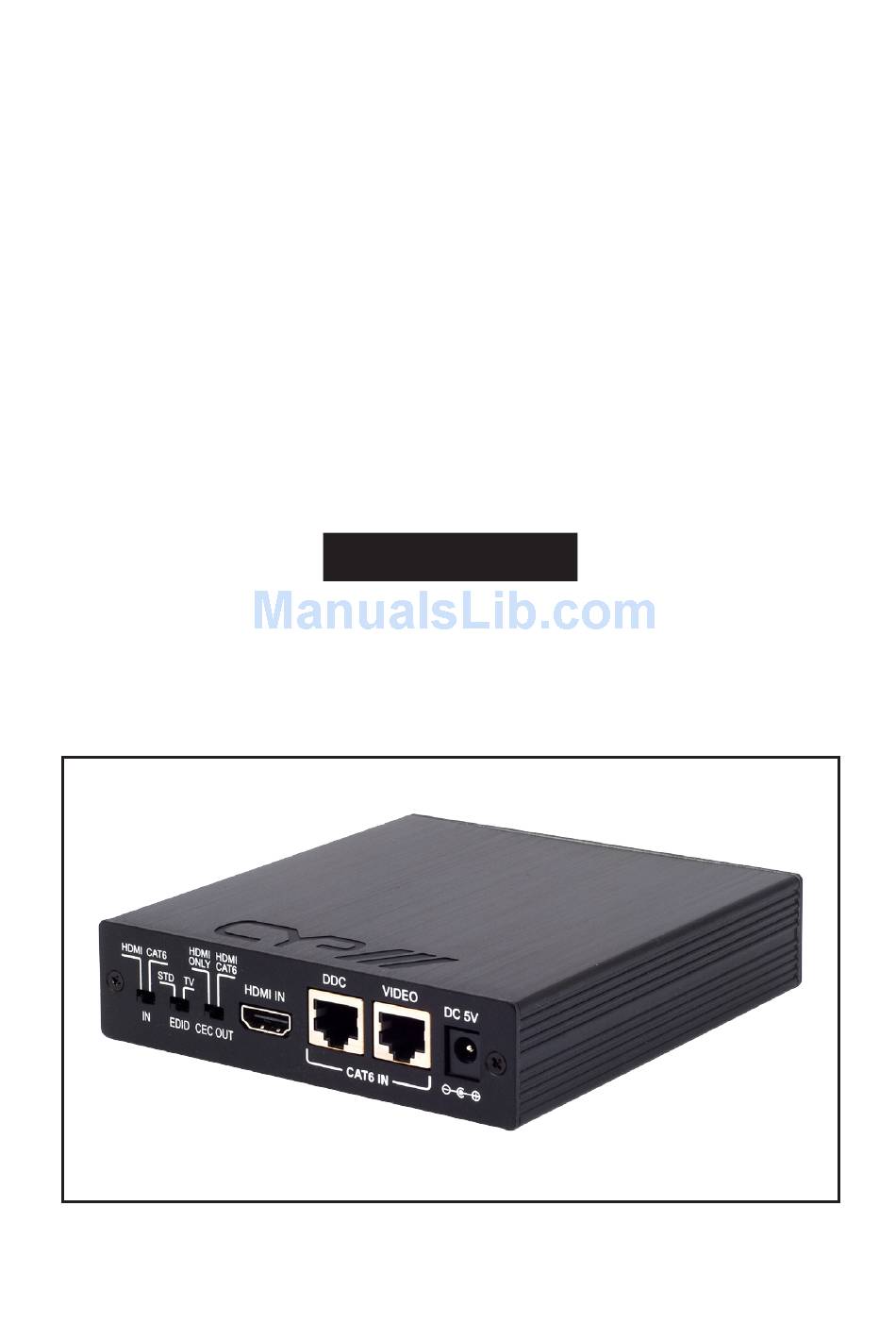

- Page 1 PU-22HC HDMI/CAT6 to HDMI/ CAT6 Splitter Switcher Operation Manual PU-22HC...
-
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fi... -
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifi cations..………………………………………...………...…. Operation Controls and Functions………………...……..……… Front Panel ................Rear Panel……………..…………………………..…….… RJ-45 Pin Defi nitions …….………………….......…..…..…... Connection and Installation............. 10. Acronyms ................... -
Page 4: Introduction
1. Introduction The HDMI/CAT6 to HDMI/CAT6 Splitter Switcher is the most advanced solution for HDMI and Video/DDC signal distribution. This CAT6 output port can be easily connected to HDMI receiver ’ s CAT6 input and then to the display and the HDMI output port can directly connected to the display. -
Page 5: Features
5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant. Deep color video up to 12bit, 1080p@(24/60)Hz. Supports One HDMI and one Video/DDC CAT6 source to One HDMI and one Video/DDC CAT6 output simultaneously. HDCP keysets allows each output to work independently when ... -
Page 6: Specifi Cations
6. Specifi cations Frequency Bandwidth 2.25Gbps (single link) Input Ports 1 x HDMI female port (Type A connector) 1 x CAT6 input Video/1 x CAT6 input DDC Output Ports 1 x CAT6 output Video/1 x CAT6 output DDC 1 x HDMI female ports (Type A connector) EDID STD / TV HDMI Audio Output... -
Page 7: Operation Controls And Functions

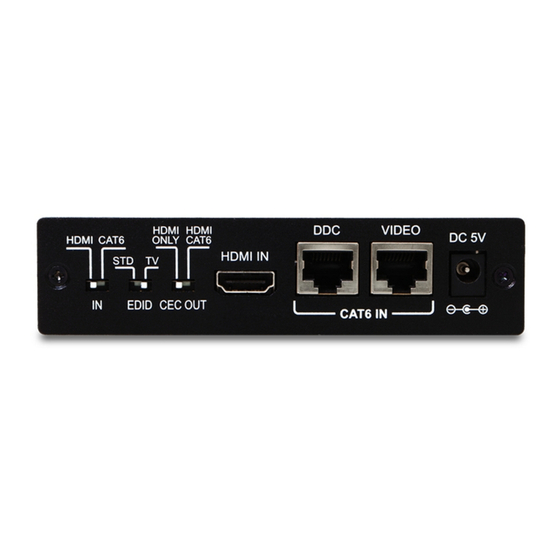

7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.2 Front Panel HDMI/CAT6 input selection: Switch to select input sources either from ① HDMI or CAT6. EDID Control Switcher: Default factory setting is TV, leave as if the display ②... -
Page 8: Rear Panel
CAT6 IN: These slots are for connecting the Video/DDC input to the ⑤ Video/DDC output of the transmitter unit with CAT6 cables. [Note]: 1. Cable tested with CAT-6E / 23AWG / Solid and therefore, cable with different specifi cation may result in different distance. 2. -
Page 9: Pin Defi Nitions
8. RJ-45 Pin Defi nitions Video TX2+ DDC Bus Clock TX2- TX1+ DDC Bus Data TX0+ Power 5V TX0- TX1- IR IN TXC+ TXC-... -
Page 10: Connection And Installation
° °... -
Page 12: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 cable Digital Visual Interface EDID Extended Display Identifi cation Data HDCP High-Bandwidth Digital Content Protection HDMI High-Defi nition Multimedia Interface HDTV High-Defi nition Television Infrared LPCM Linear Pulse Code Modulation Standard SYNC Synchronize SXGA Super Extended Graphics Array Video Graphics Array...
