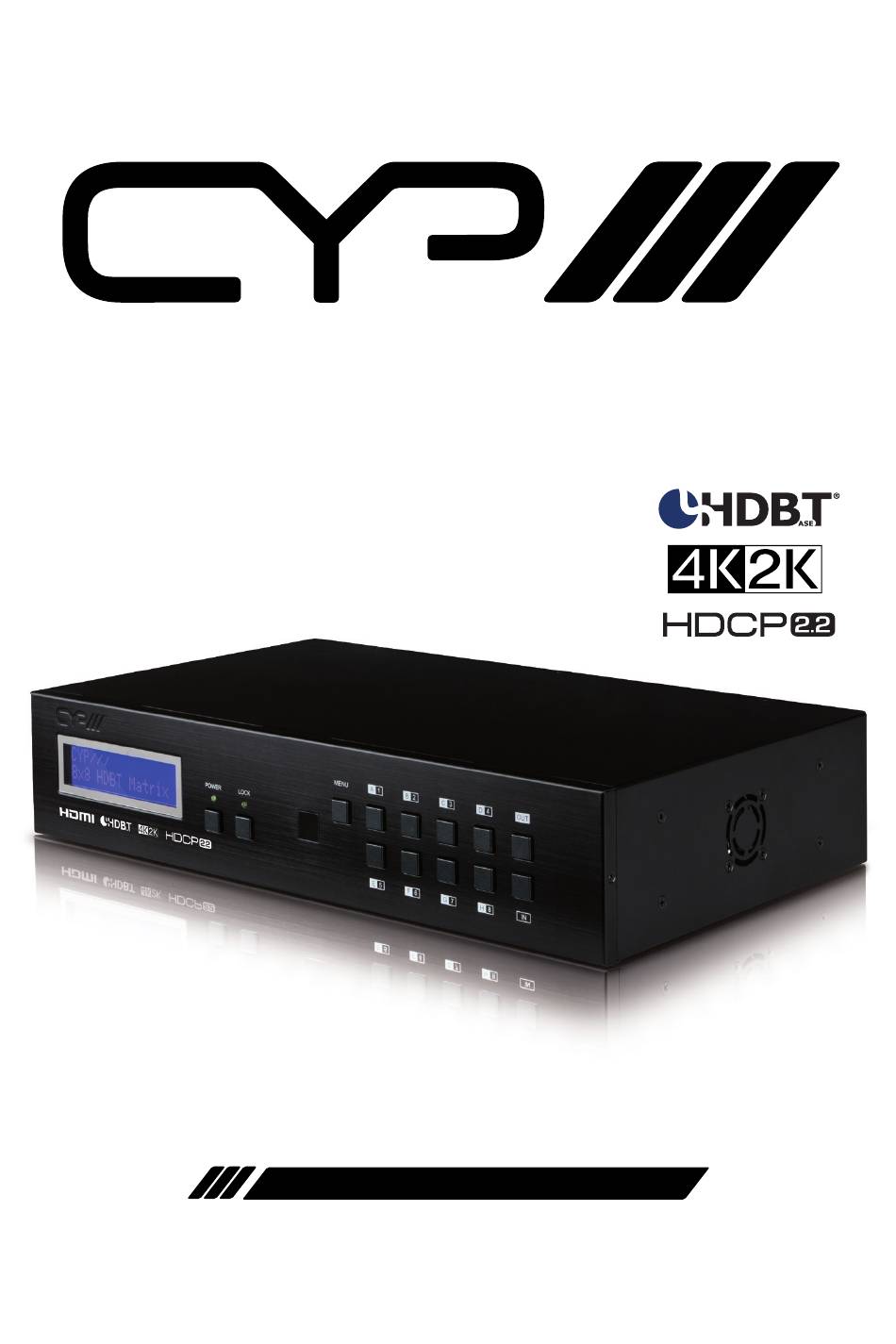

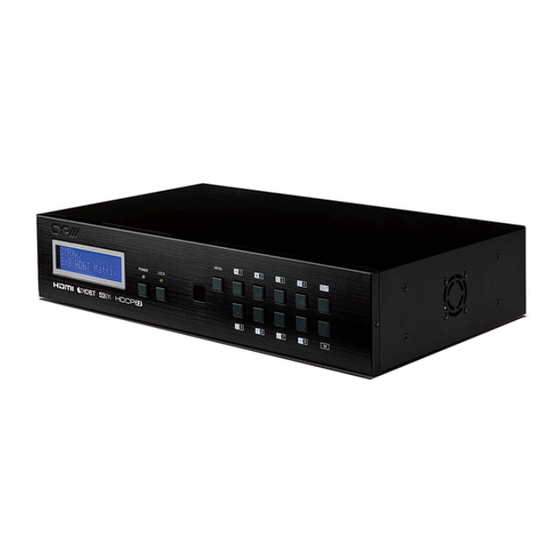

- Page 1 PU-8H8HBTE-4K22 8 x 8 HDMI HDBaseT™ Matrix (5Play™ including LAN serving, 4K resolution support & HDCP2.2) OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Side Panel ...........10 6.4 Remote Control ........11 6.5 IR Cable Pin Assignment .......11 6.6 RS-232 Protocol ........12 6.7 RS-232 and Telnet Commands ....12... -
Page 6: Introduction
3D TV and 3D source. This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports RS232 pass-through to the receivers. -
Page 7: System Requirements
PoC (Power over Cable) and LAN features are available on compatible receivers only Features bi-directional IR from input and output locations The PU-8H8HBTE-4K22 can be controlled via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI) 2U size design... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK LCM : Displays the setting information of each input and output setting. POWER: Press this button to power the device ON/OFF. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 10: Side Panel
CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT input port of the receiver units with a single CAT5e/6/7 cable for HDMI Audio/ Video and IR/RS-232 control signal transmission. Warning: Please do not connect the CAT5e/6/7 output into the receiver's LAN port. -
Page 11: Remote Control
6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. IN: Input ports selection 1~8. OUT: Output ports selection A~H. 6.5 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground... -
Page 12: Rs-232 Protocol
6.6 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER Switch output A to input N. N=1~8 Switch output B to input N. - Page 13 COMMAND DESCRIPTION PARAMETER IPCONFIG Display the current IP configuration NONE RSTIP Set IP configuration to DHCP None Power off None Power on None STOREN Store current I/O to position N N=1~8 SHOWN Show current port N I/O position N=1~8 PRESETN Preset the store I/O position N N=1~8 NameN N1...
-
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 15 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 16: Webgui Control
6.9 WebGUI Control On a PC/Laptop which is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. Once login account and password, the browser will display the device's Switch, Data Routing, EDID Settings and System Settings. - Page 17 Click on 'Data Routing' page to set up Output Baud rate and Uart Routing status. Click on 'EDID Settings' page to Setting EDID mode or update EDID. Click on 'System Settings' to control power on / off, Network status setting and reset to default settings.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out... - Page 19 ZONE ZONE ZONE Displays HDMI Outputs IR In/Out Power Power Power Link Link Link Link Receiver Units IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out...
-
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 8×HDMI, 9×IR (3.5mm), 1×RS-232 (9-pin D-sub), 1×LAN (RJ-45), 1×USB (Service only) Output Ports 8×CAT5e/6/7, 9×IR (3.5mm) Video Resolutions 480i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV420) & VGA~WUXGA IR Frequency 30~50 kHz Baud Rate 115200 bps Power Supply... -
Page 21: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Type Range Pixel clock Video Data Supported rate Rate Video CAT5e/6 100 m <225MHz <5.3Gbps Up to 1080, (HD Video) 60Hz, 36bits 3D 70 m >225MHz >5.3Gbps Deep color: 1080p, 60Hz, (UHD Video) Cat6a/7 100 m 48bpp 4K2K 8.3 Supported Resolutions Resolution... -
Page 22: Acronyms
Resolution Input Output 1920×1200@60 (RB) 3840×2160@24 3840×2160@25 3840×2160@30 3840×2160@60 3840×2160@60 (YUV420) 4096×2160@24 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Command Line Interface Digital Theater System Digital Visual Interface... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
