- Page 1 PU-2H8HBTE-AD 2 x 8 HDBaseT™ Switch with Audio Dembedding OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 8 6.3 IR Cable Pin Assignment .......10 6.4 Remote Control ........10 6.5 RS-232 Pin Definition ......11 6.6 RS-232 Commands ........11... -
Page 6: Introduction

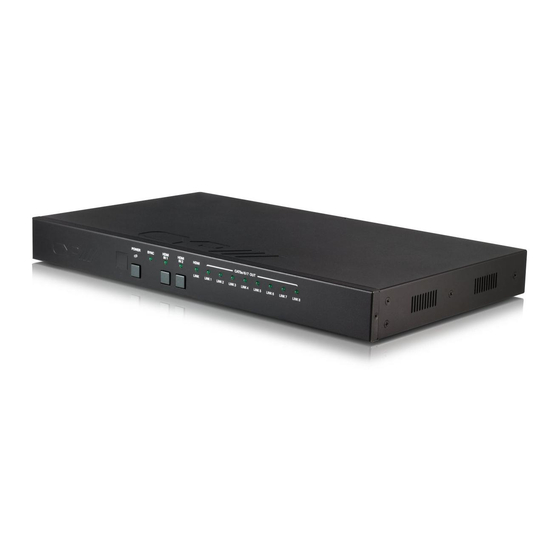

1. INTRODUCTION The PU-2H8HBTE HDBaseT switch has two HDMI inputs and eight HDBaseT outputs, plus a single HDMI output. This device allows the user to select either HDMI source for distribution to all screens simultaneously. Each HDBaseT output supports the transmission of video (resolutions up to 1080p Full HD, plus 4K Ultra High Definition, and 1920x1200@60Hz), multi-channel audio, single LAN serving, and control via 2-way IR, RS- 232 or Web GUI/Telnet IP over a single CAT5e/6/7 cable (up to 100m). -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS Source equipment with HDMI output connector Display TV/Monitor with HDMI input connector HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables 5. FEATURES HDMI, HDCP and DVI complaint Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA, 1920x1200@60Hz High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz) -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI HDMI CAT5e / 6 / 7 OUT POWER SYNC HDMI IN 1 IN 2 LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 LINK 8 IR Window: Receive IR signal from the package included remote control only. - Page 9 being used is within the direct line-of-sight of the IR Extender. LAN: Connect to intranet or internet service system for a total sharing rate of 100Mbps within the link of Transmitter. Warning: DO NOT connect this slot with any of the CAT5e/6/7 port, doing so may trigger a power shot down and ruin the device.
-
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3V IR Blaster Signal IR Extender IR Signal Power 3.3V Ground 6.4 Remote Control Power: Press the button to turn POWER On/Off the unit. Input Selection 1/2: Press 1/2 to select HDMI input sources 1 or 2. CR-37... -
Page 11: Rs-232 Pin Definition
6.5 RS-232 Pin Definition Define TX / RX TxD/RxD RxD/TxD Baud Rate: 115,200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.6 RS-232 Commands COMMAND DESCRIPTION POWER 00 Power Off (Standby) POWER 01 Power On PORT 01 Select Input 1 PORT 02 Select Input 2... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340Mbps/10.2Gbps Input ports 2 x HDMI, 1 x IR IN, 1 x LAN, 1 x USB (Service only), 1 x RS-232 Output ports 1 x HDMI, 8 x CAT5e/6/7, 1 x IR OUT, 1 x L/R OUT, 1 x Optical OUT Resolution Up to 4Kx2K (3840x2160@24/25/30Hz &... -
Page 14: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5E/6/7 100 M <=225 MHZ <=5.3 GBPS UP TO 1080P, 60 HZ, 36 BITS, 3D (DATA RATES (HD VIDEO) LOWER THAN 5.3 GBPS OR BELOW 225 MHZ TMDS CLOCK). - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
