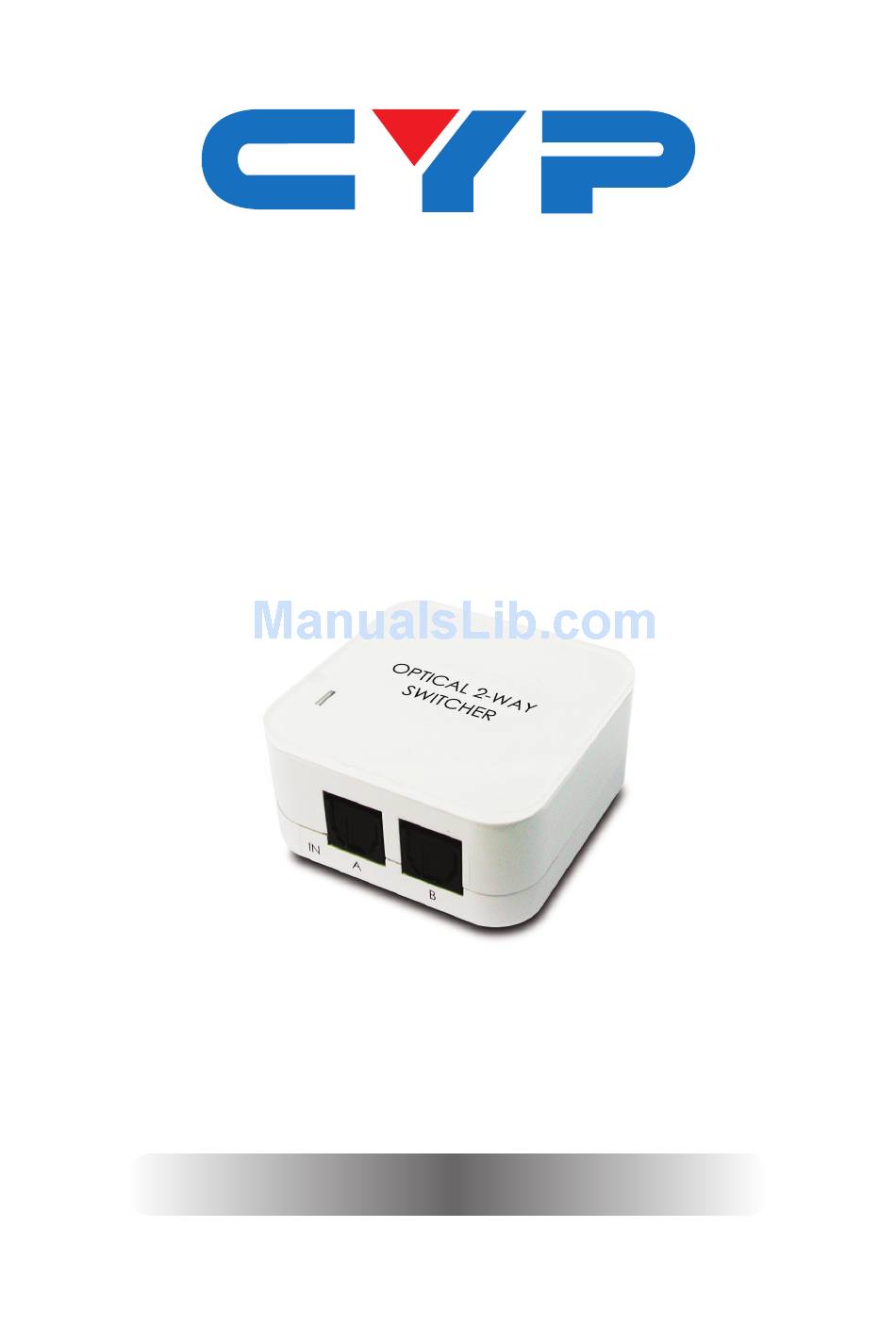

- Page 1 DT-21 Digital Optical Audio Switcher Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 6.3 Left Panel ...........4 6.4 Top Panel ...........4 7. -
Page 6: Introduction

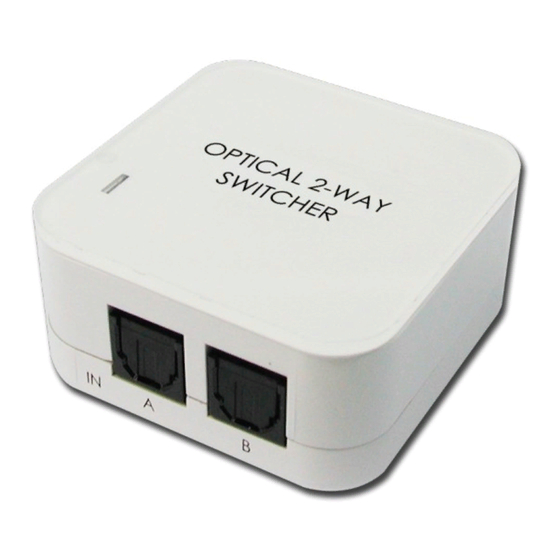

1. INTRODUCTION The Optical Digital Audio Switcher can switch two optical digital inputs to a single optical digital output to lengths of up to 5m, using TOSLink optical cables, reliably and without loss of quality. It is designed to be compact, easy to install and use, making it ideal for home or professional audio distribution. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL IN A/B Connect the TOSLink input ports to the TOSLink outputs of source equipment such as a games console, set-top box or DVD player. 6.2 Rear Panel OPTICAL OPTICAL OUT Connect the TOSLink output port to the TOSLink input port of audio equipment such as an AV receiver or active speakers. -
Page 8: Left Panel
6.3 Left Panel DC 5V Input Selection Use this mini-switch to select the required input (A or B). DC 5V Connect the 5V DC power supply to the unit and plug the adaptor into an AC wall outlet. 6.4 Top Panel OPTICAL 2-WAY SWITCHER Power LED... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Games Console Optical Digital Audio Inputs Power Supply OPTICAL 2-WAY SWITCHER Optical Digital Audio Output AV Receiver... -
Page 10: Specifications
8. SPECIFICATIONS Input Ports 2×Optical (TOSLink) Output Port 1×Optical (TOSLink) Power Supply 5 V/0.5 A or 0.36 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 46 mm (W)×45.5 mm (D)×23.5 mm (H) Weight 22 g Chassis Material Plastic Silkscreen Color White Operating Temperature 0 °C ~ 40 °C 9. - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
