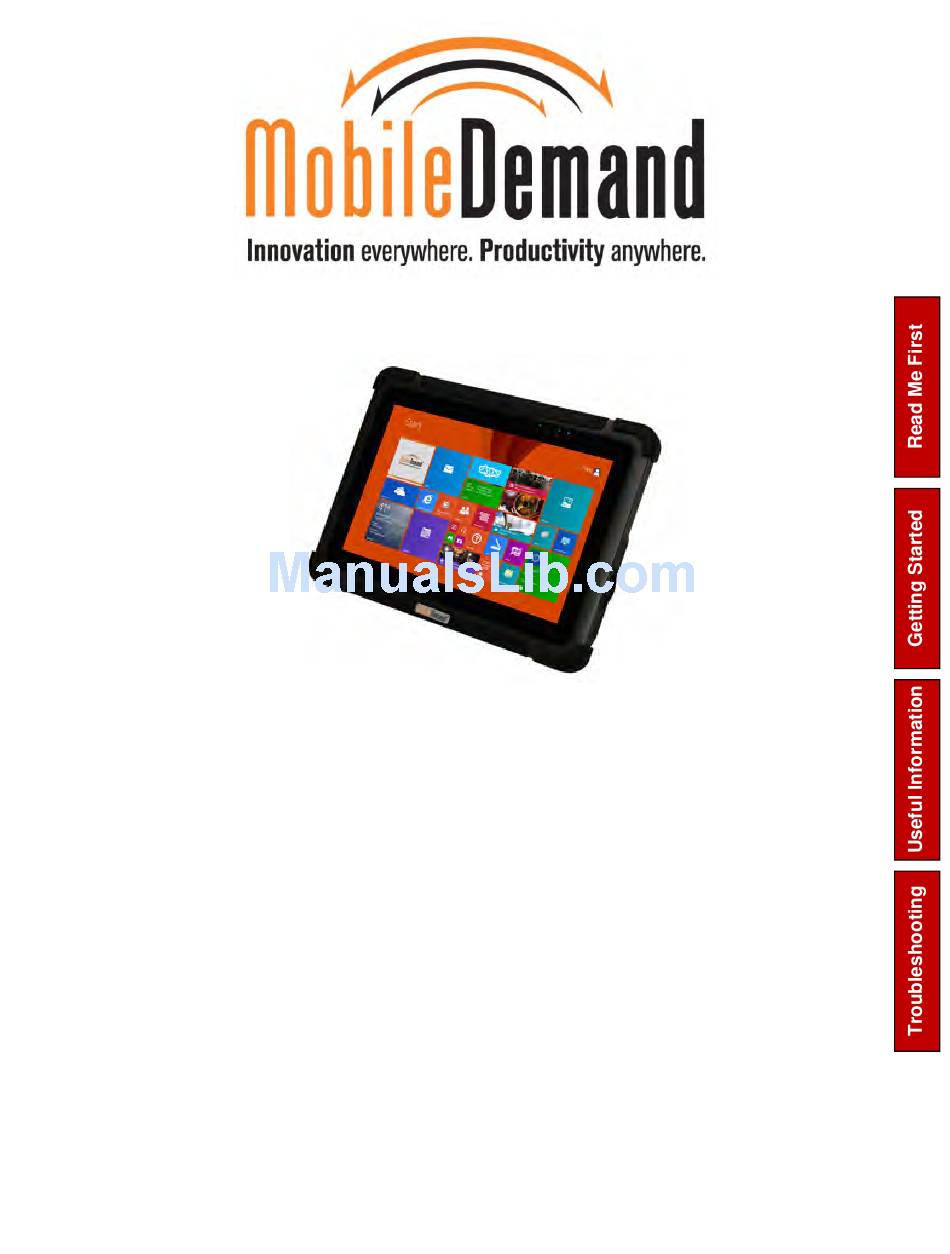

- Page 1 MobileDemand xTablet T1400 Rugged Tablet User’s Guide Please read these instructions carefully before using this product, and save this manual for future use.
- Page 2 Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners. The publisher and the author make no claim to these trademarks. MobileDemand is a registered trademark of MobileDemand, LC. MobileDemand logos are registered trademarks of MobileDemand, LC.
-
Page 3: Table Of Contents
Description Of Parts First-time Operation Turning On / Off Chapter 3: Useful Information HotTab Operation Hot Swapping Batteries Barcode Scanner (Code Type Selection) High Resolution Screen Scaling and Setting Accessories Chapter 4: Troubleshooting Troubleshooting (Basic) Contact information xTablet T1400 User Guide... -
Page 4: Chapter 1: Read Me First
When the Battery Pack Has Deteriorated, Replace It with a New Battery. Continued Use only accessories specified by the use of a damaged battery pack may result manufacturer. in heat generation, ignition or battery rupture. xTablet T1400 User Guide... -
Page 5: Handling And Maintenance
Do not use excessive force on the display. Do not place heavy objects on top of the Avoid placing objects on top of the display xTablet T1400 as this may damage the as this may cause the glass to break. display. -
Page 6: Regulatory And Safety Statements
No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice. xTablet T1400 User Guide... -
Page 7: Chapter 2: Getting Started
Chapter 2: Getting Started Congratulations on purchasing the xTablet T1400. The rugged design allows you to use it in harsh outdoor environments. This chapter tells you step by step how to get the computer up and running. You will find instructions for the following procedures: •... -
Page 8: Description Of Parts
Front Camera 2 Megapixel Webcam I/O Cover Protects I/O ports Show the current status Micro HDMI HDMI output to Indicators: of the xTablet T1400 external HDMI display Green - LAN/RS232 Adapter port for WiFi/BT/3G/GPS ON LAN/RS232 No light - WiFi/... - Page 9 Front LED Indicators Detail: Front Buttons Details: xTablet T1400 User Guide...
- Page 10 Release Slider latches the battery in. Touch Pen Pen holder slot to store Slot touch pen Service window to insert Module/SIM Micro SIM card. Also card slot provide access to 3G Module. Speakers Audio and audible alerts. xTablet T1400 User Guide...
-
Page 11: First-Time Operation
First-time Operation Insert SIM card (For Optional 3G/LTE equipped device) The xTablet T1400 supports data connection using 3G/LTE SIM cards and fits Micro-SIM card. (Note: 3G/LTE feature is optional). Perform the following to install the SIM card to your xTablet T1400: 1. - Page 12 Battery Release Slider. The edges of the battery will be flat against the housing once fully inserted Removing the Battery Pack 1. Shut down the xTablet T1400 (or put it to sleep). Disconnect any cords connected to the computer. 2. Turn the xTablet T1400 over, back facing up.
- Page 13 The xTablet T1400 operates either on external AC power or internal battery power. It is recommended to use AC power (for at least 6 hours) when you start up the xTablet T1400 for the first time in order to fully charge the battery.
-
Page 14: Turning On / Off
Touching the tablet buttons, screen, or external keyboard/mouse Turning Off Perform the following procedure to shut down the xTablet T1400: 1. Make sure you have closed any programs that are open on the Desktop. Start Screen apps don’t need to be closed. -
Page 15: Chapter 3: Useful Information
There are 4 main menu options: Short cut, Camera, Device and Settings. Operations and functions on each menu options is explained in detail in the coming section. Hot-Tab Utility User Interface: xTablet T1400 User Guide... - Page 16 This Hot-Tab menu option allows users take a picture or record a video. Before use, make sure the Camera is turned on under Devices menu option. The Camera user interface will take up the entire screen as shown below: xTablet T1400 User Guide...
- Page 17 Camera Shutter Button. Tap to take picture. (automatically switch base on Video Record Button. Tap to Start, and press again to stop mode) recording. Open Saved Opens the location where pictures and videos are saved in Location a window. xTablet T1400 User Guide...
- Page 18 Device This Hot-Tab menu option enables/disables xTablet T1400’s hardware functions: Item Status Color Description Orange Wi-Fi is enabled. White Wi-Fi is disabled. Orange WWAN (3G/4G) is enabled. White WWAN (3G/4G) is disabled. Orange GPS is enabled. White GPS is disabled.
-
Page 19: Battery Information
Backup battery level is low, and hot swapping is not recommended. Battery Charge Time: The Battery Information also displays estimated time needed to fully charge the main battery when AC adapter is plugged xTablet T1400 User Guide... - Page 20 Power supply to different components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time. Your xTablet T1400 comes with the Hot-Tab power management scheme which has pre- defined power options for you to select.
- Page 21 2. Navigate to the desired executable to map to function key 3. Tap on “Done” to save selection. To map the function key to another application: 4. Tap on the icon to remove connection to the original application, and pick again tapping on icon. xTablet T1400 User Guide...
-
Page 22: Hot Swapping Batteries 199
Hot Swapping Batteries The xTablet T1400 supports hot-swapping of batteries, meaning the tablet doesn’t need to be powered off in order to replace the main battery. To support such a mechanism, there is a backup battery inside the tablet that is charged up with the main battery. This backup battery cannot be removed, and needs to have adequate power for hot swapping of main battery to be done without issue. -
Page 23: Barcode Scanner (Code Type Selection)
Barcode Scanner Configuration (Code Type Selection) The xTablet T1400 is optionally equipped with a barcode scanner, this section of user manual explains how the barcode scanner can be configured differently via software (Intermec EasySet) to read different barcode types and to improve reading speed and reading of poor quality barcodes. - Page 24 “ OK ” as shown in the screen capture below: 7. Another “ Device Selection ” on-screen prompt will show up. Select “ Communications Port (COM15) ” and select “ OK ” as shown in the screen capture below: xTablet T1400 User Guide...
- Page 25 13. Once all the code types of interest are configured, close the “ EasySet ” application to finish barcode scanner configuration. Note: For more information on how to use the “ EasySet ” application, please refer to the complete EasySet User Manual from Intermec: http://intermec.custhelp.com/app/answers/detail/a_id/5760 xTablet T1400 User Guide...
-
Page 26: High Resolution Screen Scaling And Setting
Note: • xTablet T1400 is shipped with display scaling set at Larger - 150% . We recommend the users set the scaling to this setting for optimal text and image viewing. - Page 27 3. A “ Display ” window will show up. Under “ Change the size of all items ” section, change the scaling option to “ Larger – 150% ” or any other desired display scaling and hit “ Apply ” to save changes, as shown below: xTablet T1400 User Guide...
- Page 28 1. Tap and hold anywhere on the desktop for 3 seconds and release to bring up the context menu, and select “ Screen resolution ” option as shown below: xTablet T1400 User Guide...
- Page 29 If the new resolution is not desirable, hit “ Revert ” and select a different resolution to change to, and start again from step 2. 5. The user may now use the device with the new resolution setting. xTablet T1400 User Guide...
-
Page 30: Accessories
Accessories The xTablet T1400 offers the following optional accessories that can be purchased: Gigabit Ethernet Adapter RS232 Ethernet Adapter • For LAN from 30-pin extension port • For RS232 from 30-pin extension port • Length; 10 cm • Length:10 cm •... -
Page 31: Chapter 4: Troubleshooting
Nothing appears on the screen. • The xTablet T1400 may be in sleep mode. Press the power button to wake up the display. • The brightness level may be too low. - Page 32 • Make sure that GPS receiver and the location sensor are enabled in Control Panel. • The xTablet T1400 may be out of coverage area. Move your xTablet T1400 outdoors or closer to a window. • Check if your surroundings have interferences, such as microwave ovens, cordless phones.
- Page 33 MobileDemand 1501 Boyson Square Drive Suite 101 Hiawatha, Iowa 52233 Web Site: http://www.ruggedtabletpc.com Sales: 319-363-4121 Service: 1-855-501-TECH (8324)
