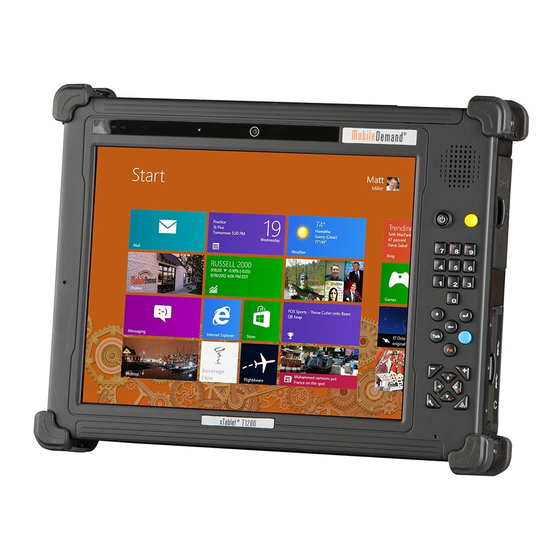

MobileDemand T1200 Quick Start Manual

CAUTION: Save all packaging should you have to transport the T1200 in
the future or you will void any MobileDemand warranties.
Contents – xTablet T1200 Kit
After opening the kit, carefully inspect its contents for any missing or damaged
items. Contact your dealer if any found or for more information about other items
that may be included. The kit should contain the following:
®
One xTablet T1200 One AC/DC power supply
with hard disk drive with power
cord
Auto adapter with xTablet T1200 User's
power cord (optional) Guide and Driver CD
(installed in main disk)
Note: See the xTablet T1200 User's Guide (installed in the main disk) for
information about features included with the xTablet T1200.
Before You Begin
(Optional) You can grasp a corner of the film and gently pull the top thin
•
layer off the display.
Corner of film to pull off the display (circled in illustration).
(Optional) You can use the stylus (touch pen) like a mouse, a pen, or your
•
finger on the xTablet T1200 display to perform regular left-click and right-
click functions and to write in applications where applicable. When you are
not using the stylus, you should store the stylus in the stylus holder that is on
the right side of the xTablet T1200.
To perform a right-click function
Point and hold the stylus steadily on the display for about 3 to 5 seconds,
wait for the cursor to change to a circle, then lift the stylus away
from the display and the appropriate right click menu will show up. Note that
you can also perform this function using your finger.
Stylus pen with cord wrapped around upper end.
1
Calibrating the Touch Screen
The touch screen is a thin membrane on the top of the display that responds to
mechanical pressure on the screen's surface. The cursor on the screen is
controlled by the stylus or your fingertip. If you notice the tip touch-point is not
matching up with the cursor, you can calibrate the touch screen.
Note: See "Calibrate the Screen" in the xTablet T1200 User's Guide for more
information.
Two high-capacity Lithium
To calibrate your touch screen
Ion batteries
1. Select Start > Control Panel > Tablet PC Settings, then tap Calibrate to
activate the calibration.
2. Hold the pen and position your stylus as you normally do when working with
the xTablet T1200.
3. Use the pen tip to click on the center of the crosshairs. The wheel moves to
another location onscreen. Repeat this step until you have gone through all of
the crosshairs.
Hand straps for the back
and for the side.
4. Tap Yes to accept the calibration.
5. Tap OK to close the Tablet PC Settings.
Adjusting the Brightness
Use the following hot key combinations to adjust the brightness of the display:
Press +
Press +
Note: See "Function Keys" in the xTablet T1200 User's Guide for more
information.
Monitoring the Battery Power
Note: See "Monitoring the Battery Power" in the xTablet T1200 User's Guide for
detailed information.
You can check the remaining battery power in the Power icon located at the
lower right-hand corner of the task tray. The Power icon only appears in the
taskbar while the unit is running on the battery power but not while the unit is
running off an external power source through the AC adapter.
To view the available battery power
Tap the Power icon on the taskbar to view the available power for each
•
battery.
Note: If you do not see the Power icon in the taskbar, select Start > Control
Panel > Notification Area Icons, select the Show icon and notifications
behavior from the Power drop-down list, then tap OK.
- darkens the display
- lightens the display
2
1. Earphone Jack – Connect to
external speakers or
headphones
2. USB 3.0 Ports – Connect to USB
peripheral devices
3. PC Card Slot – Use to insert
Type II PC Card
4. SIM Card Slot – Not Applicable
5. SDHC Card Reader – Use to
insert SD memory card
6. Smart Card Reader – Use to
insert smart cards
1. Earphone Jack – Connect to
external speakers or headphones
2. USB 3.0 Ports – Connect to USB
peripheral devices
3. PC Card Slot – Use to insert Type II
PC Card
4. SIM Card Slot – Not Applicable
3 (Over)
Charging the Battery Packs
