Summary of Contents for MobileDemand T1150

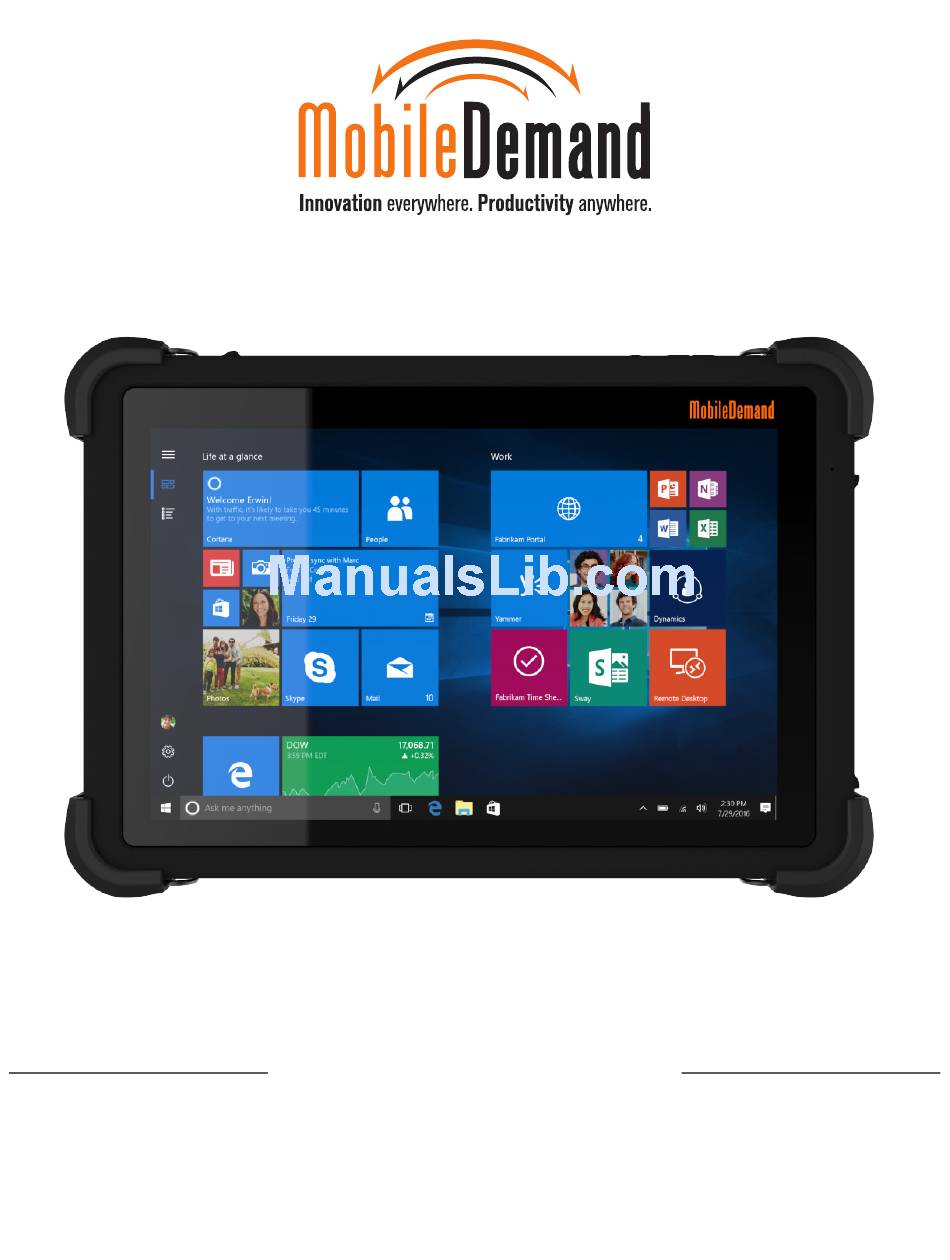

- Page 1 T1150 USER GUIDE...
- Page 2 Copyright Notice © 2018 MobileDemand, L.C. | 1501 Boyson Square Drive, Suite 101, Hiawatha, IA 52233 | 319.363.4121 All Rights Reserved. | Legal No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
-
Page 3: Table Of Contents
Using Custom Applications U-blox GPS One-Dimensional Codes Two-Dimensional Codes Fingerprint Scanning Using Accessories with the xTablet T1150 xTablet T1150 2D Barcode Scanner xTablet T1150 1D Barcode Scanner Specifications for the xTablet T1150 FCC RF Radiation Exposure and SAR Statements CE Conformity... -
Page 4: Before You Begin
Overview The rugged xTablet T1150 comes standard with 4GB of RAM and 64GB of storage backed by an Intel® Atom Quad Core X5-Z8550 processor and secure, enterprise-ready Windows 10 OS. System expansion ports include multiple USB, microHDMI, headphone, DC jack, microSDXC, and microSIM card slot. -
Page 5: Introduction
INTRODUCTION Congratulations on becoming a user of the xTablet T1150. We are proud to say the T1150 is thoroughly tested and certified for unsurpassed dependability and customer satisfaction. Use the following illustrations and descriptions to become more familiar with your T1150. -
Page 6: Top View - Display Facing Down
The Honeywell N3680 scans different barcodes – may or may not be included in your purchase. • 3 - Power Button Connect the xTablet to AC power before turning on the T1150 the first time. • Press and hold this button for at least four seconds to power down the unit. -
Page 7: Left View - Display Facing Down
5 – Reset Hole If you cannot power down the T1150 using normal means or do not get a response when you press the power button, insert a straightened paperclip in this hole to reset the unit. -
Page 8: Back View
Can be a fingerprint scanner or an LTE card slot, depending on your purchase. Fingerprint Scanner – Allows user access into the T1150 via finger touch. 4G LTE High-Speed Wireless – Access the Internet where cellular carriers are available – some restrictions apply. -
Page 9: Maintaining
• Avoid any corrosion and humidity damage. • If you need to clean the T1150, use a dry soft cloth or a tissue wipe. You can use mild liquid cleansers such as Windex or Formula 409. Avoid getting liquid into connectors. -
Page 10: Recycling The Battery
Note: Do not charge the battery when temperatures fall below 0°C or above 45°C (below 32°F or above 113°F), it may cause safety issues. Turning on the xTablet T1150 Press and hold the power button on the top of the T1150 for at least 4 seconds to power on the unit. -
Page 11: Using Software Apps
USING SOFTWARE APPS MobileDemand has evolved to be more than just a rugged tablet provider. MobileDemand now offers productivity apps with several more in the pipeline. Stay tuned for exciting new Windows app and software innovations. You can download apps from the Windows Store: www.ruggedtabletpc.com/apps... -
Page 12: Including T1150 Applications In Start
Including T1150 Applications in Start Aside from default applications in the Start Screen, you can use other applications designed for use with the xTablet T1150. You can even add them to your Start Screen. To include other applications with the Start Screen tiles •... -
Page 13: Using The System Tray
At the bottom of the Functions panel are a number of functions you will use on a regular basis. They include functions like the following: Tap this, then tap any of the options to put the T1150 in sleep mode (Sleep), turn off the unit (Shut down), or power down, then restart the T1150 like a hard reboot (Restart). -
Page 14: Using Custom Applications
USING SOFTWARE APPS Using Custom Applications There are several applications customized to function with the scanner and other features built into the xTablet T1150. U-blox GPS Once you enable this application, you can use your T1150 as your GPS driving guide. -
Page 15: One-Dimensional Codes
USING SOFTWARE APPS One-Dimensional Codes Using the Serial Port Utility (SPU) assistant, you will be able to work with any 1D code. To install and operate the Serial Port Utility assistant • Tap the Start button in the lower left side of the system tray, then double-tap the SPU image to start the installation. -
Page 16: Fingerprint Scanning
AS602020 Host Program shortcut image on the desktop • In the Serial Port Utility, do the following, then tap Connect for the T1150 to find the scan pad. • Under Communication Information, select Serial, then a serial port from the COM Port drop-down. -
Page 17: Xtablet T1150 2D Barcode Scanner
USING ACCESSORIES www. You can order any of the following accessories for use with the xTablet T1150 online under Related Products: ruggedtabletpc.com/products/xtablet-t1150 xTablet T1150 2D Barcode Scanner Fully integrated into the tablet itself, the 2D imager / barcode scanner features: •... -
Page 18: Specifications For The Xtablet T1150
SPECIFICATIONS Physical and Environmental Characteristics Dimension 11.16” W x 7.56” H x .87” D (283.4 mm W x 192 mm H x 22.2 mm D) Display 10.1 diagonal widescreen; 1920 (W) x 1200 (H); 10-pt Projected Capacitive Touch; 470 nits (optional) Digitizer option;... -
Page 19: Fcc Rf Radiation Exposure And Sar Statements
FCC RF Radiation Exposure and SAR Statements SAR Statement The xTablet T1150 was tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC has established detailed SAR requirements and has established that these requirements must be met. RF Exposure Information The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency... -
Page 20: Safety Instructions
Place the power cord where people will not step on it and do not put anything on the power cord itself Always keep strong magnetic or electrical objects away from the T1150 Never pour liquid into any of the openings as it may damage the unit or cause electrical shock Should any of the following situations occur, have a service personnel check the unit: •...
