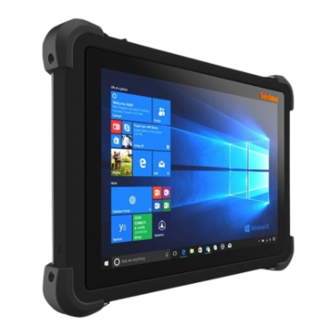

Introductions Congratulations on becoming an user of this product, the finely designed Tablet PC. You will have a delightful and professional experience in using this exquisite Tablet PC. We are proud to tell users that this Tablet PC is thoroughly tested and certified by our reputation for unsurpassed dependability and customer satisfaction.
User's Manual Product Overview This section provides the description of basic aspects of the Tablet PC. It will help you to know more about the appearance of this tablet before using it. Please be aware that the figures shown here are for reference only. Open View The figure of open view and description shown below will lead you to browse the main operating area of your Tablet PC.
Page 12
Introductions Status LED Power • Green OFF: Power off(S5)/Hibernation(S4)/charging • Green ON: Power on(S0) while not charging • Breathing Green: Standby(S0iX)/Sleep(S3) while not charging Battery • Orange OFF: Battery is fully charged or not charging • Orange ON: Battery is charging while system ON and OFF • Blinking Orange (1Hz): Battery is charging while system Standby(S0iX)/Sleep(S3) • Blinking Orange (4Hz): Battery error.
User's Manual Top Side View Headphone Jack Used for connecting the speakers or headphones. Barcode Scanner (optional) Easy handheld device for tracking goods from production to loading in the warehouse to ensure shipping and Real-time order status. Power Button Power Button • Before powering on the Tablet PC for the very first time, you must connect it with AC power.
Page 15
User's Manual Micro HDMI Port Micro HDMI (High-Definition Multimedia Interface) technology is the industry-leading interface and de-facto standard connecting high-definition (HD) equipment. USB 3.0 Port USB 3.0, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.
User's Manual Rear Side View The figure of open view and description shown below will lead you to browse the main operating area of theTablet PC.
Page 18
Introductions Battery Latch To lock/unlock battery. LTE Card Slot (optional) To surf Internet with LTE high-speed wireless communication. Speaker Support high quality sound. Finger print (optional) To access the tablet authority by scanning users’ fingerprint. Battery Status Button Battery Status LED F1 Function Support default Barcode Scanner function.
User's Manual Bottom Side View Dock Connector Connect with external Docking Station to increase more I/O functions. Boss Hole Used for locking the boss hole of the dock. 2-11...
Introductions Specifications The specifications listed here is reference only, and may change without notice. The actual products sold are different from areas. Physical Characteristic Dimension 283.4 (W) x 21.9 (D) x 192.0 (H) mm Weight 1470 g ® Supported Processor Intel Duel Core Processor Processor Type...
Page 21
User's Manual Communication Port Wireless LAN Supported Bluetooth Supported The operations of WiFi 5G in the 5.15-5.25GHz band are Note restricted to indoor usage only. Display LCD Type 10.1" IPS display Resolution 1200X1920 Multi Touch 10-Point Touch Supported Brightness Brightness controlled by setting Video Graphics Webcam...
Getting Started Begin to Use the Tablet PC For a new user of this Tablet PC, we would like to suggest you follow the illustrations below to begin to use the Tablet PC.
User's Manual How to Manage Power Supply This section provides users basic safety precautions to take when using an AC/DC adapter and battery power properly. AC/DC Adapter Ensure that your notebook is connected to an AC power source via the AC adapter before turning it on for the first time.
Getting Started Battery This Tablet PC is equipped with a built-in high-capacity Lithium-ion Polymer battery pack. The rechargeable Lithium-ion Polymer battery pack is an internal power source of the Tablet. Be aware that this battery pack may be damaged if users try to disassemble the battery pack on their own.
