Quick Setup Guide

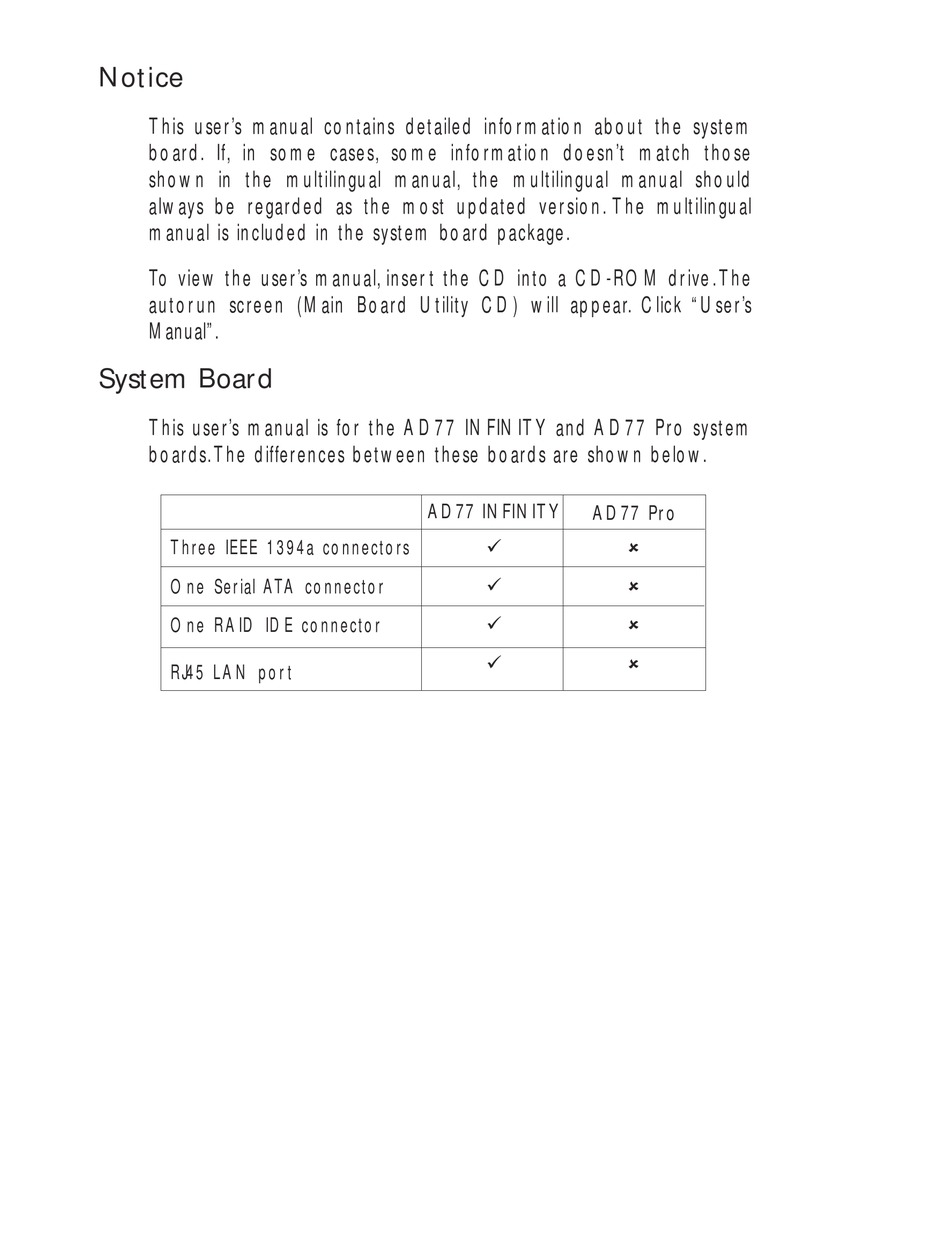

Notice
This user's manual contains detailed information about the system
board. If, in some cases, some information doesn't match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user's manual, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click "User's
Manual".

System Board

This user's manual is for the AD77 INFINITY and AD77 Pro system
boards. The differences between these boards are shown below.
Three IEEE 1394a connectors
One Serial ATA connector
One RAID IDE connector
RJ45 LAN port
4
AD77 INFINITY
AD77 Pro
"
"
"
"
!
!
!
!
