1.4.5 Universal Serial Bus Ports

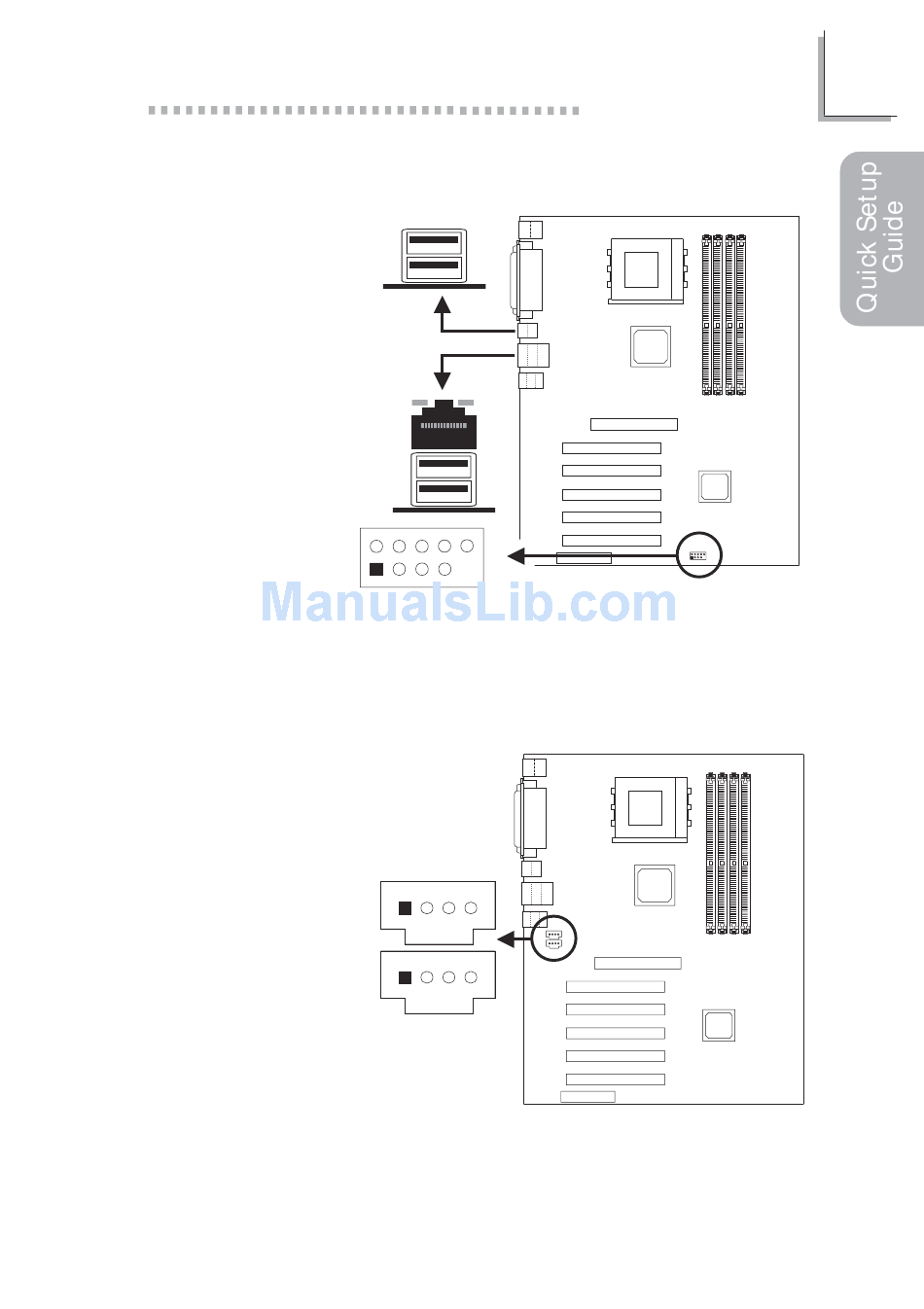

Additional USB Ports
(USB 5 and USB 6)
1 5V_Dul
2 5V_Dul
3 Data-
4 Date-
5 Data+
6 Data+
7 Ground
8 Ground
9 Key
10Ground
1.4.6 Internal Audio Connectors
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
AUX-in
CD-in
USB 2
USB 1
USB 4
USB 3
2
10
1 9
USB 5 and USB 6
(J23)
1 2 3 4
(J13)
(J12)
