Audio Codec - DFI AD77 INFINITY User Manual

1
Quick Setup Guide

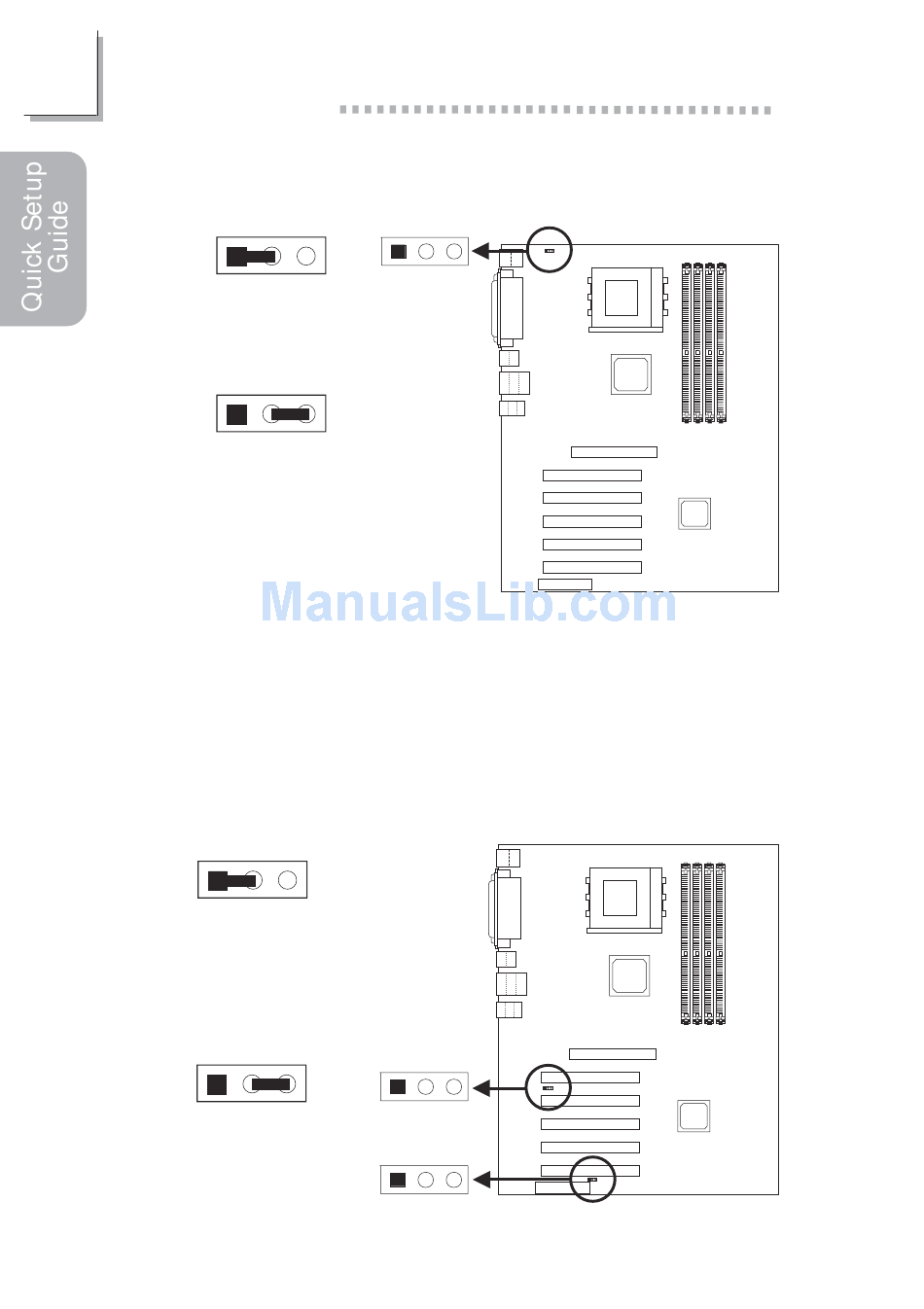

1.3.4 Power Select for PS/2 (JP1)
2-3 On: 5VSB
If you wish to use the Wake-On-PS/2 Keyboard/Mouse function, make
sure this jumper is set to "2-3 On". "PS2KB Wakeup Select", "PS2KB
Wakeup from S3/S4/S5" and "PS2MS Wakeup from S3/S4/S5" ("Wake
Up Events" field) in the Power Management Setup submenu of the BIOS
must be set accordingly.
1.3.5 Jumper Settings for the Onboard Audio Codec
1
Enable the Onboard

Audio Codec

1
Disable the Onboard
Audio Codec
12
1
1 2 3
PS/2 power
select (JP1)
1-2 On: 5V
(default)
1 2 3
2 3
1-2 On:
Audio codec
(default)
(JP5 and JP6)
2 3
1
JP5
2-3 On:
1
JP6
2 3
2 3
2 3
