1.2 Features and Benefits The Video server is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (D1, 720x480) at reasonable bandwidth through a standard TCP/IP network. That’s because it is Ethernet (LAN and WAN) ready and has the powerful ARM9 SoC and the MPEG-4 compression ASIC inside.
Page 7
The Video server provides two RJ-45 connectors. One is WAN and the other is LAN. The WAN port connects to the internet and LAN port connects to the local network. Since the internet’s bandwidth is very critical, the WAN port is equipped with a low latency PPPoE (Point-to-Point over Ethernet) which has excellent transmission speed and enables the Video server to connect to an ADSL or a cable modem.
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment . Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

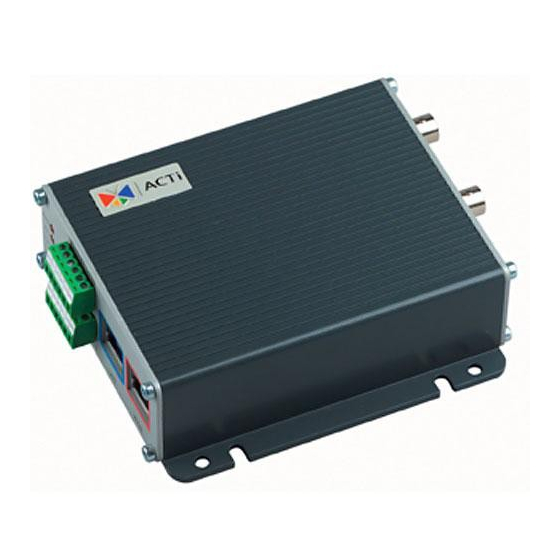

1.5 Physical Description Video Input / Outpu The video server supports one analog video input and output of composite signal with BNC connectors Audio Input / Output The video server supports one audio input and output with earphone jack Dip Switch for Serial Port RS-485 or RS-422 pin define (default is RS-485) RS-232 pin define Action LED Indicator...
Page 11
the Reset Button depressed. While continuing to hold the reset button depressed, reconnect the power cable. Step 3: Keep holding the reset button depressed around 6 seconds, release the reset button. The unit will start up with factory default settings. Terminal Blocks Pin 1~6 The video server supports two alarm input and two alarm output.
Page 12
Power Input (DC +12V) Ground Pin of Power Input & RS-232 LAN Port The Video server connects to the LAN (local area network) via a standard RJ45 connector. Supporting NWAY, this Video server can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
2.2 Basic Connections Follow the procedures below to connect the video server to the respective apparatuses. 1. Connect an analog monitor to video server video out (BNC connector). 2-10...
Page 15
2. Connect the power adaptor to video server 3. Connect the video server’s LAN port to an Ethernet (RJ45 connectors) 4. Connect a PC to the Ethernet hub (RJ45 connectors) Note: software installation please refers to Software User Manual. 2-11...
