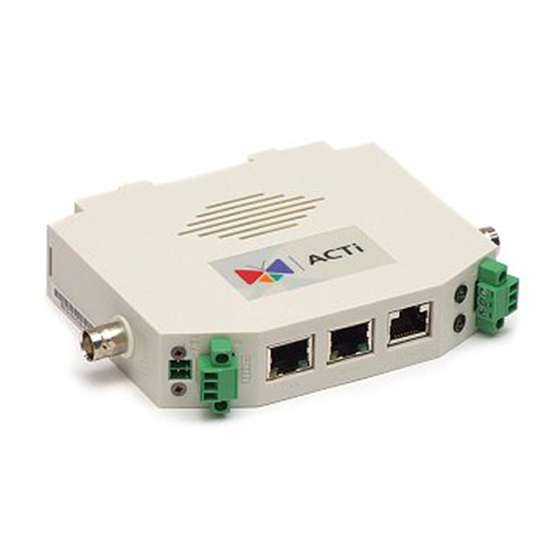

ACTi SED-2100R Quick Installation Manual
  1. Manuals
  2. Brands
  3. ACTi Manuals
  4. Server
  5. SED-2100R
  6. Quick installation manual

ACTi SED-2100R Quick Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Video Server
SED-2100R/S

Quick Installation Guide

Feb.10,2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SED-2100R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACTi SED-2100R

Summary of Contents for ACTi SED-2100R

  • Page 1: Quick Installation Guide

    Video Server SED-2100R/S Quick Installation Guide Feb.10,2006...

  • Page 2: Getting Started

    Getting Started PACKAGE CONTENTS SED-2100 Warranty Card Software CD Hook up & Screws Terminal Blocks for Power & DI/O Power Adaptor Bottom Pad...

  • Page 3: Physical Description

    1.2 PHYSICAL DESCRIPTION Read the following information to familiarize your self with the SED-2100, and make particular notes of where the connectors and LEDs are located. SED-2100 Front Panel ANALOG VIDEO IN 75Ω Composite Video Signal with BNC connector. DC POWER 12V 1.5A DC input.
  • Page 4 SED-2100 Rear Panel 1. Holes for Slide Hook 2. Screw Holes for Mounting Ears 3. Din Rail...
  • Page 5 Reset Button Switch off the SED-2100 by disconnecting the power cable Using a suitably pointed object, press and continue to hold the Reset Button depressed. While continuing to hold the Reset Button depressed, reconnect the power cable Keep holding the Reset Button depressed around 6 seconds, release the Reset Button.
  • Page 6 1.3 CONNECT NECESSARY CABLES The BNC cable for video input, Ethernet cable and power cable are necessary for previewing function. Make sure all cables are correctly and firmly connected. 1. Connect an analog video source (e.g. CCD Camera) to SED-2100 Video In (BNC connector) 2.

  • Page 7: Quick Tour

    Quick Tour This section guides you with a quick tour on ACTi SED-2100. 2.1 Configure Video Server 2.1.1 Make sure network environment Default IP of Video Server is 192.168.0.100. Please make sure SED-2100 and your PC are on the same network segment before running the installation.
  • Page 8 2.1.2 Open Internet Explorer with IP address If your web browser is earlier than IE6, then download IE6 is NOTE: recommended. SED-2100 default IP address is set to 192.168.0.100 NOTE: 2.1.3 Login with default administrator’s account & password Default administrator account is set to Admin, password is set to NOTE: 123456, and click button.
  • Page 9 2.1.4 Preview the video In your Client PC, please make sure the setting of Network NOTE: Connections Type is set to Auto Negotation, since SED-2100 follows MII standard. Otherwise, you might not see the live video.
  • Page 10 2.15 Set the new IP address *Host Name : Enter in the domain name, Default Host Name is ACTi. *Language : Language setting for Web Configurator after Save Reboot. Default setting is English. *IP Address : The IP address of the LAN interface. The default IP address is 192.168.0.100.
  • Page 11 2.1.6 Check Default Video Setting Please make sure the TV Input (NTSC / PAL) is meet your NOTE: requirement, and click button. 2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system reboot.

This manual is also suitable for:

Sed-2100s
