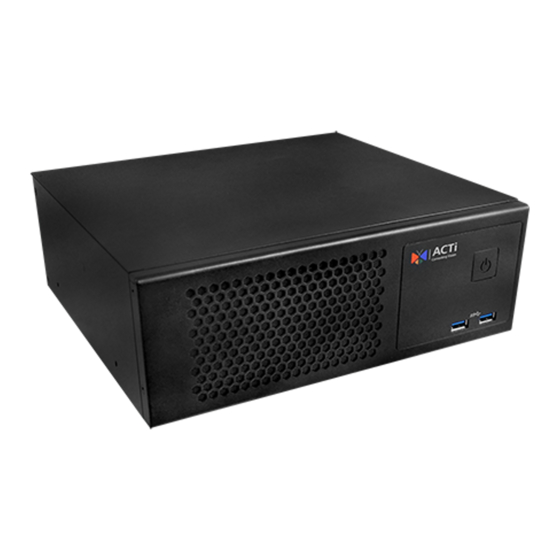

- Page 1 Quick Installation Guide CMS-100 800-Channel 1 Bay Mini Standalone CMS V180205...
-
Page 2: Before You Start
BEFORE YOU START Thank you for purchasing ACTi Standalone Central Management System (CMS). This guide contains all the information you need to quickly set up the device via local display interface. For detailed instructions on installation and operation, please search for the product manuals on http://www.acti.com/downloadcenter. -
Page 3: Front Panel
AT A GLANCE FRONT PANEL Power Button USB 3.0 Ports x 2 REAR PANEL Power Connector eSATA Connector Display Port HDMI Port LAN Ports x 2 USB 3.0 Ports x 4 COM Port x 2 DVI Connector for RS-232) Audio Input Audio Output Quick Installation Guide... -
Page 4: Connect The Devices
CONNECT THE DEVICES The example below displays a network with CMS and basic required peripherals to start using the device. Network Power Source USB Devices HDMI Monitor START UP 1. On the front panel, press the POWER BUTTON to turn on the INR. 2. -
Page 5: Create User Groups
LOGIN The CMS is equipped with the CMS2 workstation software. 1. On Windows Destop, double-click the CMS2 Workstation icon to enter the user interface. 2. Input the default account and password to log in. Account: admin Password: 123456 “123456” is the default password of the CMS administrator’s user account. -
Page 6: Add Users
3. Configure the user group Persmissions and click Apply. ADD USERS After creating user groups, create individual users. 1. On the left panel, click the Users title bar, click Add to start adding a new user. 2. Input the user’s Account, Password, Email address and select its User Group, and then click Apply. -
Page 7: Import Devices
ADD SOURCE 1. On the Setup page, click the Source tab. 2. Click Add Source. 3. Input the following: • Name: Name to identify the NVR • Host: IP address of the NVR source such as an NVR Server • Port: Port number of NVR • Password: Administrator’s password of the NVR 4. - Page 8 2. Select the devices to import. Number of allowed devices to be imported depends on the CMS license (contact a sales representative to purchase more license). 3. Click Apply. The configurations done on the NVR site will not be automatically synchronized with the CMS server. If the NVR administrator replaced some cameras which have been imported to the CMS server, the CMS site would lose the connections with the replaced cameras. Click the Synchronize button to sync CMS CONFIGURE THE DEVICES...
-
Page 9: Set Event Rules
SET EVENT RULES There are default Event Rules on the CMS. Once an event is detected on a device, the NVR client and CMS can both be notified at the same time. To enable the event rule, do the following: 1. On the Setup page, click the Event tab. 2. Select the device tab and then the device from the menu list on the left panel. 3. - Page 10 CUSTOMIZE LIVE VIEW 1. Click the View button to go to the Live View page. 2. From the Camera list, drag a channel to a layout window. Repeat this process to add other channels. Add new view Set as default view Layout styles Video Stream Save view...
- Page 11 PLAYBACK AND EXPORT VIDEO 1. Click the Playback button to go to the Playback page. 2. Select a view layout from the View List or drag a camera from the Camera list. Export Video Take Snapshot Bookmark Layout styles Apply a Preset View Watch all cameras Click on a view on an NVR...
-
Page 12: Warranty Card
Due to continuous product improvements, some contents may have changed from the time this documentation was printed. You can download the latest user documentation, which shall prevail over the printed version http://www.acti.com/downloadcenter provided in the package, from WARRANTY CARD This product is under warranty from the date of the original purchase (“Warranty Period”).
