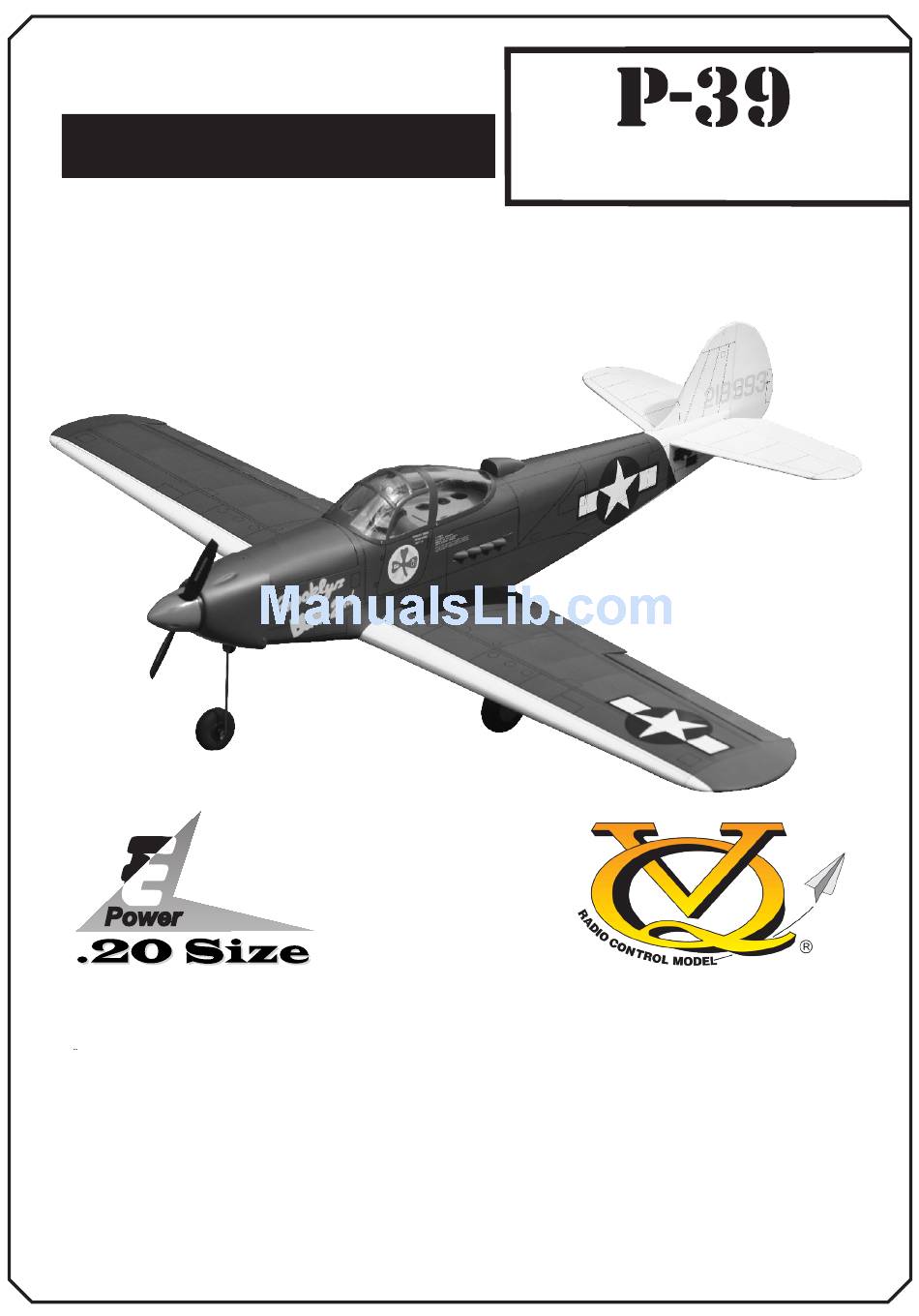

VQ Model P-39 AIRACOBRA Instruction Manual

Radio control model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Radio control model
R/C Flugmodell
INSTRUCTION MANUAL
MONTAGEANLEITUNG
Designed for brushless electric motors
Entwickelt für Brushless Elektro Motoren
TECHNISCHE DATEN
Spannweite
Lange
Elektroantrieb
(siehe nächste Seite)
Fernsteuerung
4 Kanal / 4 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
VQA113
SPECIFICATIONS
Wingspan
1200mm
Length
915mm
Electric Motor
Radio
AIRACOBRA
48in.
36in.
(See next page)
4 Channel / 4 Servos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-39 AIRACOBRA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VQ Model P-39 AIRACOBRA

Summary of Contents for VQ Model P-39 AIRACOBRA

  • Page 1 Radio control model R/C Flugmodell INSTRUCTION MANUAL AIRACOBRA MONTAGEANLEITUNG Designed for brushless electric motors Entwickelt für Brushless Elektro Motoren VQA113 SPECIFICATIONS TECHNISCHE DATEN Wingspan 48in. Spannweite 1200mm Length 36in. Lange 915mm Electric Motor (See next page) Elektroantrieb (siehe nächste Seite) Radio 4 Channel / 4 Servos Fernsteuerung...

  • Page 2: Recommended Accessories

    RECOMMENDED ACCESSORIES Empfohlenes Zubehör Antrieb Tuning (Kraftvoller Kunstflug): BOOST 25 Brushless Combo Set, No. C2981 LiPo Akku RED POWER 2200-3S, No. C2158 Propeller 10*5, No. C5749 4 - channel radio 4 - Kanal Fernsteuerung 4 x 20g mini servo Servo Extension cord : 30cm(x4) MASTER, No.
  • Page 3 1A-Cut away only the covering on the both sides (the rectangular hole) on the HORIZONTAL STABILIZER center of the horizontal stabilizer. Cut away only the covering 1B-Slide the horizontal stabilizer on the fuselage, check the alignment of the both the top and bottom side horizontal stabilizer with the fuselage (*).
  • Page 4 VERTICAL STABILIZER Cut away only the covering inside the line. 3A-Remove the vertical stabilizer from the fuselage, carefully cut away the covering inside the lines which were marked above. 3B-Realign the vertical stabilizer, then glue the vertical stabilizer into the fuselage, using a generous amount of thin CA.

  • Page 5: Fixed Gear

    SERVO The holes for the rudder servo are Pre-cut at factory.. Cut away only the covering Rudder servo installation: (6A or 13F) Rudder linkage FUSELAGE - BOTTOM VIEW FUSELAGE - BOTTOM VIEW push-rod Elevator linkage FUSELAGE - BOTTOM VIEW FIXED GEAR 7A-Using a ply gear mount plate as a template, mark the square plastic where the holes are to be drilled.

  • Page 6: Aileron Servo

    FIXED GEAR 3X12mm screw Ply gear mount WING - BOTTOM VIEW 8A-Using the ply gear mount as a template, trace around the outside edge of the ply gear mount, and then remove it. Using a sharp hobby knife, cut away the covering and balsa along the lines.

  • Page 7: Aileron Linkage

    AILERON LINKAGE Aileron linkage WING - BOTTOM VIEW MOTOR & NOSE GEAR 3X15mm FUSELAGE BOTTOM-VIEW NOSE GEAR RETRACT Nose gear push-rod Nose retract push-rod FUSELAGE BOTTOM-VIEW Nose gear servo Nose gear push-rod Rudder push-rod Nose gear retract Note: rudder push-rod include...
  • Page 8 2x8mm screw 6x50mm nylon bolt FUSELAGE TOP-VIEW FUSELAGE BOTTOM-VIEW Querruderausschlag Aileron / BALANCE & CONTROL SURFACE 15mm Rudder Hohenruderausschlag Seitenruderausschlag 15mm Elevator / 10mm 10mm 62~65 mm Uberprufen Sie vor dem Flug den Schwerpunkt. Do not try to fly an out-of balance model! IMPORTANT: Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade.
  • Page 9 40 Class 2-cycle engine 52 Class 4-cycle engine Or Electric equivalent BUILDING INSTRUCTIONS / MONTAGEANLEITUNG Semi scale model VQA09 / VQA091 RADIO CONTROLED ALMOST READY-TO-FLY ENGINE POWERED ALL BALSA PLANE SPECIFICATIONS Wingspan 1580mm Length 1160mm Flying weight 2500g Electric Motor 650 Watt Glow Engine 6,5cc 2T / 8,5cc 4-T...

  • Page 10: Optional Accessories

    OPTIONAL ACCESSORIES 10.5x6 for .40 - 2 cycle engine 11x6 for .46 - 2 cycle engine Extension for ailerons, flaps, 11X7 for .52 - 4 cycle engine elevators, rudder servo. 13X8 for Electric motor. Minimum 7 channel radio for airplane with 7 mini servos G-46 HP Motor Silicone tube .Motor control x1...

  • Page 11: Joining The Wing

    1- JOINING THE WING Nylon wing bolt Rubber band (both the top and bottom) Binder clip Center line Use epoxy glue to bury the opening 1- Using a pencil, mark the center of the brace. 2- Trial fit the wing joiner into one of the wing panels. It should insert smoothly up to the center line marked above. 3- Slide the other wing half onto the dihedral brace until the wing panel meet.

  • Page 12: Retract Servo

    4- LINKAGES WING - BOTTOM VIEW 3mm set Screw Aileron pushrod D=5/64”(2mm) 2 mm Do the same way with second wing half. 5- RETRACT SERVO TRAY Fahrwerk servohalterung Retract servo tray Retract servo mount Retract servo CENTER mount WING SECTION BOTTOM Retract servo tray installation Cut away only...
  • Page 13 7- LINKAGES RETRACTED EXTENDED EINGEFAHREN AUSGEFAHREN With the retract and retract servo in the retracted position, mark the position where each of the pushrod will attach to the servo arm, a small piece of masking tape works well for this. Cut off the excess length each rod.

  • Page 14: Gear Cover

    10- GEAR COVER Bottom view /Ansicht von unten plastic wheel well cover Plastic gear strap 2x6mm screw ..4 2x6 screw 4mm collar 50mm ...2 ..2 11- CANOPY HATCH 12- ENGINE MOUNT ! Align the mark on both mounts with the mark on the fuselage B’...

  • Page 15: Motor Mount

    13- ENGINE MOUNT 13/64” - Reposition the engine mounts on to the fire-wall - Remove the engine mounts and drill a 13/64”(5mm) hole and secure them with four 4x25mm screw through the fire-wall at each of the four marks marked. - Attach the four blind-nut to the fire-wall as show 1/8”...
  • Page 16 15- NOSE GEAR Plywood nose gear plate Plastic nose gear mount Insert the nose gear pushrod into the Attach the plastic nose gear mount Secure the plywood nose gear plate fuselage with the “Z” bend in front. to the plywood nose gear plate using in place using CA glue.

  • Page 17: Horizontal Stabilizer

    18- HORIZONTAL STABILIZER Cut away only the When you are satisfied with the alignment, covering use a pencil to trace around the top and both sides bottom of the stabilizer where it meets the fuselage. Note: use the thin CA glue only Glue inside the slot, where the horizontal stabilizer meet the fuselage.
  • Page 18 20- SERVOS AND LIKAGES Petroleum jelly Thin CA glue STABILIZER Hinge Apply a thin layer of machine oil or petroleum jelly to only the top and bottom of the trailing edge of the elevator, then push the elevator and its hinges into the hinge slots in the trailing edge of the horizontal stabilizer.

  • Page 19: Control Surface

    23- CANOPY HATCH 30x4mm nylon bolt ....2 Cut away only the covering 24- AERO GUN Aerogun Aerogun RIGHT Wing section Aerogun BOTTOM VIEW WRONG Wing section Aerogun 5/32” 25- CONTROL SURFACE RUDDER 1-23/64”(35 mm) 1-23/64”(35 mm) 15/64”( 15/64”( AILERON 13/32”(10mm) 13/32”(10mm) ELEVATOR T ake off 10mm (25/64”)
  • Page 20 VQA09 DECAL SHEET VQA091 VQA091 DECAL SHEET DECAL SHEET VQ MODEL / P-39Q/N VERSION 1 VQ MODELS. P-39 Q/N .46 SIZE Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner IMPORTANT: to clean on surface of your model to keep the colour not fade.
