Tally Dascom 1325

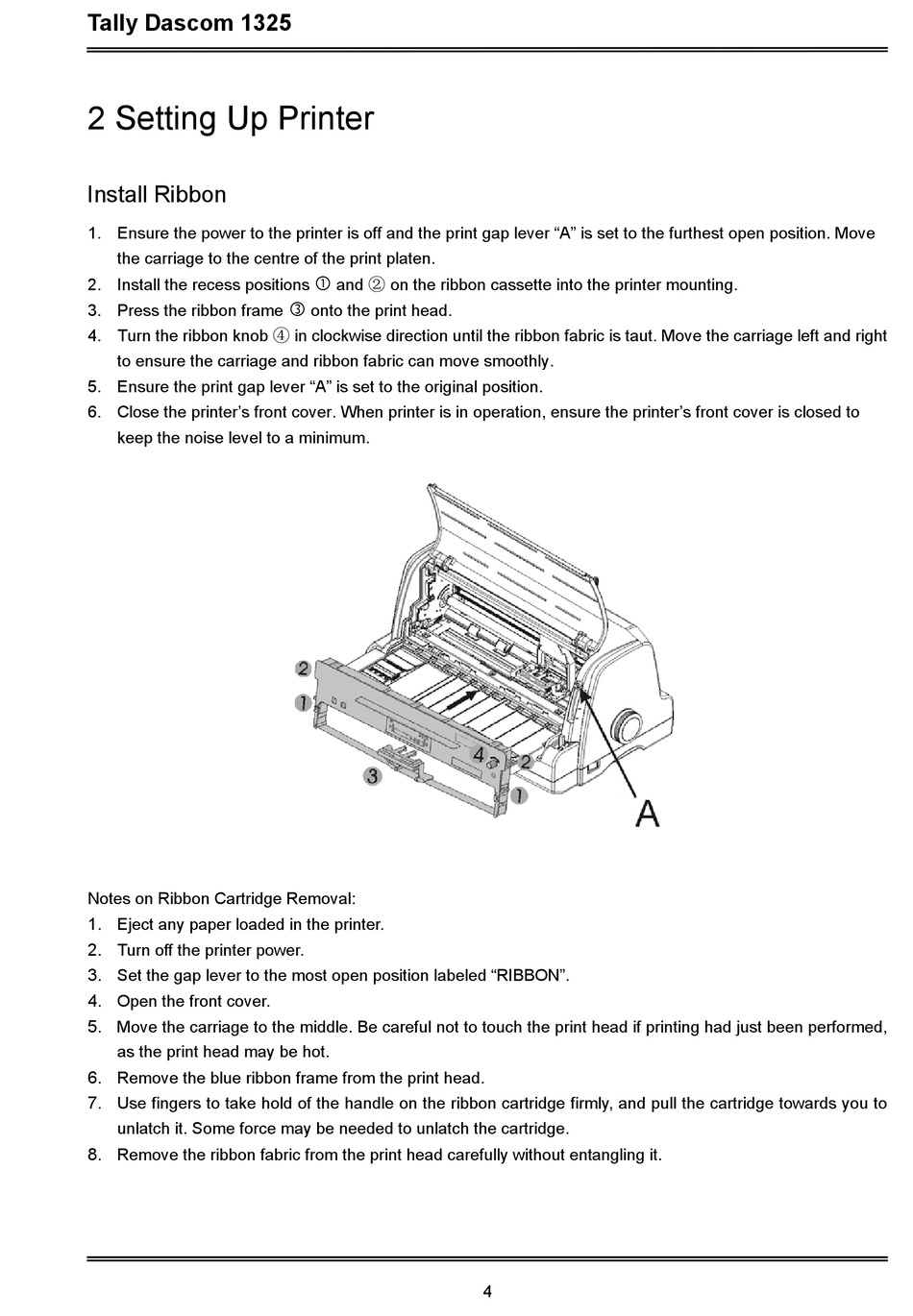

2 Setting Up Printer

Install Ribbon

1. Ensure the power to the printer is off and the print gap lever "A" is set to the furthest open position. Move
the carriage to the centre of the print platen.
2. Install the recess positions
3. Press the ribbon frame
4. Turn the ribbon knob ④ in clockwise direction until the ribbon fabric is taut. Move the carriage left and right
to ensure the carriage and ribbon fabric can move smoothly.
5. Ensure the print gap lever "A" is set to the original position.
6. Close the printer's front cover. When printer is in operation, ensure the printer's front cover is closed to
keep the noise level to a minimum.
Notes on Ribbon Cartridge Removal:
1. Eject any paper loaded in the printer.
2. Turn off the printer power.
3. Set the gap lever to the most open position labeled "RIBBON".
4. Open the front cover.
5. Move the carriage to the middle. Be careful not to touch the print head if printing had just been performed,
as the print head may be hot.
6. Remove the blue ribbon frame from the print head.
7. Use fingers to take hold of the handle on the ribbon cartridge firmly, and pull the cartridge towards you to
unlatch it. Some force may be needed to unlatch the cartridge.
8. Remove the ribbon fabric from the print head carefully without entangling it.

and ② on the ribbon cassette into the printer mounting.

onto the print head.
4
