7. Wing Fixings.

J
8. Propeller & Spinner.
7
Note: The plastic connectors are angled for
the wing camber.
1 x
1 x
3 x Screw M4 x 50mm
Tighten
Securely
L

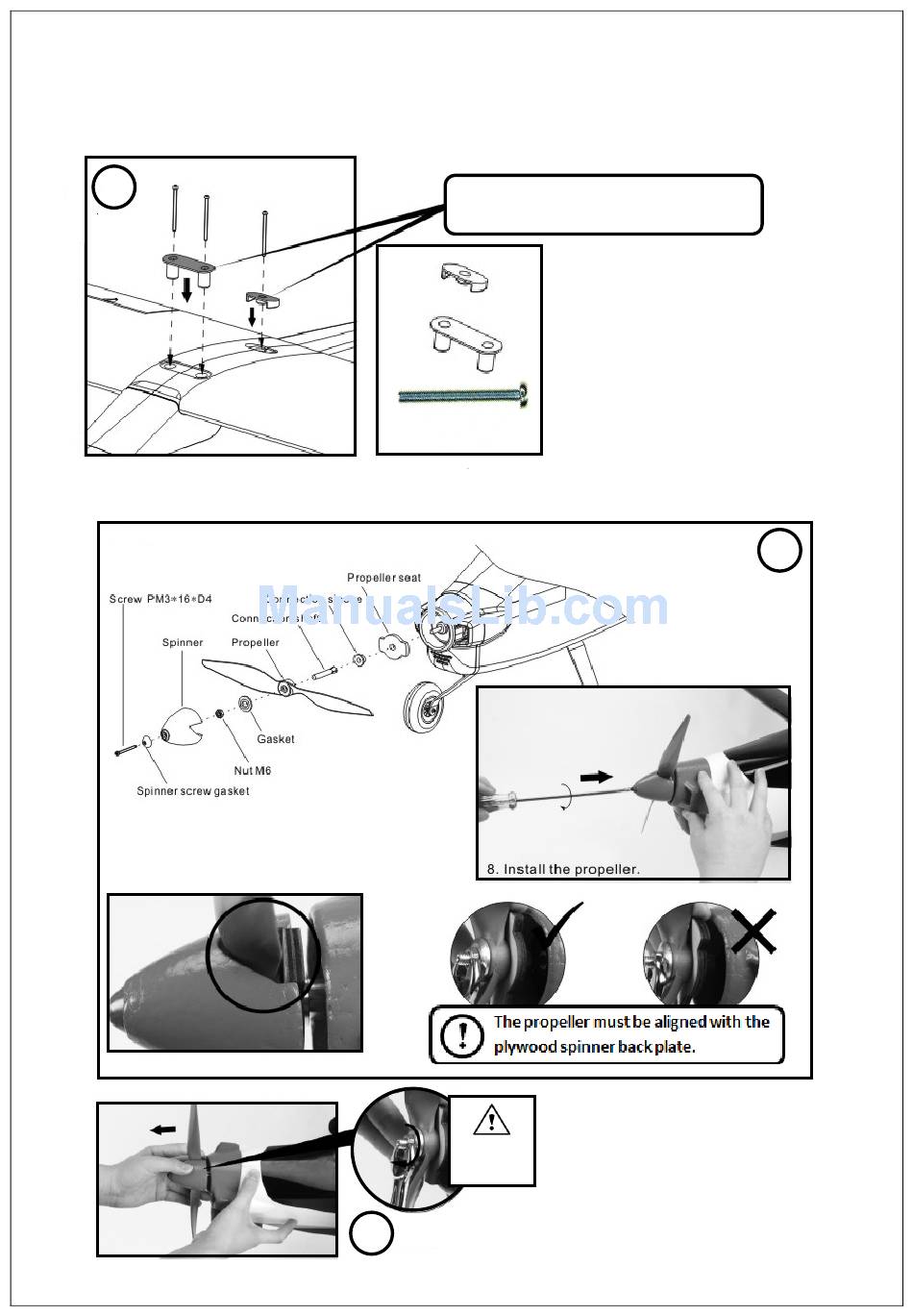

Insert the front and rear plastic
connectors into the wing, (image J).
They are angled to provide a perfect
fit. Make certain you have them
located correctly! The wing can now
be trial-fixed in position onto the
fuselage using the 3 x M4 x 50mm
screws provided.
Fit the propeller and spinner to
the motor as shown, (images K &
L).
Note: It is essential that the
propeller is securely fixed.
Failure to do so could result in
serious injury.
K
