4. Tail-Plane Fixing.

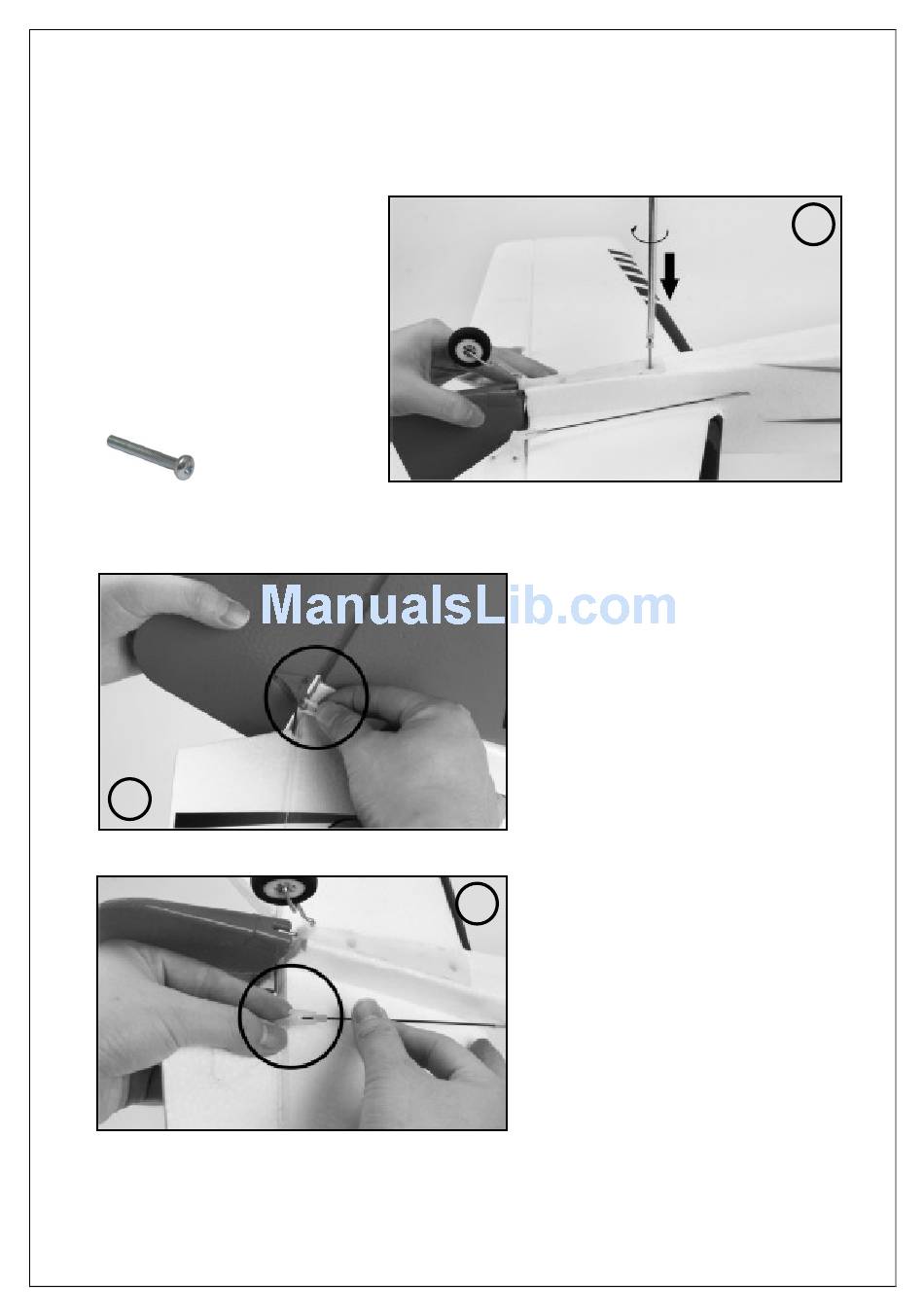

Fix the horizontal tail-plane and
vertical fin in position with the two
2.6 x 35mm screws provided, (image
D). The screws must be tightened
sufficiently to securely fix the parts
in position, however be careful not
to over-tighten the screws.
2 x Screw 2.6 x 35mm
E
5

5. Tail Control Horns.

Connect the rudder and elevator
snap-links to their respective control
horns as shown in images E & F.
Minor adjustment to obtain perfect
neutral positions of the control
surfaces can be achieved by rotating
the plastic link on the threaded
portion of the control push-rod.
F
Make certain the plastic link is
securely "snapped" closed when
connected to the control horn.
