Assembly Instructions

2. Horizontal Tail-Plane.

Slide the horizontal tail-plane into
the fuselage slot as shown, (image
B). Make certain that the holes in
the tail-plane line-up with the
corresponding fuselage holes.
If desired, a small amount of foam
glue can be used for maximum
security.
C
4

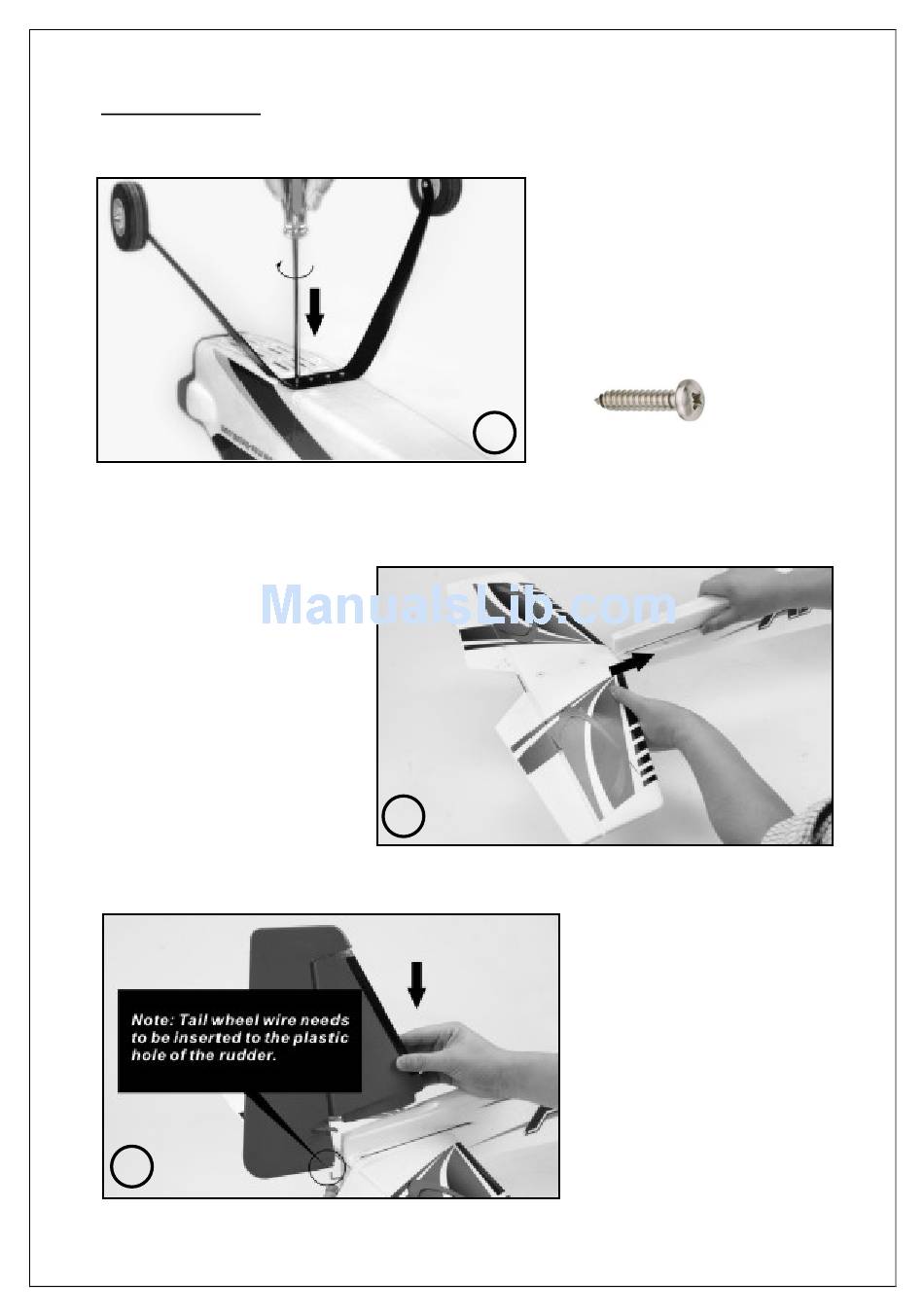

1. Undercarriage.

Fix the undercarriage in position
with the four 2.6 x 12mm self-
tapping screws as shown, (image A).
Note: The undercarriage legs are
angled towards the front of the
fuselage.
A
B
© Copyright Century UK Limited 2012 www.centuryuk.com
4 x Screw 2.6 x 12mm
3. Vertical Fin & Rudder.
Install the vertical fin and rudder
assembly into the slot in the
fuselage. Please make certain
that the tail-wheel control wire is
located correctly in the rudder
slot as shown, (image C).
If desired, a small amount of
foam glue can be used for
maximum security.
