6. Wing Assembly.

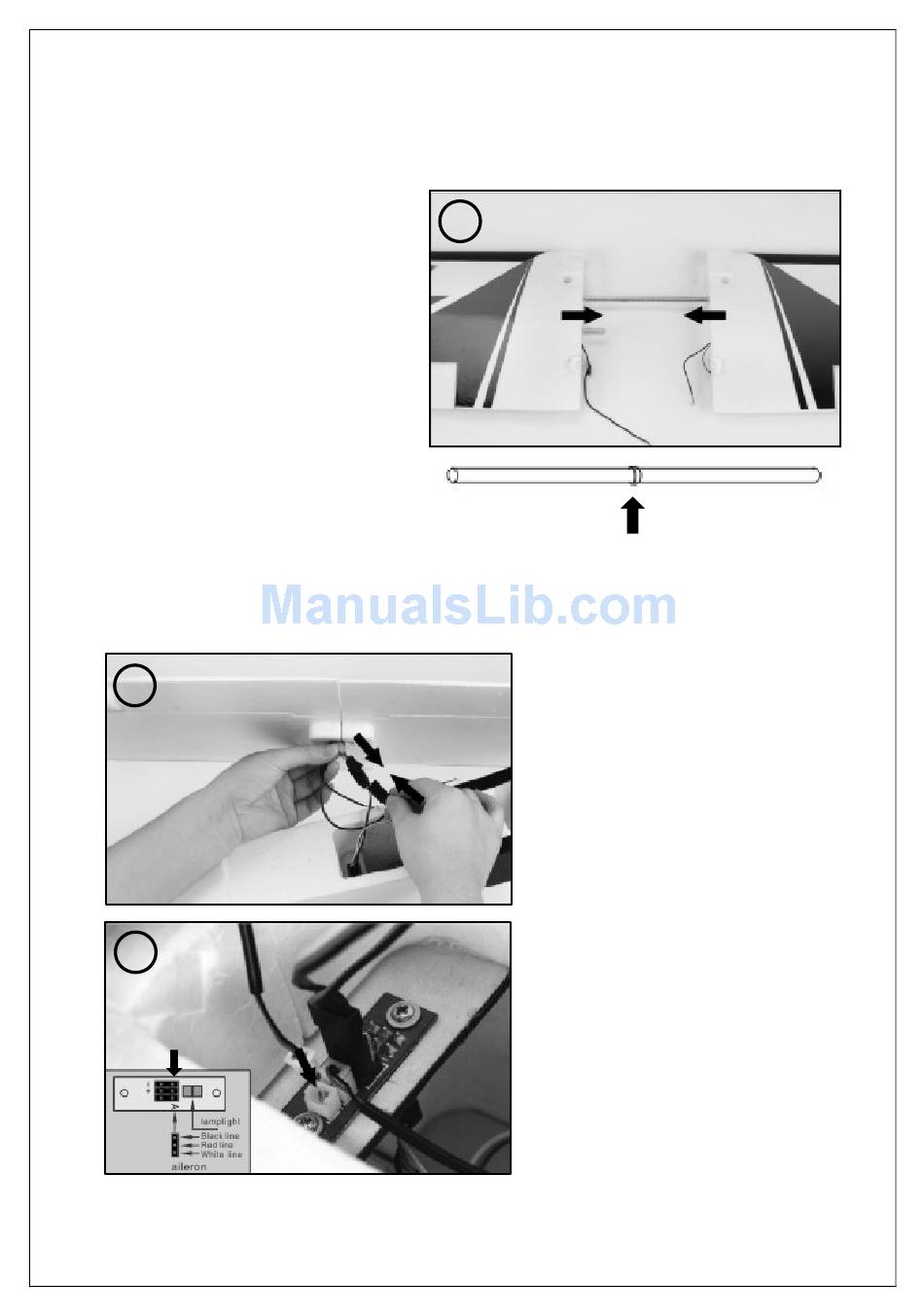

Locate the 500mm aluminium wing
joining spar and slide into the round
aperture of one wing panel up to the
centre locating collar. Locate the small
plywood wing locking plate and insert
into the rectangular aperture behind
the main wing spar, (image G). Slide the
remaining wing panel onto the exposed
portion of the aluminium spar. The
plywood locking plate will ensure
perfect alignment of the two wing
halves. Be certain that all wires are
routed correctly via the moulded slots
and do not foul the joint between the
wing roots. If desired, a small amount of
foam glue can be used for maximum
security.
H
I
Socket "A"
6
G
Plastic Collar
Connect the two black aileron servo
plugs from the wing to the "Y" lead
as shown, (image H). The remaining
plug from the "Y" connector should
be plugged into socket "A" of the
pre-installed circuit board located in
the fuselage, (image I). Please pay
particular attention to the polarity of
this connection as shown in the
diagram.
The two remaining white plugs from
the wing are for the model's built-in
LED lighting system and should be
connected to the corresponding
sockets on the circuit board, (image
I). You will note these plugs are
polarity protected to prevent
incorrect connection.
