Summary of Contents for marsden MPMS-300

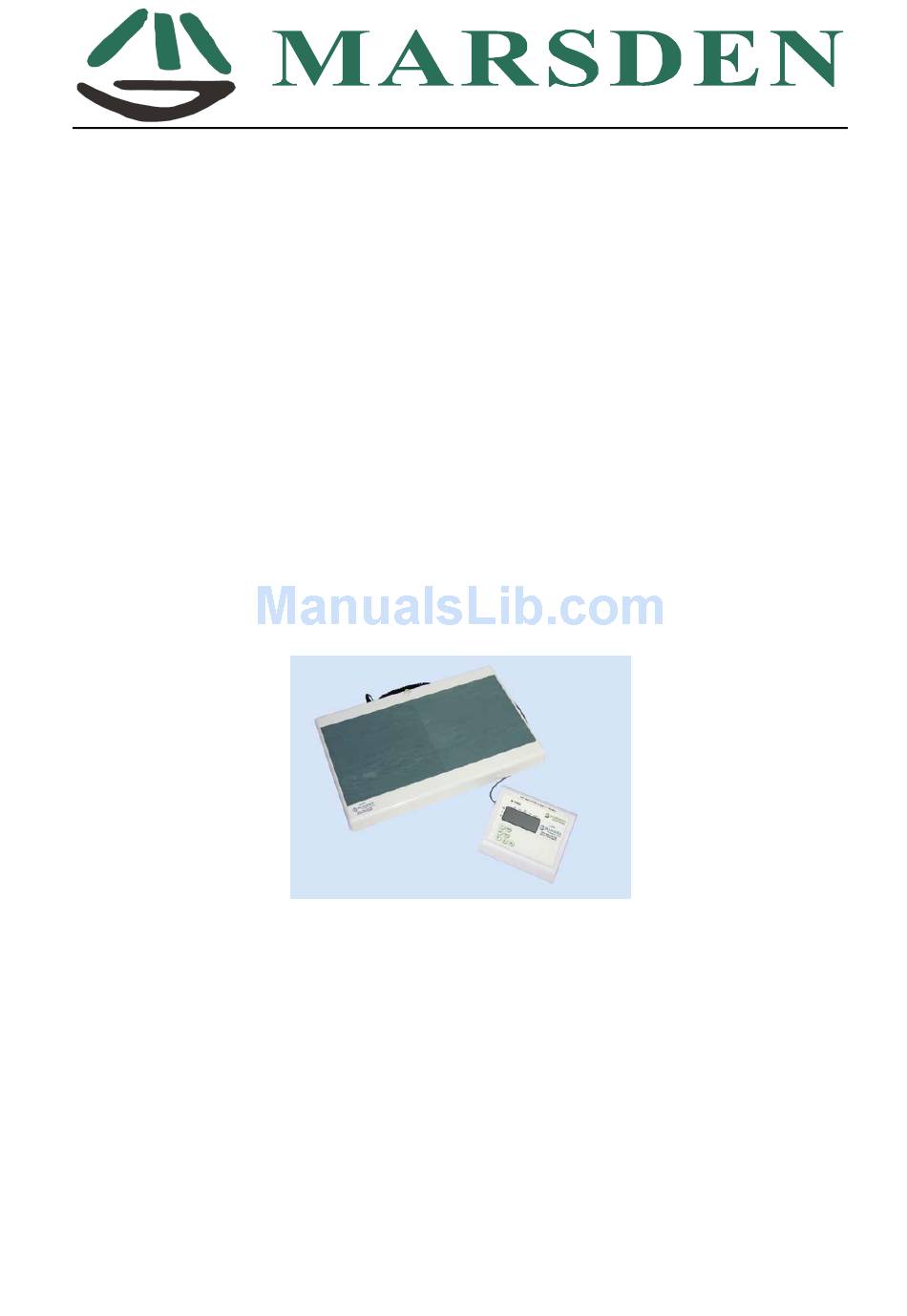

- Page 1 The Weighing Company OPERATION MANUAL MPMS-300/500 PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE STARTING TO USE THE SCALES...
-
Page 2: Table Of Contents
CONTENTS • PRODUCT SPECIFICATION • MAINTENANCE AND GENERAL CARE SECTION 1 – BASIC FUNCTIONS 1.1 – SWITCHING ON 1.2 – SWITCHING OFF 1.3 – SETTING ZERO 1.4 – UNIT SWITCHING SECTION 2 – ADVANCED FUNCTIONS 2.1 – HOLD FUNCTION 2.2 – SLOW FUNCTION 2.3 –... -
Page 3: Product Specification
PRODUCT SPECIFICATION MODEL MPMS-300/500 ACCURACY CLASS CLASS III CAPACITY 300/500kg INCREMENT 100/200g BATTERY TYPE 7.2V 1200mah MAINS ADAPTOR 12V 300ma UNIT WEIGHT MAINTENANCE AND GENERAL CARE • Repairs and Servicing should only be carried out by authorised service agents. • There are no user serviceable parts in the weighing scale itself. -
Page 4: Section 1 - Basic Functions
OPERATOR INSTRUCTIONS - 10 KEY VERSION SECTION 1 - BASIC FUNCTIONS 1.1 - SWITCHING ON THE SCALE POWER PRE- TARE WEIGHT HOLD PRESS THE ON BUTTON FIRMLY UNITS PRINT ZERO HOLD SLOW POWER PRE- TARE WEIGHT HOLD 18.8.8.8.8 THE SCALE WILL FIRST TEST ALL OF THE DISPLAY SEGMENTS UNITS PRINT... -
Page 5: Switching Off
SECTION 1 - BASIC FUNCTIONS 1.2 - SWITCHING OFF THE SCALE POWER PRE- TARE WEIGHT HOLD PRESS THE OFF BUTTON UNITS PRINT HOLD SLOW ZERO POWER PRE- TARE WEIGHT HOLD THE SCALE WILL POWER DOWN UNITS PRINT HOLD ZERO SLOW 1.3 - SETTING THE SCALE TO ZERO IF FOR SOME REASON THE SCALE SHOWS POWER... -
Page 6: Unit Switching
SECTION 1 - BASIC FUNCTIONS 1.4 - UNIT SWITCHING POWER PRE- TARE WEIGHT HOLD 100.0 THE DEFAULT SETTING IS KG PRESS THE UNIT KEY ONCE UNITS PRINT HOLD SLOW ZERO POWER PRE- TARE WEIGHT HOLD 16:12.0 THE SCALE SWITCHES TO STONES PRESS THE UNIT KEY ONCE UNITS PRINT... -
Page 7: Section 2 - Advanced Functions
SECTION 2 - ADVANCED FUNCTIONS 2.1 - HOLD FUNCTION POWER PRE- TARE WEIGHT HOLD PRESS THE HOLD BUTTON ONCE UNITS PRINT HOLD ZERO SLOW POWER PRE- TARE WEIGHT HOLD Hold THE PERSON SHOULD NOW GET ON TO THE SCALES UNITS PRINT HOLD SLOW... -
Page 8: Slow Function
SECTION 2 - ADVANCED FUNCTIONS 2.2 - SLOW FUNCTION POWER PRE- TARE WEIGHT HOLD AT 0.0kg PRESS THE SLOW BUTTON PRESS THE SLOW BUTTON A SECOND UNITS PRINT TIME TO DISABLE THE FUNCTION ZERO HOLD SLOW THIS FUNCTION IS SIMILAR TO THE HOLD FUNCTION BUT INSTEAD OF HOLDING THE WEIGHT THE WEIGHT DISPLAY IS SLOWED DOWN CONSIDERABLY THIS FUNCTION CAN BE VERY USEFUL WHEN WEIGHING DISABLED PATIENTS, CHILDREN OR BABIES... -
Page 9: Body Mass Index Function
SECTION 2 - ADVANCED FUNCTIONS 2.3 - BMI (BODY MASS INDEX) FUNCTION FOR THIS EXAMPLE WE WILL ASSUME WE HAVE A PERSON WEIGHING 100kg AND 180.0cm TALL POWER PRE- TARE WEIGHT HOLD PLACE THE PERSON ON THE SCALE 100.0 PRESS THE BMI BUTTON ONCE UNITS PRINT ZERO... - Page 10 SECTION 2 - ADVANCED FUNCTIONS 2.4 PRINT FUNCTION AN OPTIONAL EXTERNAL PRINTER IS AVAILABLE FOR ALL MODELS, WHEN FITTED THE PATIENTS WEIGHT, HEIGHT, AND BMI RESULT CAN BE PRINTED ON TO A PAPER ROLL. ONCE THE PERSON HAS BEEN WEIGHED AND THERE BMI CALCULATED, SIMPLY PRESS THE PRINT KEY TO PRODUCE THE FOLLOWING TICKET Gross Weight: 100.0 kg...
-
Page 11: Rohs Compliance
ROHS COMPLIANCE EU Directive 2002/95/EC restricts the use of the 6 substances below in the manufacture of specified types of electrical equipment. • The product does not contain any of the restricted substances in concentrations and applications banned by the directive; •... -
Page 12: Error Messages
ERROR MESSAGES The internal battery is low on charge, charge the scale Indicates that the signal from errl the load cell/s is too low * Indicates that the signal from the load cell/s is too high * Indicates that there is a fault errp with the scales software * Indicates that the signal from...
