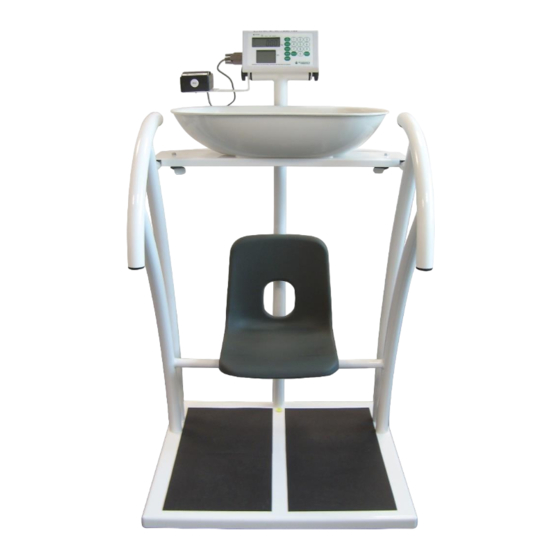

Marsden M-700 User Manual
Please take time to read these instructions before starting to use the scale.

Advertisement

Table of Contents
loading

Related Manuals for marsden M-700

Summary of Contents for marsden M-700

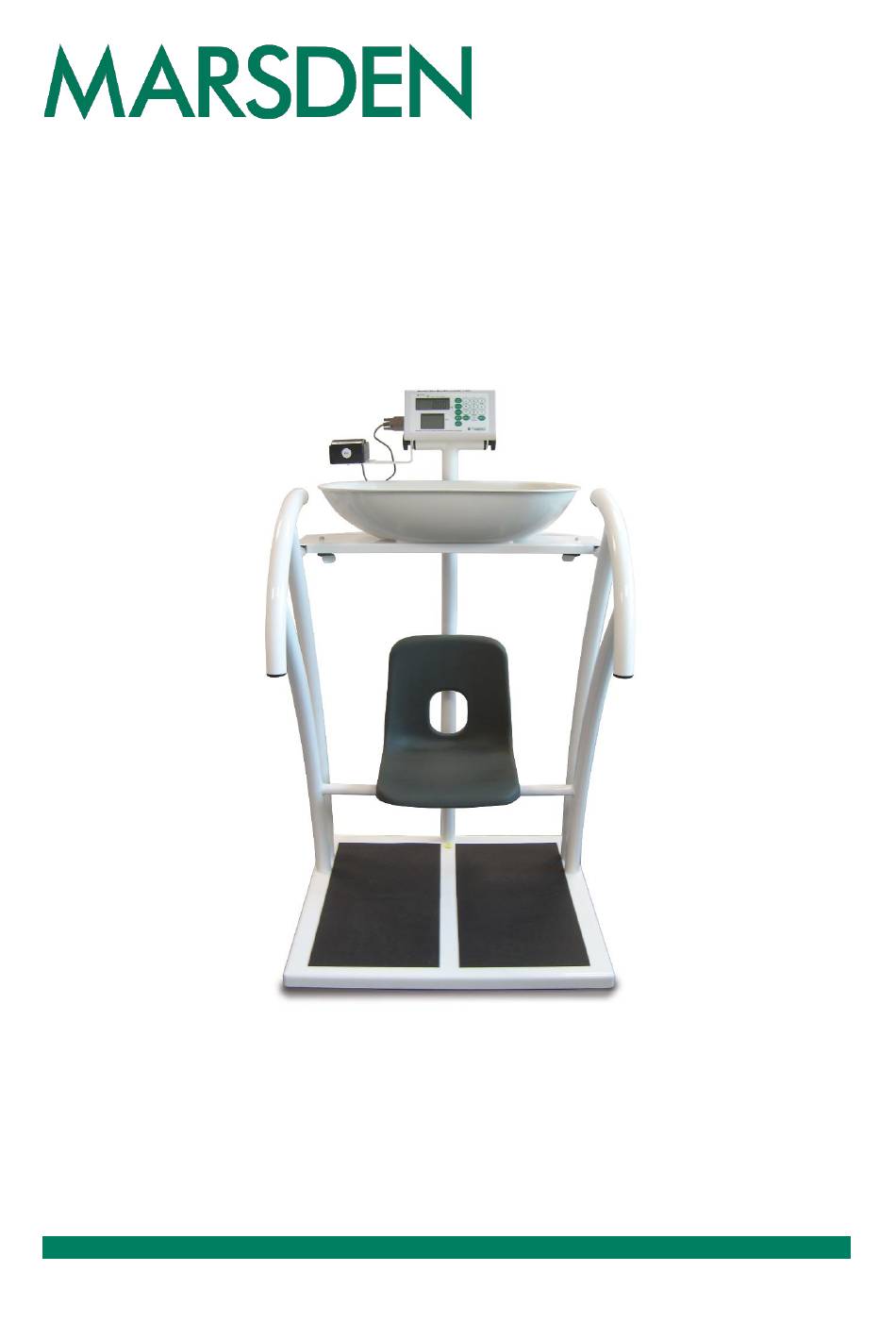

  • Page 1 Marsden M-700 User Manual Please take time to read these instructions before starting to use the scale.

  • Page 2: Table Of Contents

    Introduction Thank you for purchasing a Marsden professional medical scale. This is a precision Class III weighing instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 150kg which must not be exceeded.

  • Page 3: Safety Instructions

    If any inaccuracies occur, please contact your local dealer or service partner. • If you are in the UK, service contracts are available from Marsden to keep your scale accurate and reliable for longer. Call 01709 364296 for more information.

  • Page 4: Explanation Of Graphic Symbols

    Explanation of Graphic Symbols Separate collection for Caution, consult waste of electrical and accompanying electronic equipment, documents before use in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual before Medical electrical installation and usage, equipment with Type B and follow instructions...

  • Page 5: Power Supply And Low Battery

    Power Supply and Low Battery The indicator uses a rechargeable battery pack, a non-rechargeable battery pack, or can be powered from the mains via the AC adaptor. Make sure the battery pack is installed in the battery box of the indicator. Alternatively, plug the AC adaptor (12V 2A) into the port on the side of the indicator.

  • Page 6: Switching On The Scale

    Switching on the Scale Press the ON/OFF button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0kg on the display.

  • Page 7: Switching Off The Scale

    Switching off the Scale Press the ON/OFF button when the scale is turned on. The scale will now power down. Setting the Scale to Zero If for any reason the scale shows a reading other than 0.0kg it can be reset to zero.

  • Page 8: Hold Function

    Hold Function Press the HOLD button once. Allow the patient to be wheeled onto the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display. Press HOLD again to disable the Hold function and return the scale to 0.0kg.

  • Page 9: Setting Auto Hold Function (Optional)

    Setting Auto Hold Function (Optional) The display will have a flashing triangle mark under the HOLD button once the scale is turned on. Allow the patient to be wheeled onto the scale. The scale will automatically lock on the patient’s weight to complete the hold function.

  • Page 10: Tare And Pre-Set Tare Functions

    Tare and Pre-Set Tare Functions Press the TARE key for three seconds to enter Preset Tare setting mode. The display will show the last preset tare entered and the extreme left digit will flash. Enter the preset tare value by using the numeric keys, then press the TARE key again to confirm the value.

  • Page 11: Setting The Date

    Setting the Date Press HOLD for three seconds to access the time setting mode. The time period digit that is flashing can be changed by using the numeric keys. The time period to be edited is selected by pressing HOLD. E.g., To input 25 December 2008, 8:00 a.m.: Enter the year.

  • Page 12: Using The Scale With A Printer

    Using the Scale with a Printer An optional Marsden external printer (model TP-2100) is available for all models. With the printer fitted, the patient’s weight, height, and BMI result can be printed. Once the person has been weighed and their BMI calculated, simply press PRINT to produce the following ticket: GROSS WEIGHT 60.00kg...

  • Page 13: Using The Scale With Wi-Fi/Bluetooth

    Search for the scale in your computer or device’s Bluetooth settings (procedure may vary depending on device or system) The scale will appear on the Bluetooth device list as “MARSDEN BT”. Connect your device to “MARSDEN BT”, and the scale is ready to transmit data wirelessly via Bluetooth. Wi-Fi Connection Turn the scale on and press the TARE key for 3 seconds to enter into settings.

  • Page 14: Using The Baby Bowl

    Using the Baby Bowl The M-700 has a 60kg-capacity baby bowl attachment. The baby bowl can be removed when the seat is being used, using the locking latches on either side. Always ensure the scale is switched off before removing or adding the baby bowl.

  • Page 15: Emc Guidance And Manufacturer's Declaration

    EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration – electromagnet emissions. The M-700 is intended for use in the electromagnetic environment specified below. The customer or user of this scale should ensure that it is used in such environment.
  • Page 16 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the M-700. This scale is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The...

  • Page 17: Error Messages

    Marsden Weighing Machine Group Ltd, Unit 1, Genesis Business Park, Sheffield Road, Rotherham, UK, S60 1DX EU Importer: Marsden Weighing Machine Group Europe Ltd, The Black Church, St. Mary's Place, Dublin 7, Dublin, Ireland, D07 P4AX Charder Electronic Co., Ltd.
  • Page 18 Page 18 of 20...
  • Page 19 Page 19 of 20...
  • Page 20 MARSDEN Unit 1, Genesis Business Park, Sheffield Road, Rotherham, S60 1DX Telephone: + 44 (0) 1709 364296 Version 1.1 Page 20 of 20...
