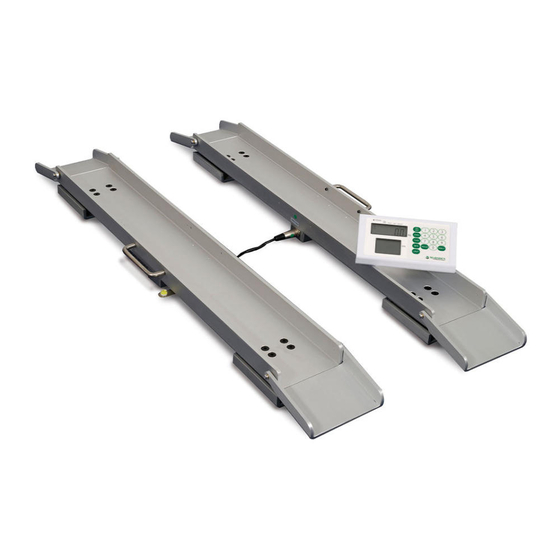

M-610
USER MANUAL
PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE
STARTING TO USE THE SCALES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for marsden M-610

Summary of Contents for marsden M-610

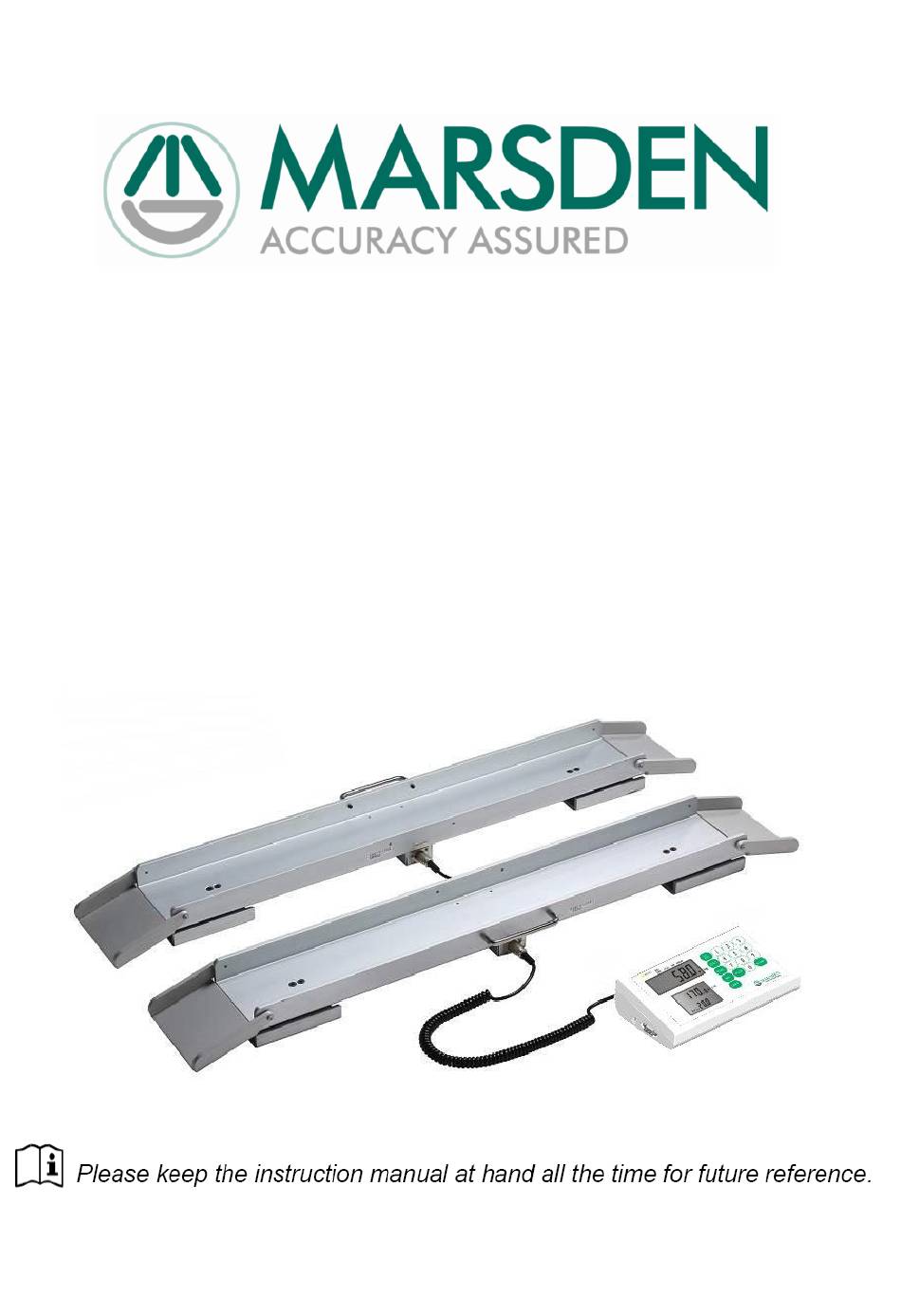

  • Page 1 M-610 USER MANUAL PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE STARTING TO USE THE SCALES...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION…….………………………………………… POWER SUPPLY…….………………………………………… INSTRUCTION FOR REPLACING BATTERIES…………… SPECIFICATIONS………………………………………….…. KEY FUNCTIONS……………………………………………… LCD SYMBOL DESCRIPTION………………………………. MAINATENANCE AND GENERAL CARE……………….… 1.0 BASIC FUNCTIONS……………………………………. 1.1 SWITCHING ON ………………………………. 1.2 SWITCHING OFF……………………………… 1.3 SETTING ZERO……………………………….. 2.0 ADVANCED FUNCTIONS …………………………… 2.1 HOLD FUNCTION …………………………….. 2.2 BODY MASS INDEX (BMI) FUNCTION……..

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing a Marsden Professional Medical Scale. This is a precision Class III Weighing Instrument and it will reward considerate use with many years of accurate weighing results SAFETY INSTRUCTION Before putting the device into use, please read with care the information given in the Operating Instructions.
  • Page 4 MAINTENANCE 14. The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. The regularity of these checks is dependent on the level of use and the state of the scale. If any inaccuracies occur, please contact your local dealer or service partner DISPOSING OF THE SCALE 15.
  • Page 5 Dispose of old appliances separately from your household waste!l! Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales.

  • Page 6: Power Supply

    POWER SUPPLY 1. Make sure the battery pack is installed in the battery box of indicator, or, plug the connector of AC ADAPTER (12V 1A) in the indicator.  The INDICATOR uses a rechargeable battery pack, or an AC adaptor. ...
  • Page 7 INSTRUCTION FOR REPLACING BATTERIES 1. Take out the battery housing, and reset the rechargeable battery. 2. To make sure that the housing pin is connecting to the right point. Rechargeable Battery AA size Battery ( to fit on an optional battery holder) 3.

  • Page 8: Specifications

    SPECIFICATION Capacity & 300kg x 100g Division Accuracy ±150g Units of Measure ON/OFF, ZERO, TARE, BMI, UNIT, HOLD, PRINT, Function keys 0 ~ 9 Stabilisation Time 1-2 seconds Operating Temp. and 0°C - 40°C humidity 15% - 85% RH - 20°C … + 60°C Transport and storage temp.

  • Page 9: Key Functions

    KEY FUNCTIONS Description ON/OFF Switching on/off the scale PRINT Data transmission via interface Determination of Body Mass Index Hold function / determination of stable weighing value HOLD Long press 3sec, to enter into the “TIME” setting mode. The scale is reset to 0.0kg display. It is possible to set max.

  • Page 10: Lcd Symbol Description

    LCD SYMBOL DESCRIPTION Definitions Stable symbol: To indicate that the weight is stable. Minor weight: Weight under zero. Zero symbols: Weight is at zero point. Power Index: When the indicator show “LO”, means Battery need to recharge.

  • Page 11: Mainatenance And General Care

    MAINTENANCE AND GENERAL CARE  Repair and Service should only be carried out by authorized service agents.  There are no user serviceable parts in the weighing scale itself.  The mains power adaptor fuses that are not accessible.  When the adaptor is plugged into the mains supply a Green LED should illuminate to indicate that the adaptor is functioning correctly.

  • Page 12: Basic Functions

    OPERATOR INSTRUCTIONS SECTION 1 - BASIC FUNCTIONS SWITCHING ON THE SCALE Press the ON/OFF button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0kg on the display.

  • Page 13: Switching Off

    SWITCHING OFF THE SCALE Press the ON/OFF button when the scale is turned on. The scale will power down. SETTING THE SCALE TO ZERO If for some reason the scale shows a reading other than 0.0kg then it can be reset to zero (2% of capacity).

  • Page 14: Advanced Functions

    SECTION 2 – ADVANCED FUNCTIONS HOLD FUNCTION Press the HOLD button once. The person should now get on to the scales. After a few seconds the scale will lock on the person’s weight. When the person stand off the scale, the weight will unlock automatic.

  • Page 15: Body Mass Index (Bmi) Function

    BMI (BODY MASS INDEX) FUNCTION For this example we will assume we have a person weighing 60kg who is 170.0cm tall In normal mode, press BMI key to enter into BMI mode. The display will show the last height entered and the extreme left digit will flash.

  • Page 16: Setting And Recall The Pre-Tare Function

    SETTING AND RECALL THE PRE-TARE FUNCTION Long press TARE key 3sec to enter PRE-TARE setting mode. And then press TARE key again. (Over 3sec, it will return to the normal mode.) The display will show the last pre-tare entered and the extreme left digit will flash.

  • Page 17: Setting The Date And Time

    SETTING THE DATE AND TIME Press the HOLD key for 3 seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number from the numeric key pad. The time period to be edited is selected by pressing the HOLD key.

  • Page 18: Printing Function

    PRINTING FUNCTION An optional Marsden external printer (Model TP-2100) is available for all models. When the printer is fitted the patient’s weight, height, and BMI result can be printed on to a paper roll. Once the person has been weighed and their BMI calculated, simply...

  • Page 19: Assembling The Tp2100) Printer

    ASSEMBLING: TP2100 THERMAL PRINTER Plug the cable to the printer, and then connect its 9D connector to the indicator. BLUETOOTH VERSION For Bluetooth version, Bluetooth symbol will show on the panel. Example as below:...

  • Page 20: Bluetooth Connection

    The scale will appear on Bluetooth device list of your smart phone or computer in the name of “MARSDEN BT” Connect your smart phone or computer with “MARSDEN BT”, and the scale is ready to transmit data through Bluetooth.

  • Page 22: Error Messages

    ERROR MESSAGES ERROR REASON ACTION MESSAGE Low battery: Please replace with This warning shows that the batteries plug voltage of batteries is too low adaptor for operation. to use. Overload: The total load exceeds the Please reduce the loading and maximum capacity of the try again.

  • Page 23: Rohs Compliance & Product Conformity

    ROHS COMPLIANCE EU Directive 2002/95/EC restrict the use of the 6 substances below in the manufacture of specified types of electrical equipment.  The product does not contain any of the restricted substances in concentrations and applications banned by the directive; ...

  • Page 24: Contact Information

    FREEPHONE NUMBER: 0800 169 2775 HEAD OFFICE: UNIT 1 SALES, SERVICE, GENESIS BUSINESS PARK MARKETING SHEFFIELD ROAD AND ACCOUNTS ROTHERHAM S60 1DX TELEPHONE: 0845 130 7330 FAX: 0845 1307440 DESPATCH AND Unit 7 PRODUCTION CENTURION BUSINESS PARK COGGIN MILL WAY ROTHERHAM S60 1FB TELPHONE: 0845 130 7330...
