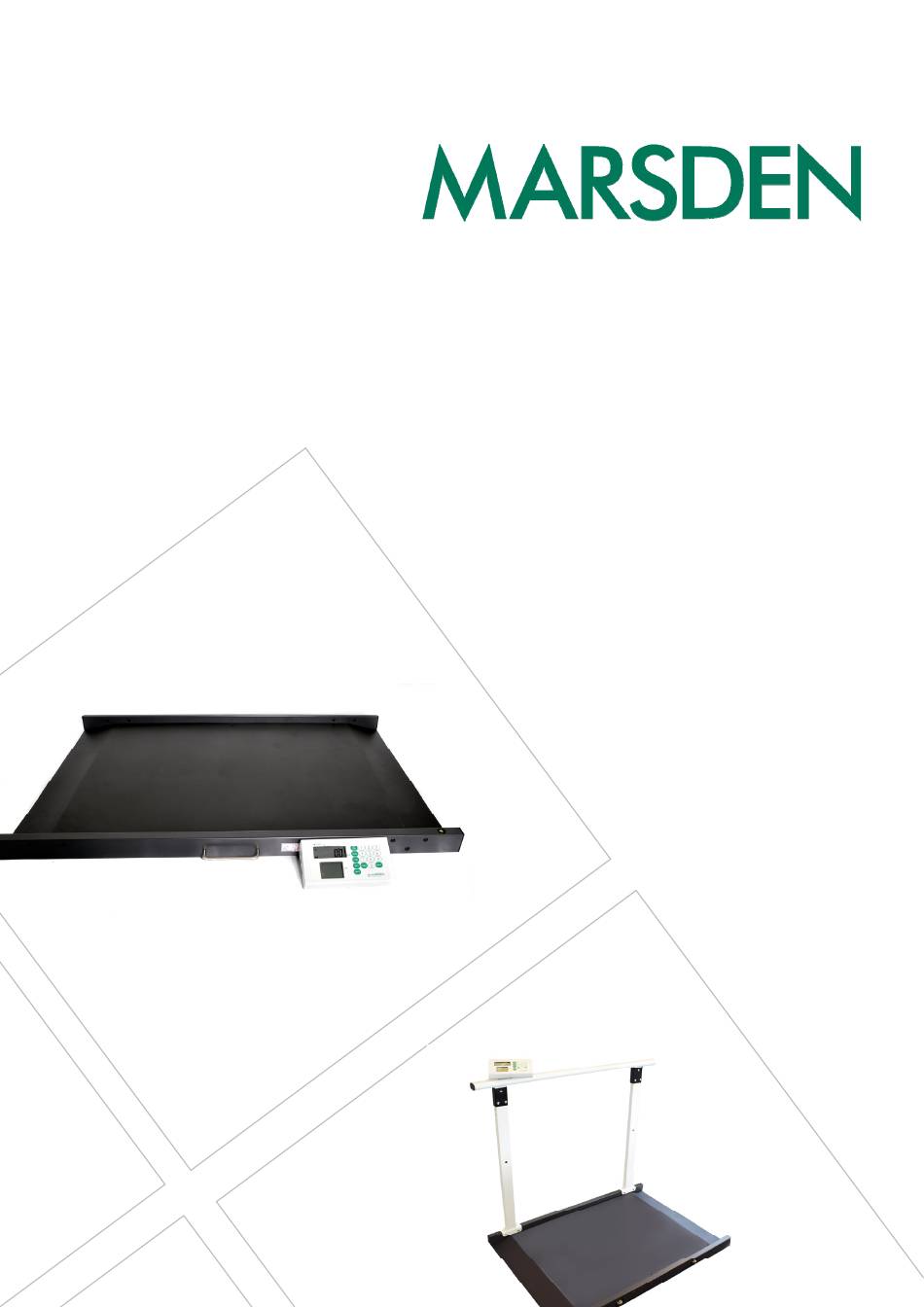

- Page 1 USER MANUAL M-650/M-651/ M-652/M-653 Please take time to read these instructions before starting to use the scale Version 1.1 09/17...
-
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Power Supply and Low Battery Assembly: Indicator Column (M-651 only) Assembly: Handrails Moving the Scale (M-653 only) Operation: Basic Functions Operation: Advanced Functions Using the Scale with a Printer Using the Scale with Bluetooth EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Manufacturer’s Declaration of Conformity... -
Page 3: Introduction
Options 2 x handrails and cross bar (M-652 only) 1 x handrail (M-653 only) *Cannot be powered by six AA batteries as standard. Please contact Marsden for further information. If the device is under legal metrology control(self-verification) Marsden will provide notified body no. 0122 on the device... -
Page 4: Safety Instructions
Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: When using electrical components under increased safety requirements, always comply with ... -
Page 5: Explanation Of Graphic Symbols
Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Page 5... -
Page 6: Power Supply And Low Battery
3. Check that the housing pin is connected to the right point inside the indicator. Optional battery holder (to fit AA batteries – contact Marsden or your dealer) 4. Place the housing back inside the indicator, and close the battery housing cover. Page 6... -
Page 7: Assembly: Indicator Column (M-651 Only)
Assembling the indicator column (M-651 only) ITEM SPEC. Scew for Indicator SW-8060 Bracket A SS-4961 Bracket B SS-4971 Column SS-3751A Round plate SS-8063 NF-016ST Hexagon screw M3*6 Countersunk Hexagon M4*0.7*12 Self tapping screw Rivet nut Phillips head screw M4*0.7*8 Washer head screws M5*0.8*11 Page 7... - Page 8 Bracket A 1) Place Bracket A on the back of the indicator with three screws as shown in the image above. Bracket B 2) Place Bracket B on the top of the column using three screws (item 8). Page 8...
- Page 9 3) Slot Bracket A onto the top of Bracket B and secure the two together using the black screws circled in the image above. Page 9...
-
Page 10: Assembly: Handrails
Assembly: Handrails (M-652/M-653 Only) Left Handrail Item Drawing Qty. Handrail bar without screw hole SS-8300A Fixing plate SS-8311 Socket button head cap screw M6-21 Pole AM-8173 Socket button head cap screw nut ø8-M6*33 Socket key Page 10... - Page 11 Right Handrail Item Drawing Qty. Handrail bar SS-8300B Fixing plate SS-8311 Socket button head cap screw M6-21 Pole AM-8173 Socket button head cap screw nut ø8-M6*33 Screw for display set M4*6 Screw nut for printer bracket M5-0.8-JB Plastic screw M5-0.8*8 Pole with wiring duct AM-8173A End cap...
- Page 12 Step 1. Fix no.2 (fixing plate) on no.9 (pole with wiring duct) with no.3 (socket screw) and no.5 (screw nut). Fix no.9 (pole with wiring duct) on platform by using no.3 and no.5. no.2 no.9 no.5 no.3 Page 12...
- Page 13 Step 2. Assemble pole on platform, as per Step 1. Step 3. Attach no.1 (handrail bar) to poles, using no.3 (socket screw) and no.5 (screw nut). no.3 no.5 Step 4. For M-652, repeat Steps 1-3. Page 13...
- Page 14 Step 5. With handrails assembled, attach no.13 (bracket for indicator) using no.6 (screw) No.5 no.3 Step 6. For M-652, assemble cross bar (SS-8444) with two screws (M8-1.25P*45). Page 14...
-
Page 15: Moving The Scale (M-653 Only)
Moving the Scale (M-653 only) The M-653 is supplied with a folding handrail. This allows the scale to be transported much more easily. To fold the handrail down, release the locking hook and carefully fold down the handrail until it abuts completely. The hinge will lock in place ready for transportation. -
Page 16: Operation: Basic Functions
Operation: Basic Functions Switching on the Scale Press the ON/OFF button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0 on the display. - Page 17 Switching off the Scale Press the ON/OFF button when the scale is turned on. The scale will now power down. Setting the Scale to Zero If for any reason the scale shows a reading other than 0.0 it can be reset to zero.
-
Page 18: Operation: Advanced Functions
Operation: Advanced Functions Hold Function Press the HOLD button once. Allow the patient to stand on/be wheeled onto the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display. - Page 19 Body Mass Index (BMI) Function In normal mode, press the BMI key to enter BMI mode. The display will show the last height entered and the extreme left digit will flash. Enter the height by using the numeric keys. Press the ZERO key to confirm the height.
- Page 20 Tare and Pre-set Tare Functions Press the TARE key for three seconds to enter Pre-set Tare setting mode. The display will show the last pre-set tare entered and the extreme left digit will flash. Enter the pre-set tare value by using the numeric keys), then press the TARE key again to confirm the value.
- Page 21 Setting the Date Press the HOLD key for three seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number from the numeric key pad. The time period to be edited is selected by pressing the HOLD key. E.g.
-
Page 22: Using The Scale With A Printer
Using the Scale with a Printer An optional Marsden external printer (model TP-2100) is available for all models. When the printer is fitted, the patient’s weight, height, and BMI result can be printed. Once the person has been weighed and their BMI calculated, simply press the PRINT key to... -
Page 23: Using The Scale With Bluetooth
(procedure may vary depending on device or system) The scale will appear on the Bluetooth device list as “MARSDEN BT”. Connect your device to “MARSDEN BT”, and the scale is ready to transmit data wirelessly via Bluetooth. Page 23... -
Page 24: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The M-650/M-651/M-652/M-653 is intended for use in the electromagnetic environment specified below. The customer or the user of the M-650/M-651/M-652/M-653 should assure that it is used in such an environment. Emission test Compliance... -
Page 25: Recommended Separation Distance
NOTE UT is the a.c. mains voltage prior to application of the test level. Guidance and manufacturer’s declaration-electromagnetic immunity M-650/M-651/M-652/M-653 is intended for use in the electromagnetic environment specified below. The customer or the user of the M-650/M-651/M-652/M-653 should assure that is used in such and environment. - Page 26 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the M-650/M-651/M-652/M-653 is used exceeds the applicable RF compliance level above, the M-650/M-651/M-652/M-653 should be observed to verify normal operation.
- Page 27 Recommended separation distance between portable and mobile RF communications equipment and the M-650/M-651/M-652/M-653 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the M-650/M-651/M- 652/M-653 can help prevent electromagnetic interference by maintaining a minimum distance...
- Page 28 Page 28...
-
Page 29: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Manufactured for: Marsden Weighing Machine Group Ltd. Unit 1, Genesis Business Park Sheffield Road, Rotherham England S60 1DX Page 29... - Page 31 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk CD-IN-1255(8669) [80001G]...
