- Page 1 Marsden MBF User Manual Please take time to read these instructions before starting to use the scale.
-
Page 2: Table Of Contents
Introduction Thank you for purchasing a Marsden professional medical scale. This is a precision Class III weighing instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 300kg which must not be exceeded. -
Page 3: Safety Instructions
If any inaccuracies occur, please contact your local dealer or service partner. • If you are in the UK, service contracts are available from Marsden to keep your scale accurate and reliable for longer. Call 01709 364296 for more information. -
Page 4: Explanation Of Graphic Symbols

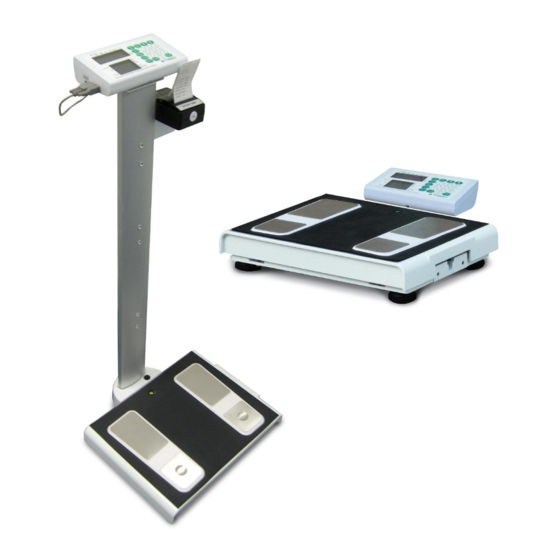

Explanation of Graphic Symbols Separate collection for Caution, consult waste of electrical and accompanying electronic equipment, documents before use in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual before Medical electrical installation and usage, equipment with Type B and follow instructions... - Page 5 Product Structure: MBF-6000 A: Remote Display B: Digital LCD C: Control Panel D: Pads for feet E: Platform F: Adjustable feet G: Battery in holder Product Structure: MBF-6010 A: Remote Display B: Digital LCD C: Control Panel D: Pads for feet E: Platform F: Adjustable feet G: Battery in holder...
-
Page 6: Product Assembly (Mbf-6010 Only)
Product Assembly (MBF-6010 only) Please note: For safety and ease, recommend this scale is assembled by two people. Position the column of the MBF-6010 on top of the base, as shown in the graphic on the left, ensuring wires are neatly fed from the base through the inside of the column. -
Page 7: Before Operation
Before Operation • Install rechargeable battery pack in the battery compartment of the indicator. Alternatively, plug the connector of the AC adaptor into the port on the indicator (shown below). • Attach the printer to the scale using its 9D connector. •... -
Page 8: Setting The Date & Time
Setting the Date & Time Press ON/OFF to switch on the scale. Press TIME, entering the Date/Time setting menu. Year of last date record will be displayed; the 1 digit will flash. Change the flashing digit by using the numerical key on the control panel. -
Page 9: Operation Instructions
Operation Instructions Press ON/OFF. “0.0” will appear in the top LCD display. Ensure the printer is connected to the back of the indicator. The printer can be switched on by pressing the I/O switch. Press PRE-TARE. Input the weight of your clothes. - Page 10 Press ENTER, and a flashing arrow will appear in the lower right corner. When this displays you can stand on the scale. Step on the four electrodes of platform with bare feet. Stand straight without bending your knees. Weight will be displayed on the top of the LCD then will appear with digits running one by one at the...
-
Page 11: Assembly Instructions: Hm-201D
Assembly Instructions: HM-201D The connection point between the scale’s indicator and HM-201D is illustrated below. Insert the HM-201D data cable into the socket of the indicator before use. Page 11 of 20... -
Page 12: Replacing The Battery
Replacing the Battery Open the battery housing cover, and take out the battery housing. Reset the rechargeable battery. Make sure the rechargeable battery is properly placed. Place the battery housing back making sure that the housing pin is connecting to the right point. Close the battery housing cover. -
Page 13: Print-Out Readings Explained
AGEM: Metabolic Age: The AGEM is your Basal Metabolic Rate compared to the average BMR for your age group. It will thereby estimate your age in years. Health score: Health score is calculated out of 100 using height, age, weight and gender information - as well as impedance of limbs and trunk. For more information visit www.marsden-weighing.co.uk/blog. Page 13 of 20... -
Page 14: Body Impedance Measurement Methods
Body Impedance Measurement Methods In the conventional 4-electode method, current is supplied from the electrodes at the tips of the toes on both feet, with the voltage measured on the heel. This current flows from one lower limb through the lower abdomen and then into the other lower limb, and the bio electrical impedance (hereinafter, impedance,) thus measured is the impedance between the two feet. -
Page 15: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE MBF-6000/6010 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MBF-6000/6010 should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance... - Page 16 equipment marked with the following symbol: Radiated RF IEC 61000- 3 V/m 80MHz to 2,7 GHz 3 V/m NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
-
Page 17: Error Messages
Distributor: Unit 1, Genesis Business Park, Sheffield Road, Rotherham, UK, S60 1DX EU Importer: Marsden Weighing Machine Group Ltd, The Black Church, St. Mary's Place, Dublin 7, Dublin, Ireland, D07 P4AX Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Manufactured by: Taichung City 41262 ,Taiwan (R.O.C.) - Page 18 Page 18 of 20...
- Page 19 Page 19 of 20...
- Page 20 MARSDEN Unit 1, Genesis Business Park, Sheffield Road, Rotherham, S60 1DX Telephone: + 44 (0) 1709 364296 Version 1.1 Page 20 of 20...
