TABLE OF CONTENTS POWER SUPPLY…….…………………………………. SPECIFICATIONS…………………………………………. MAINATENANCE AND GENERAL CARE……………... BASIC FUNCTIONS………………………………… 4 SWITCHING ON …………………………………….. 4 SWITCHING OFF……………………………………. 5 SETTING ZERO……………………………………… 5 ADVANCED FUNCTIONS ……………………… HOLD FUNCTION ……………………………….. BODY MASS INDEX (BMI) FUNCTION……….. SETTING THE DATE AND TIME………………. PRINTING FUNCTION…………………………. ASSEMBLING INSTRUCTIONS…………………...

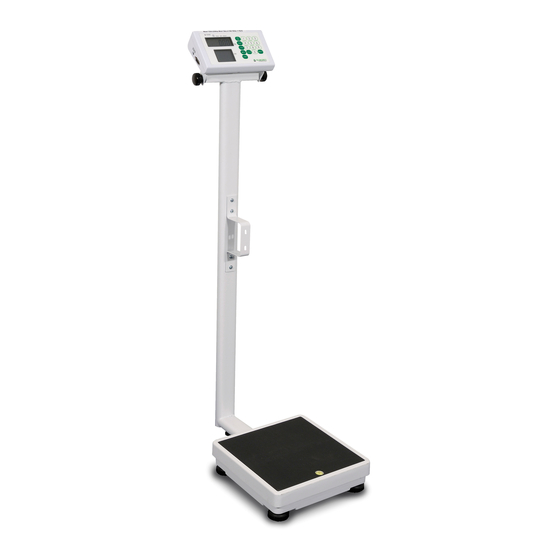

The INDICATOR uses a rechargeable battery pack, or an AC adaptor. When the indicator displays (low battery indication), please plug in the AC adaptor for operation and battery recharging (where rechargeable batteries are installed). PRODUCT SPECIFICATION MODEL MARSDEN MPPS-250 ACCURACY CLASS CLASS III CAPACITY 150/250kg INCREMENT 50/100g BATTERY TYPE 7.2V 2000mAh...
MAINTENANCE AND GENERAL CARE Repairs and Servicing should only be carried out by authorised service agents. There are no user serviceable parts in the weighing scale itself. The mains power adaptor fuses that are not accessible. When the adaptor is plugged into the mains supply a Green LED should illuminate to indicate that the adaptor is functioning correctly.
OPERATOR INSTRUCTIONS SECTION 1 - BASIC FUNCTIONS 1.1 SWITCHING ON THE SCALE Press the ON button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0kg on the display.
1.2 SWITCHING OFF THE SCALE Press the OFF button. The scale will power down. 1.3 SETTING THE SCALE TO ZERO If for some reason the scale shows a reading other than 0.0kg then it can be reset to zero (2% of capacity). Press the zero key once.
SECTION 2 – ADVANCED FUNCTIONS 2.1 HOLD FUNCTION Press the HOLD button once. The person should now get on to the scales. After a few seconds the scale will lock on the person’s weight, the person can now stand off the scale and the weight will remain.
2.2 BMI (BODY MASS INDEX) FUNCTION For this example we will assume we have a person weighing 60kg who is 170.0cm tall. In normal mode, press BMI key to enter into BMI mode. The display will show the last height entered and the extreme left digit will flash.
2.3 SETTING THE DATE AND TIME Press the HOLD key for 3 seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number from the numeric key pad. The time period to be edited is selected by pressing the HOLD key.
2.4 PRINTING FUNCTION An optional Marsden external printer (Model TP-2100) is available for all models. When the printer is fitted the patient’s weight, height, and BMI result can be printed on to a paper roll. Once the person has been weighed and their BMI calculated, simply press the...
2.5 SCALE ASSEMBLING Connecting the cables of base and column. Assembling the bracket of column on the base by four screws then screwing the foot stand into the column base. Assembling is complete.
2.6 USING & ASSEMBLING: HM200D DIGITAL HEIGHT ROD The height measure is attached to the scale column as follows: 2. Fix the HM200D or HM201D on 1. Fix the blocks on the column the blocks and tighten the and tighten the screws. screws.
Page 13
Insert the HM201D data cable into the socket of DP3800 Indicator before use and simply pull up the height rod and adjust the head piece according to the person’s height, HM200D & HM201D will automatically transfer the height measurement to the scale. The automatic height measurement also enables the automatic calculation and display of the Body Mass Index (BMI) of the measured person.
2.7 USING & ASSEMBLING: HM200M MANUAL HEIGHT ROD After assembling the HM 200M height rod, simply pull up the height rod and adjust the head piece according to the person’s height and key in the height on the indicator to calculate the persons B.M.I. 1.
ROHS COMPLIANCE EU Directive 2002/95/EC restrict the use of the 6 substances below in the manufacture of specified types of electrical equipment. The product does not contain any of the restricted substances in concentrations and applications banned by the directive; ...
ERROR MESSAGES ERROR REASON ACTION MESSAGE Low battery: Please replace with This warning shows that the batteries or plug the AC voltage of batteries is too low adaptor for operation. to use. Overload: The total load exceeds the Please reduce the loading maximum capacity of the and try again.
