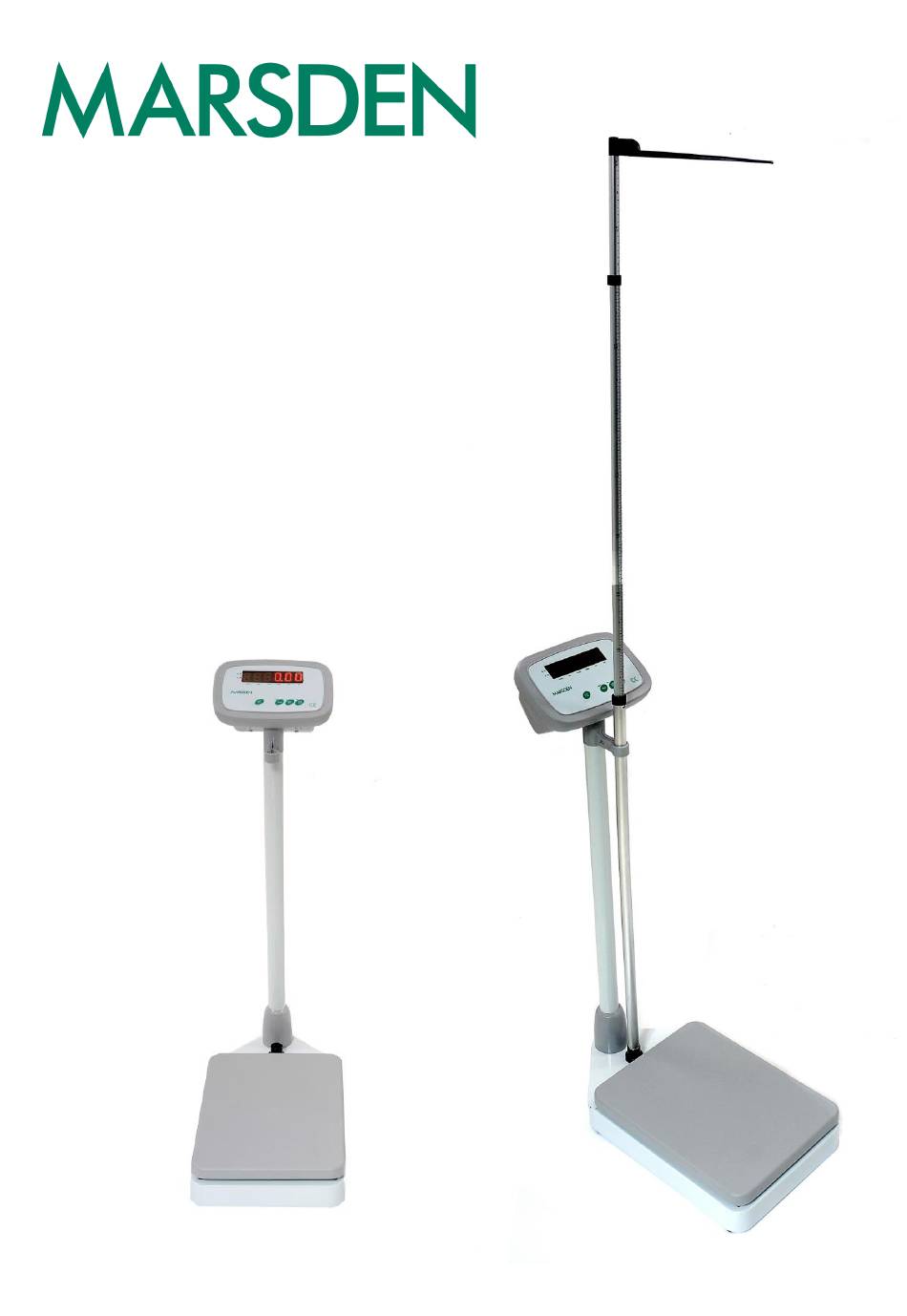

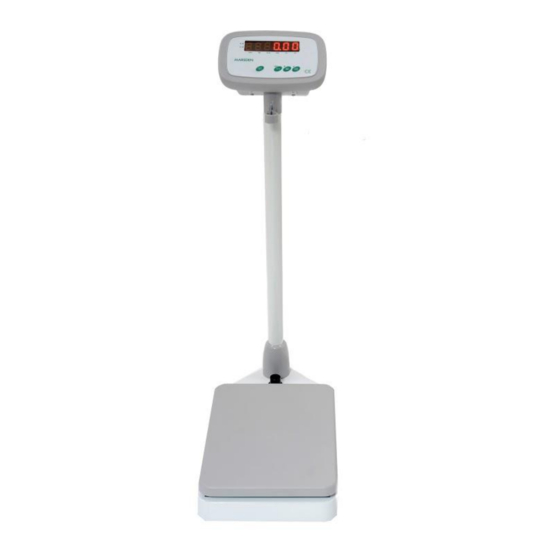

- Page 1 OPERATING MANUAL M-150 Please take time to read these instructions before starting to use the scale...
-
Page 2: Table Of Contents
Contents Maintenance and General Care Assembly Instructions Operating Instructions BMI Operation Zero/Tare/Hold/Units Error Messages Contact Details Page 2... -
Page 3: Maintenance And General Care
Maintenance and General Care Repairs and servicing should only be carried out by an authorised service agent. There are no user serviceable parts in the weighing scale itself. The mains power adaptor fuses are not accessible. When the adaptor is plugged into the mains supply a red LED should ... -
Page 4: Assembly Instructions
Assembly Instructions 1) Open the packaging and check that all parts are accounted for. 2) Place the cable through the column, then fix the indicator to the pillar as shown in the image below. Page 4... - Page 5 3) Connect the cable from the indicator into the load cell cable in the base. 4) Fix the column onto the scale base using the 3 x M5 bolts, making sure not to trap any wires. 5) Push the height rod through the hole at the base of the indicator and then connect to the black stopper on the base of the scale.
-
Page 6: Operating Instructions
Operating Instructions 1) Turning the scale on and off To turn the scale on press the ON button firmly. The model number and software version will briefly show on the display. Then the scale will display 0.0 and it is ready to use. -
Page 7: Bmi Operation
2) BMI Operation Turn the scale on and then allow the individual to stand on the scale. When a stable weight is showing, firmly press the BMI button. The display will show H 1.75. This is the height in metres and centimetres. The last digit should be flashing. -
Page 8: Zero/Tare/Hold/Units
3) Zero/Tare/Hold/Units To make the scale show 0.00, press the ZERO button once. If you want to remove unwanted weight, such as a coat for example, put the coat on the scale and press the TARE button. When the coat is removed from the scale a minus weight will be displayed. -
Page 9: Error Messages
Error Messages Error Message Meaning Err1 Incorrect password has been entered Err2 Out of setting range Err4 Unable to zero due to the weight being out of zero range Page 9... -
Page 10: Contact Details
Page 10...
