Table 1-2: RJ-45 Ethernet Port Connector Signals

1.5.2

Status LEDs

6
Pin Signal
1 MDI0+ (PoE_DC48V)
2 MDI0- (PoE_DC48V)
3 MDI1+ (PoE_DC0V)
4 MDI2+ (PoE_DC48V)
5 MDI2- (PoE_DC48V)
6 MDI1- (PoE_DC0V)
7 MDI3+ (PoE_DC0V)
8 MDI3- (PoE_DC0V)

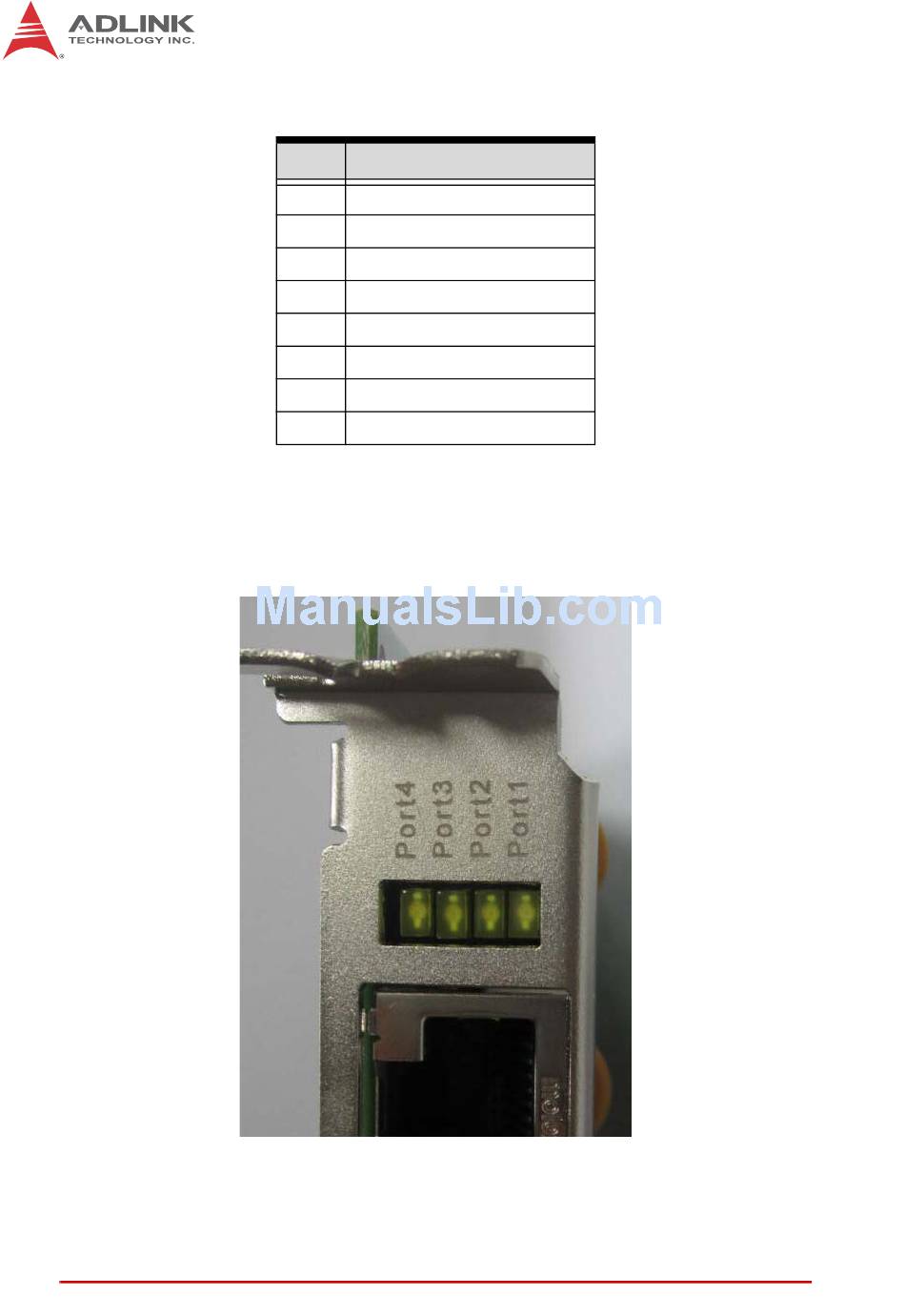

Figure 1-4: Status LEDs

Introduction
