Page 1: Operation Manual
TECHNICAL DOCUMENTATION OPERATION MANUAL DTR ELIS DUO/R/T /5.0/20.11.2012/EN... -
Page 2: Table Of Contents
In order to 3. HEAT OUTPUT DATA CHART ......... 6 3.1.AIR CURTAIN - FAN HEATER – ELIS DUO ....6 ensure correct operation of the equipment, get thoroughly acquainted with this manual and keep it for the future. -
Page 3: General Information

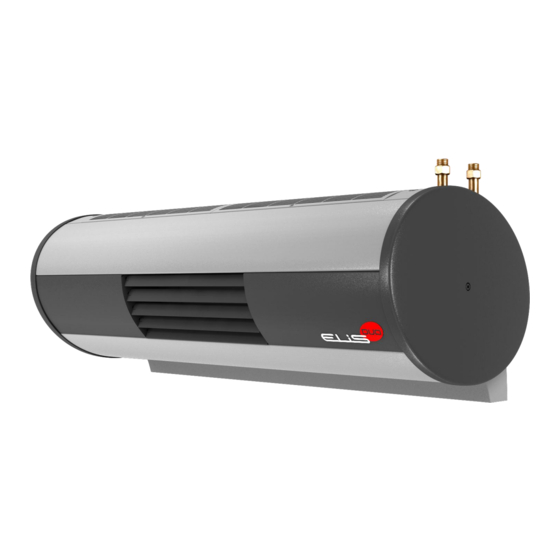

ELIS T2-N-200 ELIS R3-W-100 curtain without heat exchanger (ambient); max. range 3,5m. curtain with water heat exchanger max. range 3,5m; air inlet; curtain air outlet; heater air outlet (ELIS DUO only) 2. DATA CHART R3-W- R3-N- R1-W-... -
Page 4: Dimensions
T2-W-200; T2-N-200 T2-W-150; T2-N-150 T2-W-100; T2-N-100 56dB(A) 53dB(A) 58dB(A) 49dB(A) 46dB(A) 51dB(A) 45dB(A) 42dB(A) 47dB(A) Acoustic pressure level measured in the room of average sound absorption, capacity 500m , at the distance of 3m apart of the unit. www.flowair.com |4... -
Page 5: Air Volume
800m 400m 1200m 850m 1020m 1650 m 2400 m 2.5. NOMOGRAM OF AIR FLOW SPEED ELIS DUO air curtain section ELIS DUO unit heater section distance [m] distance [m] ELIS R1-W-100; R1-N-100 ELIS R3-W-100; R3-N-100 distance [m] distance [m] ELIS T2-W-100; T2-N-100 ELIS T2-W-150;... -
Page 6: Heat Output Data Chart
3. HEAT OUTPUT DATA CHART 3.1. AIR CURTAIN - FAN HEATER – ELIS DUO Air curtain section Δpw Δpw °C °C °C Tw1 / Tw2 = 90/70 Tw1 / Tw2 = 80/60 12,1/14,9/17,2 42/37/34 10,4/12,8/14,8 36/32/29 11,2/13,7/15,9 44/40/37 9,5/11,7/14,8 38/35/32 10,3/12,6/14,7 max.1141... -
Page 7: Air Curtain Elis R1-W-100
32/31/30 V – air flow Tw1 – inlet water temperature PT – heating capacity Tw2 – outlet water temperature Tp1 – inlet air temperature Qw – heating water stream Tp2 – outlet air temperature Δpw – water pressure www.flowair.com |7... -
Page 8: Air Curtain Elis T2-W-100
28/27/26 V – air flow Tw1 – inlet water temperature PT – heating capacity Tw2 – outlet water temperature Tp1 – inlet air temperature Qw – heating water stream Tp2 – outlet air temperature Δpw – water pressure www.flowair.com |8... -
Page 9: Air Curtain Elis T2-W-200
4. INSTALLATION Width of doorway must be equal or lower than width of air curtain While mounting ELiS DUO or ELiS R side by side it is outlet (or outlets if air curtains are installed side by side). important to start from right side (like is shown below), all electrical conntection should be done before installing following curtain. -
Page 10: Mounting By Rods Under The Ceiling
6x threaded rod M8 8x nut M8 2x short spacer sleeve 3x short spacer sleeve 4x threaded rod M8 2x long spacer sleeve 3x long spacer sleeve 4x spacer sleeve www.flowair.com |10... -
Page 11: Stages Of Instalation
4.5. STAGES OF INSTALATION ELIS DUO; R1-W-100; R1-N-100; R3-W-100; R3-N-100 ELIS T2-W-100; T2-N-100 www.flowair.com |11... - Page 12 ELIS T2-W-150; T2-N-150 ELIS T2-W-200; T2-N-200 www.flowair.com |12...
- Page 13 Set for vertical installation should be screwed to the wall. In the air curtains holes screw 2 pin M8 (see section 6 and 7) and then screw the bracket to the air curtain. Pins should be screwed into the hole minimum 20mm thread length. ELIS Dimension A[mm] T2-..-100 965 +/-5 T2-..-150 1465 +/-5 T2-..-200 1965 +/-5 www.flowair.com |13...
-
Page 14: Control Systems
5. CONTROL SYSTEMS ELIS DUO control systems ensure listed possibilities: Independent steering air curtain section and unit heater section; Connecting miscellaneous equipment e.g.: room thermostat* step switch*, valve with actuator*, door contact*; Set idle or/and time delay speed;... -
Page 15: Control Systems And Power Supply Connecting
While connecting DUO or R – type ELiS dismount left side panel and left front panel, cables protract by glands. While connecting T – type ELIS open bottom panel, cables protract by glands. 5.3. ELIS DUO CONTROL SYSTEM Power supply 230V/50Hz ... -
Page 16: Set Time Delay Of Idle Speed S1 And Valve Actuator Operating S4
■ Switch up position – or room thermostat with 3-speed fan switch TS. Unit heater sections by room thermostat with 3-speed fan switch TS. S3 – default mode: DUO 1 Operating scheme Ts – set temperature Tm – measured temperature www.flowair.com |16... - Page 17 TS K - room thermostat with 3-speed fan switch TS who controls air curtain should be mounted close to doorway, at the 1,5m height. www.flowair.com |17...
-
Page 18: Electric Scheme Elis Duo
B – Return pipe water supply a – blue b – black c – brown 5.3.5. ELIS DUO UNITS – CONNECTING AMONG THEMSELVES Electrical connecing execute with: ver. 1.1 - OMY 12x0,5mm ver. 1.2* - OMY 2x0,5mm Connecting Elis Duo units among themselves ensure transfer of controlling signals. -
Page 19: Elis R And T - Af-Type Control System
□ □ ■ ■ ■ 6 min. 30 sec. □ ■ ■ ■ 7 min. □ ■ ■ ■ ■ 7 min. 30 sec. □ Switch down position ■ Switch up position S1, S4 – default mode 0. www.flowair.com |19... -
Page 20: S3 Operation Mode Set
Should be chosen while unit is controlled by: □ □ □ – door contact and room thermostat with step switch TS. □ Switch down position ■ Switch up position Operating scheme Ts – set temperature Tm – measured temperature www.flowair.com |20... -
Page 21: Af Electric Scheme
1.2* - OMY 2x0,5mm Connecting Elis with AF – type units among themselves ensure transfer of controlling signals. Whatever each elis duo need to be supplied directly with 230V. * chaining of air curtains for control system version 1.2, chapter 5.4.9 www.flowair.com |21... - Page 22 4) Turn on power supply – Green light indicate saving the settings 5) Turn off power supply; 6) Move all dipstitches in 0 position (down) AF – REJESTRY BMS 7) Turn on power Supply: controller is programmed to operate. www.flowair.com |22...
- Page 23 In the case of use address whose extend 9999 (not all visualization programs allow read and write above 9999 addresses), it is needed to obtain record’s second address by subtracting 55536 figure from the values in the table above. www.flowair.com |23...
- Page 24 □ □ □ □ □ □ □ □ 5) Electrical connection should be executed with OMY 2x0,5mm2 cable. Besides, each air curtains should be supplied with current separately. 8) Turn on power Supply: controller is programmed to operate. www.flowair.com |24...
-
Page 25: Elis R And T - L-Type Control System
– switch closed) Actuator of valve SRS3d (OMY 3x0,5mm or SRS (OMY 2x0,5mm A – Exchanger water supply AB – Valve water supply B – Return pipe water supply a – blue b – black c – brown www.flowair.com |25... -
Page 26: L-Type Control System
Whatever each curtain need to be supplied directly with 230V. Switch 4 should be set in positions: ■□ – as a MASTER mode □■ – as a SLAVE mode (unit operating depends on other curtain) www.flowair.com |26... -
Page 27: Door Contact Installation
For the time of performing inspection or cleaning the device, electrical power supply should disconnected. In case water is drained from the device for a longer period of time, the exchanger tubes should be emptied with compressed air. www.flowair.com |27... -
Page 28: Filters Replacement
Made in Poland 2. Dismount holding latches. Made in EU ELIS: DUO; R1-W-100; R1-N-100; R3-W-100; R3-N-100 Manufacturer: FLOWAIR GŁOGOWSKI I BRZEZIŃSKI SP.J. ul. Chwaszczyńska 133A, 81-571 Gdynia phone. +48 58 669 82 20, fax.: +48 58 627 57 21 e-mail: info@flowair.pl... - Page 29 |29...
