Page 1: Operation Manual

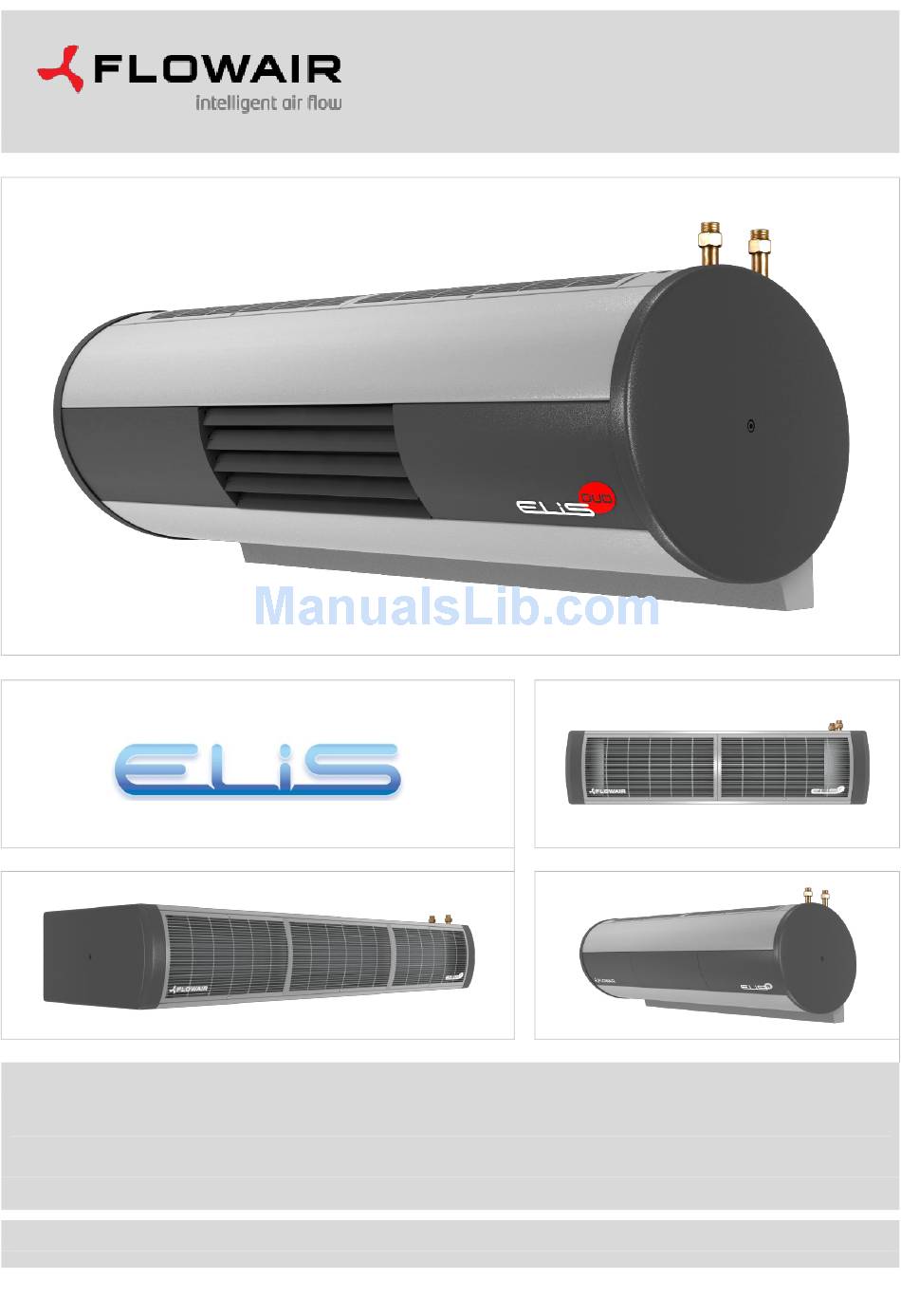

TECHNICAL DOCUMENTATION OPERATION MANUAL DTR ELIS DUO/R/T /6.0/2013.02.15/EN... -
Page 2: Table Of Contents
3. HEAT OUTPUT DATA ..............6 ensure correct operation of the equipment, get thoroughly 3.1. AIR CURTAIN - FAN HEATER ELIS DUO ......6 3.2. AIR CURTAIN ELIS R1-W-100 ..........7 acquainted with this manual and keep it for the future. -
Page 3: General Information
ELIS T2-N-200 ELIS R3-W-100 curtain without heat exchanger (ambient); max. range 3,5m. curtain with water heat exchanger max. range 3,5m; air inlet; curtain air outlet; heater air outlet (ELIS DUO only) 2. TECHNICAL DATA R3-W- R3-N- R1-W-... -
Page 4: Dimensions
T2-W-200; T2-N-200 T2-W-150; T2-N-150 T2-W-100; T2-N-100 56dB(A) 53dB(A) 58dB(A) 49dB(A) 46dB(A) 51dB(A) 45dB(A) 42dB(A) 47dB(A) Acoustic pressure level measured in the room of average sound absorption, capacity 500m , at the distance of 3m apart of the unit. www.flowair.com |4... -
Page 5: Air Volume
800m 400m 1200m 850m 1020m 1650 m 2400 m 2.5. NOMOGRAM OF AIR FLOW SPEED ELIS DUO air curtain section ELIS DUO fan heater section distance [m] distance [m] ELIS R1-W-100; R1-N-100 ELIS R3-W-100; R3-N-100 distance [m] distance [m] ELIS T2-W-100; T2-N-100 ELIS T2-W-150;... -
Page 6: Heat Output Data
3. HEAT OUTPUT DATA 3.1. AIR CURTAIN - FAN HEATER ELIS DUO Air curtain section Δpw Δpw °C °C °C Tw1 / Tw2 = 90/70 Tw1 / Tw2 = 80/60 12,1/14,9/17,2 42/37/34 10,4/12,8/14,8 36/32/29 11,2/13,7/15,9 44/40/37 9,5/11,7/14,8 38/35/32 10,3/12,6/14,7 max.1141 max.12,8... -
Page 7: Air Curtain Elis R1-W-100
32/31/30 V – air flow Tw1 – inlet water temperature PT – heating capacity Tw2 – outlet water temperature Tp1 – inlet air temperature Qw – heating water stream Tp2 – outlet air temperature Δpw – water pressure www.flowair.com |7... -
Page 8: Air Curtain Elis T2-W-100
28/27/26 V – air flow Tw1 – inlet water temperature PT – heating capacity Tw2 – outlet water temperature Tp1 – inlet air temperature Qw – heating water stream Tp2 – outlet air temperature Δpw – water pressure www.flowair.com |8... -
Page 9: Air Curtain Elis T2-W-200
4. INSTALLATION Width of doorway must be equal or lower than width of air curtain While mounting ELiS DUO or ELiS R side by side it is outlet (or outlets if air curtains are installed side by side). important to start from right side (like is shown below), all electrical conntection should be done before installing following curtain. -
Page 10: Mounting By Rods Under The Ceiling
6x threaded rod M8 8x nut M8 2x short spacer sleeve 3x short spacer sleeve 4x threaded rod M8 2x long spacer sleeve 3x long spacer sleeve 4x spacer sleeve www.flowair.com |10... -
Page 11: Stages Of Instalation
4.5. STAGES OF INSTALATION ELIS DUO; R1-W-100; R1-N-100; R3-W-100; R3-N-100 ELIS T2-W-100; T2-N-100 www.flowair.com |11... - Page 12 ELIS T2-W-150; T2-N-150 ELIS T2-W-200; T2-N-200 www.flowair.com |12...
-
Page 13: Vertical Installation With Brackets
Set for vertical installation should be screwed to the wall. In the air curtains holes screw 2 pin M8 (see section 6 and 7) and then screw the bracket to the air curtain. Pins should be screwed into the hole minimum 20mm thread length. ELIS Dimension A[mm] T2-..-100 965 +/-5 T2-..-150 1465 +/-5 T2-..-200 1965 +/-5 www.flowair.com |13... -
Page 14: Control Systems
5. CONTROL SYSTEMS ELIS DUO control systems ensure listed possibilities: Independent control of air curtain section and unit heater section; Connecting miscellaneous equipment e.g.: room thermostat* step switch*, valve with actuator*, door contact*; Set idle or/and time delay speed;... -
Page 15: Connecting Guide - Elis Duo
5.2. CONNECTING GUIDE - ELIS DUO While connecting DUO or R – type ELiS dismount left side panel and left front panel, cables protract by glands. While connecting T – type ELIS open bottom panel, cables protract by glands. -
Page 16: Elis Duo Control System
5.3. ELIS DUO CONTROL SYSTEM Power supply 230V/50Hz Air curtain section fan power supply Unit heater section fan power supply Valve actuator Air curtain control panel Unit heater control panel Master / Slave connection Signalize led: ... -
Page 17: Set Time Delay Of Idle Speed S1 And Valve Actuator Operating S4
– or room thermostat with 3-speed fan switch TS. Switch up position Unit heater sections by room thermostat with 3-speed fan switch TS. S3 – default mode: DUO 1 Operating scheme Ts – set temperature Tm – measured temperature www.flowair.com |17... - Page 18 TS K - room thermostat with 3-speed fan switch TS who controls air curtain should be mounted close to doorway, at the 1,5m height. www.flowair.com |18...
-
Page 19: Electric Scheme Elis Duo
RJ socket), or use 2. Cable equipped with RJ plugs; Connecting Elis Duo units among themselves ensure transfer of controlling signals. Whatever each EliS Duo need to be supplied directly with 230V. Description of configuration in chapter 5.4.9 www.flowair.com |19... -
Page 20: Elis R And T - Af-Type Control System
3. Set (depending on needs) additional settings (S1, S2, S4) ATTENTION: *K 1 - main signal (turning on unit) from TS or DCe/DCm; **K 2 - main signal (turning on unit) from DCe/DCm; ***Multiply settings on S1, S2, S3, S4 from Master unit. www.flowair.com |20... -
Page 21: Set Time Delay Of Idle Speed S1 And Valve Actuator Operating S4
1 2 3 4 Description Should be chosen while unit is controlled by: – door contact and room thermostat with step switch TS. Switch down position (Ts – set temperature, Tm – measured temperature) Switch up position Operating scheme www.flowair.com |21... -
Page 22: Af Electric Scheme
(unscrew RJ socket), or 2. Cable equipped with RJ plugs; Connecting Elis with AF – type units among themselves ensure transfer controlling signals. Whatever each air curtain need to be supplied directly with 230V. Description of configuration in chapter 5.4.9. www.flowair.com |22... -
Page 23: Af Control System - Bms Connecting
5) Turn off power supply; 6) set all dip switches (S1, S2, S3, S4) in down position; 7) Turn on power supply - unit is ready for to operate mode choose, set it on dip switch S3 for each Elis unit. www.flowair.com |23... -
Page 24: Af Control System - Bms Records
In the case of use address whose extend 9999 (not all visualization programs allow read and write above 9999 addresses), it is needed to obtain record`s second address by subtracting 55536 figure from the values in the table above. www.flowair.com |24... -
Page 25: Af Control System - Master-Slave Connecting
8) Turn on power supply - unit is ready to operate mode choose, set it on dip switch S3 (and additional settings S1, S2, S4) for each Elis unit. Each air curtain must have the same configuration of those dip switches. www.flowair.com |25... -
Page 26: Elis R And T - L-Type Control System
Valve with actuator SRS3d (OMY 3x0,5mm2) or SRS (OMY 2x0,5mm2) A – Exchanger water supply AB – Valve water supply B – Return pipe water supply a – blue b – black c – brown www.flowair.com |26... -
Page 27: L-Type Control System
Whatever each curtain need to be supplied directly with 230V. Switch 4 should be set in positions: – as a MASTER mode – as a SLAVE mode (unit operating depends on other curtain) www.flowair.com |27... -
Page 28: Door Contact Installation
For the time of performing inspection or cleaning the device, electrical power supply should disconnected. In case water is drained from the device for a longer period of time, the exchanger tubes should be emptied with compressed air. www.flowair.com |28... -
Page 29: Filters Replacement
Made in Poland ELIS: DUO; R1-W-100; R1-N-100; R3-W-100; R3-N-100 Made in EU Manufacturer: FLOWAIR GŁOGOWSKI I BRZEZIŃSKI SP.J. ul. Chwaszczyńska 133A, 81-571 Gdynia phone. +48 58 669 82 20, fax.: +48 58 627 57 21 e-mail: info@flowair.pl... - Page 30 |30...
