Ethernet Connector Pinouts

LEDs

LEDs
Power LED: Green, steady on
Wireless Link LED: Yellow, blinking
Wireless Link LED: Yellow, off
Port 1 LED flashes (pauses and
repeats) 4 times
Ethernet Link LED: Green, steady on
Port 1 LED: Green, steady on
Port 1 LED: Green, blinking
Port 2 LED: Yellow, steady on
Port 2 LED: Yellow, blinking
WiBox2100E User Guide

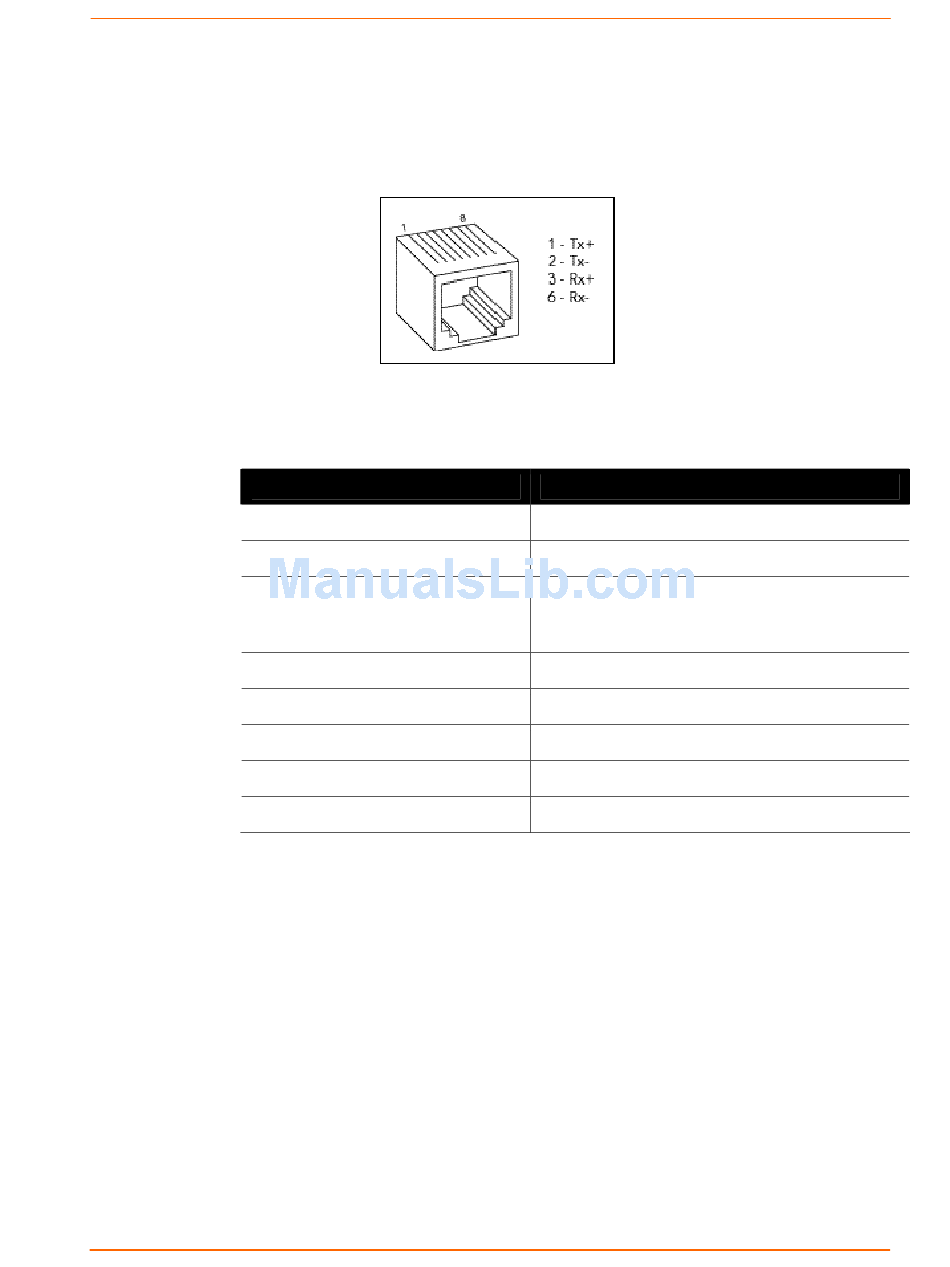

Figure 2-9. RJ45 Ethernet Connector

Table 2-1. WiBox LEDs

Meaning
Power is on
Active wireless connection, transmitting/receiving
No active connection, searching for network
connection
Active network connection.
Idle
Active TCP connection
Idle
Active TCP connection
Introduction
17
