5.4.1. Minuto Focus/Class test mode for USA

Z1
Z2
Z3
To enter Test Mode

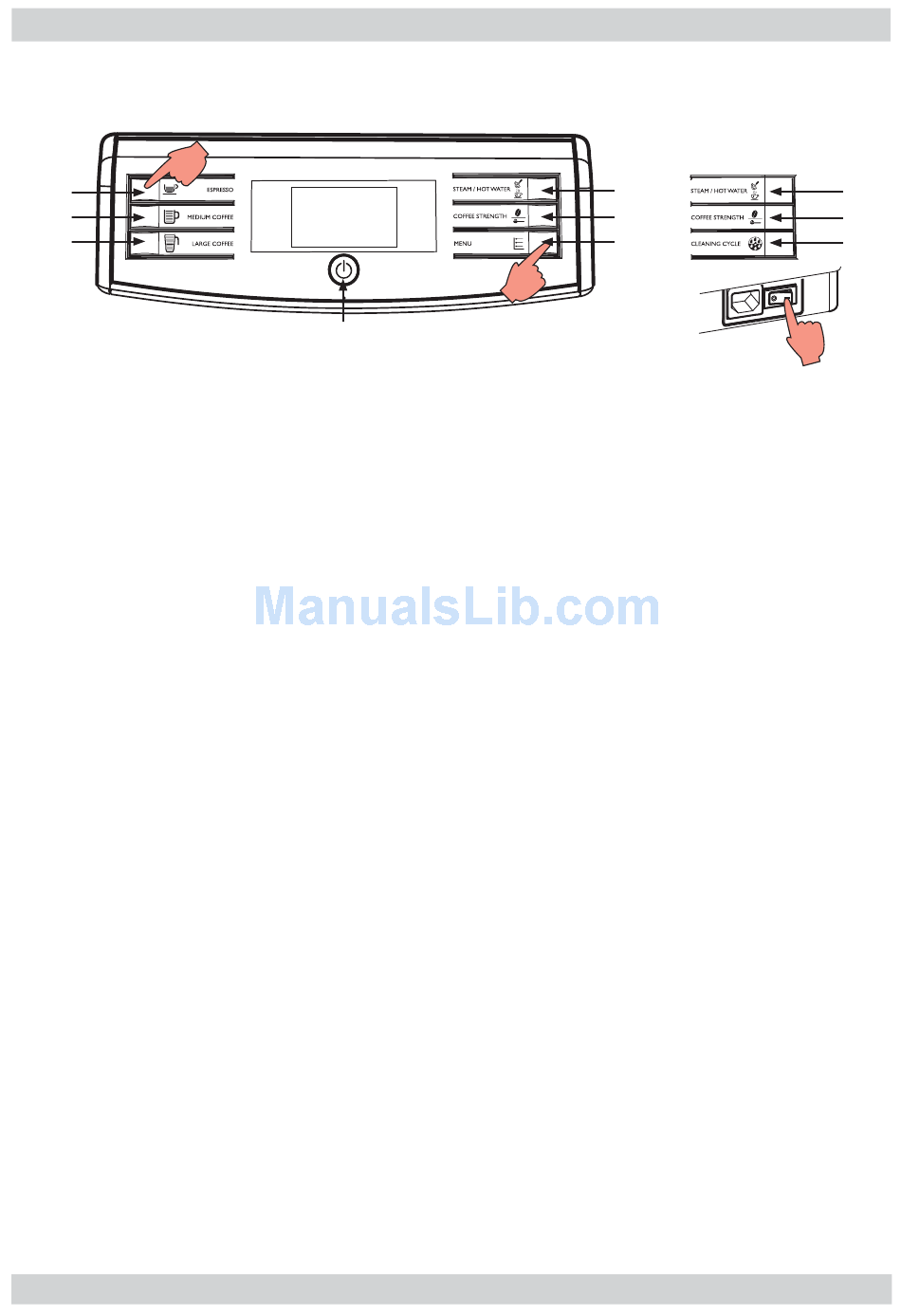

The machine enters Test Mode by holding pressed together Z1 and Z6 buttons (or Cleaning cycle
button in Focus version) while switching on the machine by mean of the main switch on the back-
side of the CA. Once entered in Test Mode, the display shows the fi rmware version.
The Test Mode is organized into 5 different pages :
Page 0: The display shows:
a) Firmware version.
b) CLASS or FOCUS type.
c) Voltage supply.
d) Main supply frequency.
Page 1: Keyboard and display's colour test:
a) Z1 button
b) Z2 button
c) Z3 button
d) Z4 button
e) Z5 button
f) Z6 button
g) Z7 button
h) Backlight colors
Page 2: Input signals test:
a) Water level sensor
b) Microswitch door closed/opened
c) Microswitch presence of the Brew Unit
d) Lever position on Espresso
e) Lever position on Drip
Page 3: Low voltage loads test:
a) Brew Unit movement upward and downward (24V DC)
Page 4: High/Low voltage loads test (Pump, E.Valve ) :
a) Pump (AC voltage)
b) Electro Valve (24Vdc) ( The door must be closed !!)
Page 5: High voltage loads test (Heater , Grinder ):
a) Heater (120-230V AC)
b) Grinder (170-320V DC)
CLASS
for USA
Z7
