VHF/AM SINGLE CHANNEL
TRANSCEIVER Model TiL-92-SC
(TSC-4100/4200/4300)
25 WATT TRANSCEIVER P/N 921018-1 (TSC-4100)
15 WATT TRANSCEIVER P/N 921018-2 (TSC-4200)
LOW POWER TRANSCEIVER P/N 921018-3 (TSC-4300)
Installation and
Operating Instructions
TiL Document No. 92RE125
Rev. L
AUGUST 2012
Technisonic Industries Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
Copyright by Technisonic Industries Limited. All rights reserved.
Advertisement
Table of Contents
Related Manuals for TIL TiL-92-SC TSC-4100
Summary of Contents for TIL TiL-92-SC TSC-4100
-
Page 1: Operating Instructions

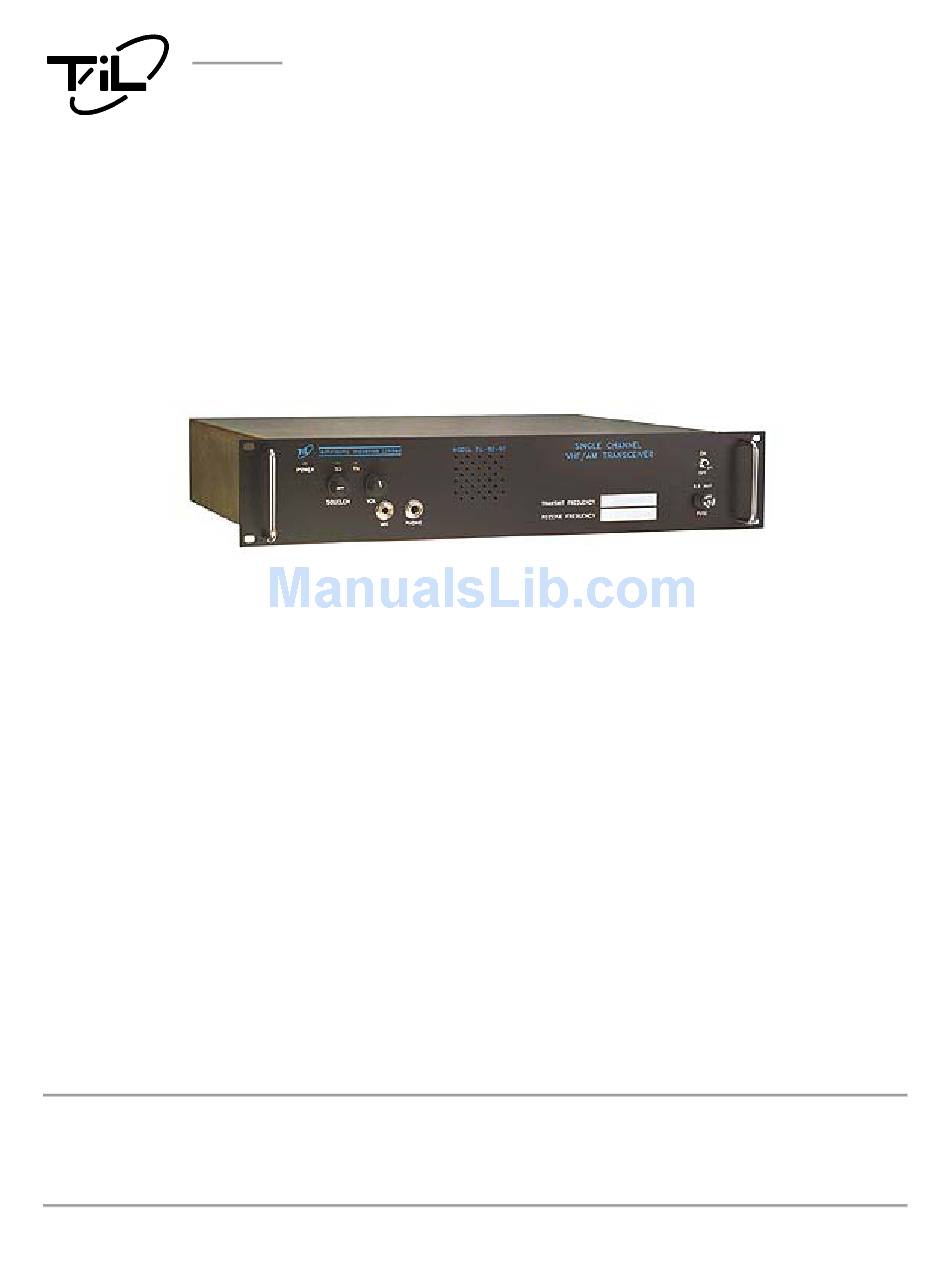

25 WATT TRANSCEIVER P/N 921018-1 (TSC-4100) 15 WATT TRANSCEIVER P/N 921018-2 (TSC-4200) LOW POWER TRANSCEIVER P/N 921018-3 (TSC-4300) Installation and Operating Instructions TiL Document No. 92RE125 Rev. L AUGUST 2012 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca... - Page 3 REVISION HISTORY [ 92RE125 ] SECTION Edited DESCRIPTION DATE - PAGE - Original Document 2-11 R6 functional description revised, formerly incorrect. 2-13 R6 description revised, formerly incorrect. JUN 23/2000 1-1,2 Changes to description in para. 1.2 To include information on new dual conversion receiver. Note at bottom of page regarding 2-wire only capability of RJ-11.
- Page 4 iiii...
- Page 5 WARNING Do not make physical contact with antenna when transmitter is on. CAUTION ! STATIC SENSITIVE ! This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling printed circuit boards. FCC COMPLIANCE INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 7: Table Of Contents
Receiver Operation (Local Mode) ..................3-6 3.4.3 Switching OFF ........................3-7 3.4.4 External DC Operation ...................... 3-7 WARRANTY ............................Appendix A..TDP-90 Programming Software User’s Guide (for USB) ..........A-1 TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... - Page 8 Frequency Selection kHz ......................2-8 Remote Control Connector Functions ..................2-9 Remote Control Board P/N 923051-1 Settings ................ 2-10 Remote Control Board P/N 943180-1 Settings ................ 2-11 Operator's Switches, Controls and Indicators ................3-3 TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions...
-
Page 9: General Description
INTRODUCTION This publication provides general information on the VHF/AM Single Channel Transceivers, Model TiL-92-SC, Part Nos. 921018-1, 921018-2, and 921018-3 manufactured by Technisonic Industries Limited. These units are also referred to by Item No.'s TSC-4100, TSC-4200 and TSC- 4300 respectively. This document covers the configuration of this equipment that utilizes either of the following remote control cards;... -
Page 10: Transceiver Module
Board provides all interconnection between the three external remote control connectors, RF Amplifier Module, Power Supply, Remote Control Board, and Transceiver. The Remote Control Boards, RF Isolator and all internal fuses are mounted on the Mother Board. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 11: Remote Control Boards
20 dB of isolation between the antenna and RF Amplifier while providing 0.7 dB (Max.) insertion loss. The RF isolator is located on the motherboard and is now provided in all 92-SC equipment. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 12: Modes Of Operation
21.6 Vdc to 30 Vdc for 15 watt and 25 watt configurations and within the range of 11.5 Vdc to 15.0 Vdc for Low power configurations. TECHNICAL SUMMARY A summary of electrical, operational, mechanical and physical characteristics of the Single Channel Transceivers are provided in Tables 1.2. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 13: Sc Leading Particulars
Dimensions & Weight: Width ………………………………………………………………………...…. 483 mm (19.0 in) MAX Height ……………………………………………………………………………... 89 mm (3.5 in) MAX Depth …………………………………………………………………………... 432 mm (17.0 in) MAX Weight ………………………………………………………………………….…. 6.3 Kg (14 lbs) MAX TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... - Page 14 Audio Frequency Response 300 Hz-2500 Hz ………………………………………….….. +1 -3 dB Audio Acquisition Time ………………………………………………………….. Less than 50 msecs Audio Squelch Characteristics: Squelch Type ………………………………………………….. Noise and Carrier Operated Carrier Operated Squelch ……………………………………….. Adjustable 2 to 15 µvolts TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions...
-
Page 15: Preparation For Use And Storage
Move the transceiver module slightly back from the front panel and disconnect the flat cable connecting the front panel assembly to the transceiver module, audio interface board A3. The connector is located on the A3 board. Lift transceiver module clear of chassis. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... - Page 16 TECHNISONIC INDUSTRIES LIMITED www.til.ca Figure 2.1 Single Channel Transceiver - Internal View TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions...
-
Page 17: Remove/Replace Control Board
Mother Board using the four mounting holes and standoffs as a guide. Secure control board to the Mother Board standoffs with four screws and washers. Replace dust cover as described in paragraph 2.2.1 TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 18: Single Channel Memory Set Board Module A5A1 – With Crystal Filter Option
TECHNISONIC INDUSTRIES LIMITED www.til.ca Figure 2.2 Single Channel Memory Set Board Module A5A1 - with Crystal Filter Option TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 19: Remove/Replace Crystal Filter Board, P/N 923069
Early radios have their frequencies programmed by a diode matrix as described in Section 2.3.3. For radio units shipped after July 2012 and equipped with a USB port, please refer to Appendix A (TiL TDP-90 Programming Software User’s Guide for USB Programmable AM Series Transceivers) - Document 11RE439. -
Page 20: Offset Frequency Set
If not repeat steps 1, 2, and 3. If it is, release the PTT and set jumper J15 to the Tx position, thus completing the frequency tuning. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 21: Frequency Selection Mhz
JUMPER LOCATION FREQUENCY (MHz) 20 MHz 10 MHz 8 MHz 4 MHz 2 MHz 1 MHz LEGEND: 0 = JUMPER BETWEEN CENTRE AND 0 1 = JUMPER BETWEEN CENTRE AND 1 TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 22: Frequency Selection Khz
DIODE LOCATION FREQUENCY (kHz) 800 kHz 400 kHz 200 kHz 100 kHz 50 kHz 25 kHz LEGEND: 0 = JUMPER BETWEEN CENTRE AND 0 1 = JUMPER BETWEEN CENTRE AND 1 TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 23: Remote Operation Setup
RJ-11 are connected parallel to pins 9 and 21 on the 25 pin connector. This RJ-11 jack CANNOT be used if the remote control card is set to 4-wire operation as it does not have the necessary connections. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 24: Remote Control Board P/N 923051-1
(*) P/N 923051-1 with Rev N and up (Aug 2006) has SW2 and J6 removed. The SW2 function is now hard wired in the landline current loop keying position and J6 is hard wired for external current loop. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-10... -
Page 25: Remote Control Board P/N 943180-1
Keying Tone Attenuator 1950 Tone level Adjustment 2175 Tone Level Adjustment Sets Rx Audio Level Adjustment (Range -15 dBm to +10 dBm). Sets Timeout Timer (Range 30 to 300 Seconds) TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-11... -
Page 26: Line Interface Remote Control Board P/N 923051-1 (Tli-203)
*The SW2 function is now hard wired in the landline current loop keying position and J6 is hard wired for external current loop. CAUTION: Ensure that the J7 jumper is set to the CLK IN position, otherwise damage may occur when transmitting. FIGURE 2.2 Line Interface/Remote Control Board P/N 923051-1 (TLI-203) TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-12... -
Page 27: Line Interface Remote Control Board P/N 943180-1 (Tli-180)
Rx Audio level adjustment (-10 dBm) Input Connector R64: Time out timer (90 sec default) Output Connector NOTE: Bold Italics indicate Factory default configurations. FIGURE 2.3 Line Interface/Remote Control Board P/N 943180-1 (TLI-180) TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-13... -
Page 28: Optional Loudspeaker, Headphone Installation
Section 3 of this document and the appropriate specified operating procedures for use with the Remote Control Unit. STORAGE To store for an extended period, store unit in a dry place, in the original shipping container. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-14... -
Page 29: Transceiver Adjustments And Settings
TECHNISONIC INDUSTRIES LIMITED www.til.ca Figure 2.5 Transceiver Adjustments and Settings TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-15... - Page 30 TECHNISONIC INDUSTRIES LIMITED www.til.ca This page left intentionally blank. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions 2-16...
-
Page 31: Introduction
A view of the front and rear panel is given in Figure 3.1. A functional description of each of the operator's switches, controls and indicators, and the microphone PRESS-TO-TALK switch, is given in Table 3.1, Operator's Switches, Controls and Indicators. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 32: Single Channel Transceiver Controls And Indicators
TECHNISONIC INDUSTRIES LIMITED www.til.ca Figure 3.1 Single Channel Transceiver Controls and Indicators TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... - Page 33 MIC/PTT A standard 0.2 inch 3-pole jack is provided to connect a microphone with PTT to CONNECTOR the transceiver front panel. TX LABEL Indicates the frequency programmed for transmit. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions...
- Page 34 RJ-11 type connector provides parallel connection to the 2-Wire Tx/Rx audio from CONNECTOR remote/line interface board. This connector supports 2 wire operation only. * Denotes items located on rear panel. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions...
-
Page 35: Transmitter Operation (Local Mode)
When message is ended, release the PRESS-TO-TALK switch of the microphone. The transceiver is now operating in the receive mode. Verify that the Tx ON amber LED is OFF. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 36: Receiver Operation (Local Mode)
SPEAKER/PHONE jack of the transceiver, internal loudspeaker automatically disconnected. The VOLUME control will now control the audio level applied to the external loudspeaker or headset, as applicable. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... -
Page 37: Switching Off
30 Vdc. The 15 watt and 25 watt units can operate within the range 21.6 Vdc to 30 Vdc. The Low power units can operate within the range of 11.5 Vdc to 15.0 Vdc. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions... - Page 38 TECHNISONIC INDUSTRIES LIMITED www.til.ca This page left intentionally blank. TSC-4100/4200.4300 92-SC TiL 92RE125 Rev L Installation & Operating Instructions...
- Page 39 Technisonic. This Warranty shall not be transferable or assignable to any other persons, firms or corporations. For warranty registration please complete the on-line Warranty Registration Form found at www.til.ca.
-
Page 41: Programming Software
Canadian Government, or to the United States Government, this document may not in whole or in part, be duplicated or disclosed or used for manufacture of the part disclosed herein, without the prior permission of Technisonic Industries Ltd. TiL TDP-90 Programming Software User’s Guide... - Page 42 This page left intentionally blank.
- Page 43 NOTE: The images in this document are examples only and may not reflect your particular data settings, or current TDP software version. The TDP-90 programming software can be found under the “Programming Software” link at http://www.til.ca/ SOFTWARE INSTALLATION Note: The USB driver must be installed before attempting to use the TDP-90 software.
- Page 44 APPENDIX A 11RE439 Rev A GETTING STARTED To start the TDP 90 program, double click the TDP90 icon on the desktop. The following Graphical User Interface will appear. The current version number is shown in square brackets on the title bar. MAIN GRAPHICAL USER INTERFACE Figure 1...
- Page 45 APPENDIX A 11RE439 Rev A ICONS AND PULL DOWN MENUS The icons and pull-down menus provide the set-up and operating functions. The Channels pull-down tab provides selection for single or six channel transceivers (use the 6 channel window for 4 channel transceivers). The number of channels in the Frequency editing window changes accordingly.
- Page 46 APPENDIX A 11RE439 Rev A FILE MENU Figure 3 Open will allow you to select and load an existing file that was previously saved on disk. The yellow folder icon provides the same function in a single mouse click. Save will allow you to save the current data into a file with a name of your choice. The filename may be any length up to 64 characters.
- Page 47 APPENDIX A 11RE439 Rev A DATA MENU Figure 4 Download (to Radio) instructs the TDP 90 software to transfer the frequency data in the list to the memory channels in the connected AM transceiver. The Dn icon provides the same function in a single mouse click.
- Page 48 APPENDIX A 11RE439 Rev A HELP MENU Figure 5 TDP-90 Help Contents opens the Windows Help dialog for the TDP-90 software. Here, you will find hardware connection and operating information as well as troubleshooting tips and answers to some Frequently Asked Questions. About selection displays Technisonic company and contact information as well as the revision number of the TDP software in the “Terminal window”...
- Page 49 APPENDIX A 11RE439 Rev A CHANNEL SELECTION PULLDOWN 1 CHANNEL TRANSCEIVER Figure 6 6 CHANNEL TRANSCEIVER Figure 7 The x Channel(s) pull-down tab allows you to select for single or six channel AM transceiver use. The frequency editing window changes accordingly. The “W” indicates that the channels are 25kHz (Wide) channel spacing and as such, only channels in 25kHz increments are accepted.
- Page 50 APPENDIX A 11RE439 Rev A SAMPLE UPLOAD AND DOWNLOAD Connect the transceiver to the computer USB port using a standard USB-A male to USB- B male cable. The USB port is located on the rear panel of mobile and base station transceivers and on the front panel of rack mount transceivers.
