TDFM-9200

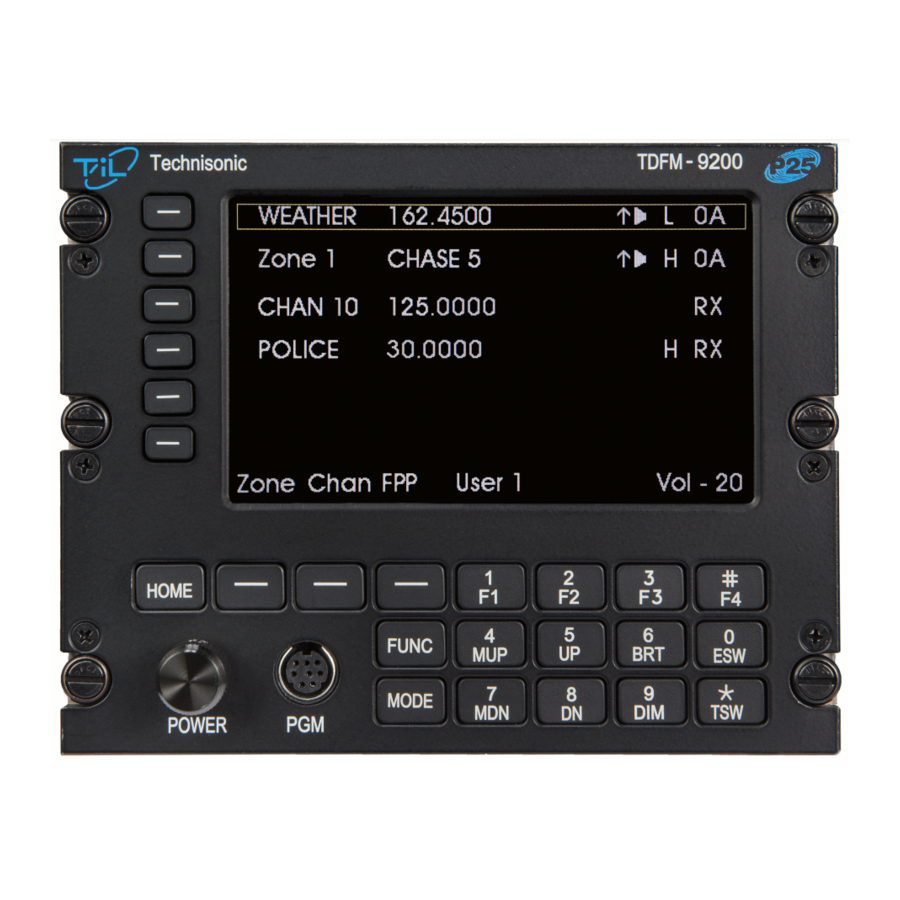

MULTIBAND P25 AIRBORNE TRANSCEIVER

Installation Instructions

TiL Document No. 13RE472
Rev. B
MAY 2014
Technisonic Industries Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
Copyright by Technisonic Industries Limited. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDFM-9200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TIL TDFM-9200

Summary of Contents for TIL TDFM-9200

  • Page 1: Installation Instructions

    TDFM-9200 MULTIBAND P25 AIRBORNE TRANSCEIVER Installation Instructions TiL Document No. 13RE472 Rev. B MAY 2014 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Copyright by Technisonic Industries Limited. All rights reserved.

  • Page 2: Revision History

    P/N in Section 2.4 Corrected. Added Antenna & Connector Locations as well as Band Display Orientation. 2-9 to 2-13 Updated Figures 2.4 – 2.8. Changed Format for Section Headers. Corrected Spelling & Grammar throughout document. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 3 Changes or modifications not expressly approved by Technisonic Industries could void the user’s authority to operate the equipment. This manual is designed to provide information about the TDFM-9200. Every effort has been made to make this manual as complete and accurate as possible.
  • Page 4 (end users) in support of regulatory agency approval. Please refer to the Technisonic website www.til.ca for the latest issue of available STCs and letter of authorization for use. Trademark Notices TDFM-9200 Transceivers contain two-way radio protocols licensed from Motorola, Inc.

  • Page 5: Table Of Contents

    ANTENNA TUNER CONTROL LINES: P1 (PINS 1, 2, 3, 4, 5, 6, 10, AND 12) ....... 2-8 2.22 ANTENNA SELECTION AND INSTALLATION CONSIDERATIONS........2-14 2.23 POST INSTALLATION EMI TEST ................... 2-15 APPENDIX A Support Notes ......................... 2-27 WARRANTY ............................2-29 TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 6 Wiring Connection Notes for the TDFM-9300 Transceiver ............2-13 LIST OF TABLES TABLE TITLE PAGE J1 25 Pin D Connections ......................2-3 J6 15 Pin High Density D Connections ..................2-4 J5 15 Pin High Density D Connections ..................2-4 TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...

  • Page 7: General Description

    AES and/or DES-OFB encryption with OTAR in any of the available modules. Bands 1 and 2 on the TDFM-9200 is not normally frequency agile. In order to have the ability to change the frequencies at the front panel, the FPP (front panel programming) option must be ordered for each band.
  • Page 8 The units are shipped set to operate on 28 Volt back lighting. Equipment can be set to operate on 5V back lighting by using the software based configuration menu. See Section 2.17 Configuration Menu in the TDFM-9200 Operating Instructions manual available at www.til.ca. Damage will not occur if the incorrect voltage is applied.

  • Page 9: Technical Characteristics

    12.5 kHz Channel Intermodulation * ** * Measured in digital mode per TIA / EIA IS 102.CAAA under nominal conditions. ** Measured in analog mode per TIA / EIA 603 under nominal conditions. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...

  • Page 10: General

    Third Order Intermodulation -70 dB Image Attenuation -60 dB FM Acceptance ± 6 kHz Hum and Noise Better than 40 dB Audio Distortion Less than 5% Antenna Conducted Emission Less than -70 dBm TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 11 Harmonic Attenuation -60 dB below carrier level Signal to Noise Ratio -35 dB Audio Input 50 mV at 2.5 kHz into 200 ohm input circuit for 30% modulation (adjustable) Audio Distortion Less than 5% TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 12 TECHNISONIC INDUSTRIES LIMITED This page left intentionally blank TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...

  • Page 13: Equipment Packing Log

    INSTALLATION The TDFM-9200 Transceiver is designed to be Dzus mounted and should be installed in conjunction with an IN-9300 installation kit. See Figure 2.1 for an outline drawing of the unit with dimensions to facilitate the installation.

  • Page 14: Outline Drawing

    TECHNISONIC INDUSTRIES LIMITED FIGURE 2.1 Outline Drawing for Model TDFM-9200 TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 15 TECHNISONIC INDUSTRIES LIMITED ANT 5 – VLO, VAM OR UAM ANT 1 ANT 2 ANT 3 – VLO, VAM OR UAM FIGURE 2.2 TDFM-9200 Antenna & Connector Locations BANDS FIGURE 2.3 TDFM-9200 Band Display Orientation TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...

  • Page 16: Installation - Pin Locations And Connections

    TX Data RX Data Ground Main Power +28 VDC Down Channel / Band Mic 5 Audio 5 PTT 5 Mic 6 Audio 6 PTT 6 Panel Backlighting TABLE 2.1 J1 (25 Pin D) Connections TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 17 Audio Ground 2 Audio Ground 5 Audio Ground 6 Audio Ground 3 Audio Ground 4 Audio 1 Audio Ground 1 Ground Audio Combined Ground 1 Audio Combined 1 TABLE 2.3 J5 (15 Pin HDD) Connections TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...
  • Page 18 No connection No connection No connection Band 5 - Tune Indicator Speaker 5 Band 5 - Tune Enable Ground PTT5 Mic 5 TABLE 2.4 Wire Connections on a 15 Pin [High-Density] FEMALE D Connector TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...

  • Page 19: Installation - Wiring Instructions

    MIC COMBINED 1 AND 2 – J6 PINS 7 AND 13 The combined mic inputs should be wired and shielded as the individual mic inputs above. These mic inputs that can be used for any band. Band selection is made at the TDFM-9200 front panel. 2.12 AUDIO 1, 2, 3, 4 –...

  • Page 20: Ptt 1, 2, 3, 5, 6, And 4 - J1 Pins 5, 8, 11, 21, 24, And J6 Pin 3

    Connect according to the manufacturer’s instructions. In the case of the FLX-3050B, the tune indicator (which is normally connected to a light) can be connected to pin 10 so that the tuning indication will show on the TDFM-9200 display. If a passive antenna is used, these lines shall remain unconnected.

  • Page 21: Wiring Connections For Individual Band Control With Separate Ground Returns

    TECHNISONIC INDUSTRIES LIMITED FIGURE 2.4 Wiring Connections for Individual Band Control with Separate Ground Returns. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B...

  • Page 22: Wiring Connections For Individual Band Control With A Single Ground Return

    TECHNISONIC INDUSTRIES LIMITED FIGURE 2.5 Wiring Connections for Individual Band Control with a Single Ground Return. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-10...

  • Page 23: Wiring Connections For Combined Band Control With Separate Ground Returns

    TECHNISONIC INDUSTRIES LIMITED FIGURE 2.6 Wiring Connections for Combined Band Control with Separate Ground Returns. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-11...

  • Page 24: Wiring Connections For Combined Band Control With A Single Ground Return

    TECHNISONIC INDUSTRIES LIMITED FIGURE 2.7 Wiring Connections for Combined Band Control with a Single Ground Return. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-12...
  • Page 25 TECHNISONIC INDUSTRIES LIMITED FIGURE 2.8 Wiring Connection Notes for the TDFM-9200 Transceiver TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-13...

  • Page 26: Antenna Selection And Installation Considerations

    When single band modules are installed, a single band antenna should be used. If the TDFM-9200 has more than one single band module installed that are on different frequency bands, a single multiband antenna with separate connectors or a multiband antenna with a coupler can be used if the frequencies in use are not multiples of each other.

  • Page 27: Post Installation Emi Test

    2.23 POST INSTALLATION EMI TEST PURPOSE The purpose of this test is to identify any interference that the TDFM-9200 transceiver may cause with existing aircraft systems. TEST CONDITIONS The TDFM-9200 transceiver should be installed and function tested. The antenna VSWR should be checked.
  • Page 28 TECHNISONIC INDUSTRIES LIMITED PROCEDURE Operate the TDFM-9200 transmitter on the following frequency for at least 20 seconds. Observe the GPS for any degradation in satellite status or availability or flags. FREQUENCIES GPS #1 GPS #2 TDFM-9200 PASS FAIL PASS FAIL 143.2125 MHz...
  • Page 29 Determine if the image frequency for the VHF Comm falls within the range of the TDFM- 9200. If so, select a set of frequencies that will cause the TDFM-9200 to be set as close as possible to the image frequency. Any one of the many possible sets will suffice.
  • Page 30 TECHNISONIC INDUSTRIES LIMITED NOTES: TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-18...
  • Page 31 Determine if the image frequency for the VOR/ILS Nav falls within the range of the TDFM- 9200. If so, select two sets of frequencies that will cause the TDFM-9200 to be set as close as possible to the image frequency. Choose one set in the localizer frequency range and one in the VOR frequency range.
  • Page 32 ILS to be used. Divide the glide slope frequency by 2 and program into the TDFM-9200. Fly the aircraft to intercept the localizer and glide slope (both needles centered) at 26 nm from the runway. Transmit on the TDFM-9200 for 10 seconds and watch for any deflections or flags.
  • Page 33 334.7 (108.1) 167.35 334.7 (108.1) 33.4700 NOTES: Operate the TDFM-9200 transmitter on the following frequency for at least 20 seconds. Observe the Transponder for any spurious replies or loss of reply to test set. FREQUENCIES TRANSPONDER #1 TRANSPONDER #2 TDFM-9200...
  • Page 34 TECHNISONIC INDUSTRIES LIMITED Modulate the TDFM-9200 transmitter on the following frequencies for at least 20 seconds. Observe the DME displays. Look for loss of distance information on the display. FREQUENCIES RESULTS DME 1 TDFM-9200 PASS FAIL 978 (108.0) 1020 (112.1)
  • Page 35 Frequency #2 Frequency #3 At a safe altitude, engage the autopilot or stability augmentation system. Modulate the TDFM-9200 transmitter on the above frequencies for at least 20 seconds. Observe any effect on the autopilot or stability augmentation system. Observations: Perform a coupled ILS approach to the aircraft's certified limits. Modulate the TDFM-9200 transmitter on the above frequencies for at least 20 seconds.
  • Page 36 Glideslope 1 & 2 (UHF Lo, UHF Hi, and 800 MHz) VOR/LOC 1 & 2 (UHF Lo, UHF Hi, and 800 MHz) Compass Directional Gyro Fuel Pressure Oil Temp Amps Bus Voltage TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-24...
  • Page 37 TECHNISONIC INDUSTRIES LIMITED Fuel % Torque % Annunciators Digital Clock Oil Pressure DME 1 & 2 (VHF, UHF Lo, and 800 MHz) GPS 1 & 2 (UHF Lo and 800 MHz) TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-25...
  • Page 38 TECHNISONIC INDUSTRIES LIMITED STEP SYSTEM PASS FAIL NOTES NOTES: TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-26...

  • Page 39: Appendix A Support Notes

    For the latest Technical Information Bulletins refer to the Publication Index list under the section • for this model (login required). For the latest Software Release(s) refer to the Publication Index list under the section for this • model’s software/firmware history index (login required). TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-27...
  • Page 40 TECHNISONIC INDUSTRIES LIMITED NOTES TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-28...

  • Page 41: Warranty

    Technisonic. This Warranty shall not be transferable or assignable to any other persons, firms, or corporations. For warranty registration, please complete the on-line Warranty Registration Form found at www.til.ca. TDFM-9200 Installation Instructions TiL 13RE472 Rev. B 2-29...
