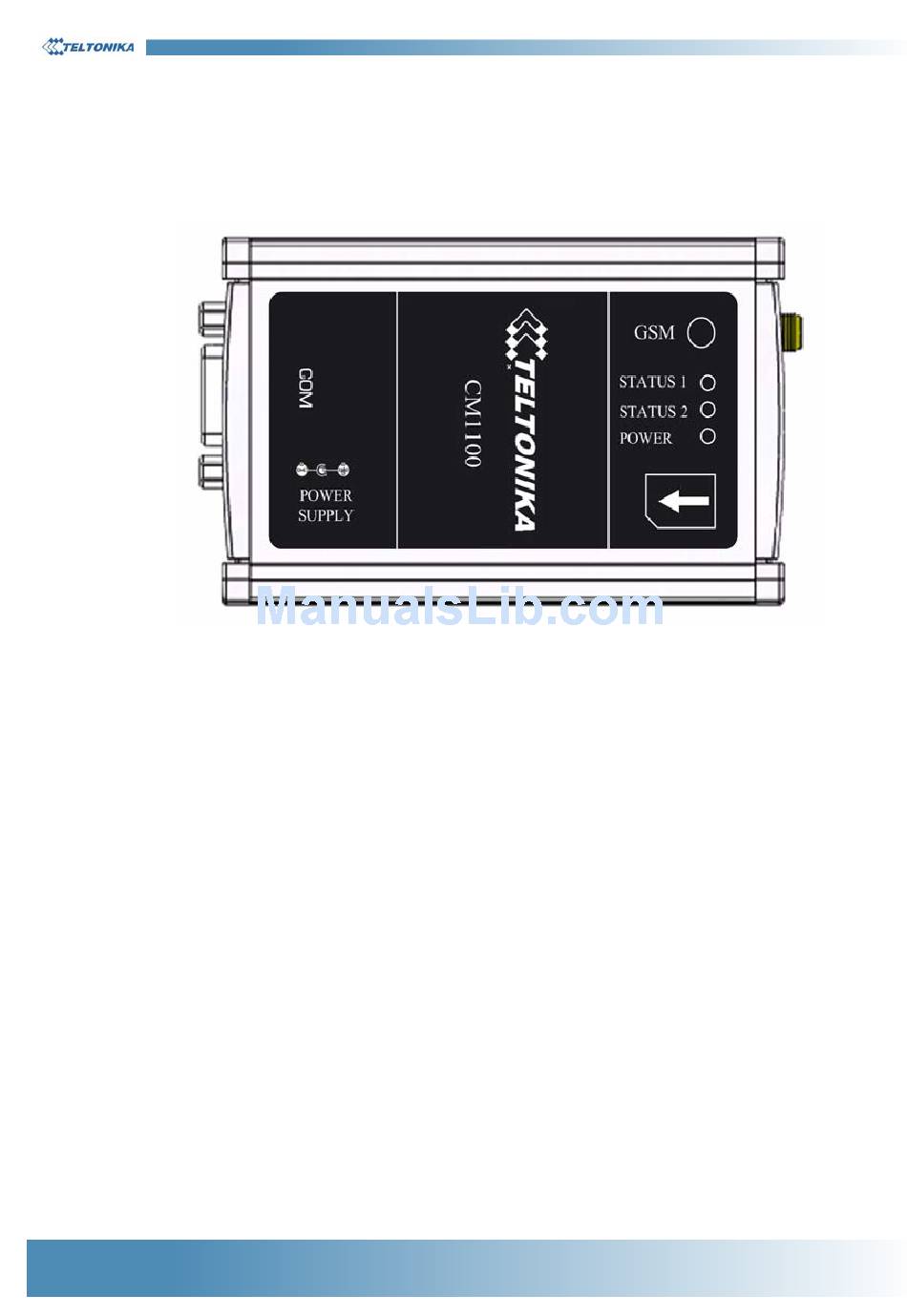

- Page 1 TELTONIKA ModemCOM/G10 (CM1100) User Manual V0.1...
-
Page 2: Table Of Contents
ModemCOM-TM2 User’ Manual v2.1.1.19 Table of Contents TABLE OF CONTENTS..........................2 ATTENTION..........................3 SAFETY INSTRUCTION ......................3 LEGAL NOTICE ...........................5 INTRODUCTION .........................5 PACKAGE CONTENTS......................5 TECHNICAL SPECIFICATIONS....................6 6.1 Data transferring ..........................6 6.2 Mechanical specifications.........................6 6.3 Electrical and operating specifications...................6 6.4 Indication............................7 6.5 Pins of DB9 (COM) connector.......................9 MODEM SETUP ..........................10 7.1 Connecting to the computer......................10 7.2 Installation of “Modem Control Tool”..................10... -
Page 3: Attention
To avoid burning and voltage caused traumas of the personnel working with the device, please follow these safety requirements. The device requires 9V power supply. The PC, to which the device “ModemCOM/G10” is to be connected, must have a COM port. Nominal power supply voltage is 9 V. Available power supply... - Page 4 ModemCOM-TM2 User’ Manual v2.1.1.19 The PC and power supply source, to which the device “ModemCOM-TM2” is connected should satisfy LST EN 60950-1 standards. The device can be used with the first (Personal Computer) or the second (Notebook) computer safety class. In the installation place and supply circuits the protective devices should be tooled up (bipolar release device) which will protect the device from short-circuit and grounding troubles (Picture 1.1).
-
Page 5: Legal Notice
This document will provide you with the instructions how to install and use „ModemCOM/G10“ and its software. „ModemCOM/G10“ is a device designed for data transmission via GSM Network. The design of this modem enables the connection to your PC through COM interface. „ModemCOM/G10“... -
Page 6: Technical Specifications
• SMS textual messages. 6.2 Mechanical specifications „ModemCOM/G10“ housing is made of metal. It is light and durable – suitable for using in home, office or industrial environment. The external dimensions and measures of the unit casing are: 100*60*31 mm. -
Page 7: Indication
Notice: if the settings outreach the characteristics given above the device can be damaged! 6.4 Indication On the „ModemCOM/G10“ modem were integrated 3 indicators: „POWER“ and 2 „STATUS“ indicators. They are located on the side of device. A LED indicator “Power“ is located on the side of ModemCOM/G10. - Page 8 ModemCOM-TM2 User’ Manual v2.1.1.19 A LED indicators “Status“ are located on the side of ModemCOM/G10. “Status“ LEDs LED Status Modem Description STATUS 1 (Green) Modem ready STATUS 1 (Green) Slow blink Initialization STATUS 1 (Green) Double blink Limited service PIN/PUK required...
-
Page 9: Pins Of Db9 (Com) Connector
ModemCOM-TM2 User’ Manual v2.1.1.19 6.5 Pins of DB9 (COM) connector Picture 6.5.1. Pins of COM port... -
Page 10: Modem Setup
Plug DB9 connector of the serial (RS232) cable into the modem. Plug another end of the serial cable to one of the COM ports of PC. Plug in the AC/DC adapter to power supply socket of “ModemCOM/G10”. Plug in the AC/DC adapter to power supply network. - Page 11 ModemCOM-TM2 User’ Manual v2.1.1.19 Step 5 – Click “Next” button Step 6 – Click “I Agree” button if agree with License Agreement. Step 7 - Click “Next” button...
- Page 12 ModemCOM-TM2 User’ Manual v2.1.1.19 Step 8 - Enter dial-up connection parameters and press “Next” in the opened dialog. Note: APN, user name and password are to be asked to your GSM operator! Step 9 - Click “Install” button. Step 10 – Connect the modem to the PC and click “OK”...
-
Page 13: Setting Up An Internet Connection
PC, the drivers are properly installed; • TCP/IP protocol is installed on your PC. When you are using “ModemCOM/G10“ you can get access to the Internet via one of this data transmission types: • GPRS packet data transfer. In this case you have to know “APN”, “user name and password”;... - Page 14 1. Start “Modem Control Tool” program. The program can be started from the PC desktop (or “Start -> Programs -> Teltonika -> ModemCOM G10 -> Modem Control Tool G10“) while clicking on the shortcut. When the shortcut will be clicked, “Modem Control Tool” dialog box will be opened.
- Page 15 ModemCOM-TM2 User’ Manual v2.1.1.19 3. To connect to the Internet, click “Connect” button: 4. The modem starts connecting to Internet after clicking on this button. When the modem connected to Internet, you will see message “Disconnect”; If you can not connect the Internet using Internet Explorer after using Modem follow these steps, click Start →...
-
Page 16: Sending Short Text Messages (Sms)
“OK” buttons. Now try to connect to Internet again. 7.4 Sending Short Text Messages (SMS) 1. Using „ModemCOM/G10“ it is possible to send and receive short text messages (SMS). It is obligatory to disconnect from the Internet, before starting to use this „ModemCOM/G10“... -
Page 17: Changing Security Settings
If you click Settings → Security, a Security window will open where you can enable or disable PIN code query. To set ModemCOM/G10 modem parameters or to change them, click Settings in the main Modem Control Tool window. If you click Main in the Settings window, you will be able to choose a modem from the list of modems installed in your PC. - Page 18 Insert Pin Code field and click OK. Now, the Modem Control Tool program will ask for the PIN code each time you connect the ModemCOM/G10 modem to your PC COM port To disable PIN code query, choose PIN Code Query Disabled in Security...
- Page 19 ModemCOM-TM2 User’ Manual v2.1.1.19 SMS center number is shown in Settings → SMS. To change Modem Control Tool program language, go to Settings → Application. In Application window choose the language from Set Language field and click Update Language.
- Page 20 ModemCOM-TM2 User’ Manual v2.1.1.19 Click About to see the Modem Control Tool program version and other Information.
-
Page 21: Acronyms
ModemCOM-TM2 User’ Manual v2.1.1.19 ACRONYMS AC/DC Alternating Current/Direct Current Access Point Name Circuit Switched Data Circuit Switched Fax GPRS General Packet Radio Service Global System for Mobile communications IMEI International Mobile Equipment Identity Internet Service Provider Light Emitting Diode Operating System Packet Data Protocol Personal Identification Number Subscriber Identity Module... -
Page 22: Technical Support
If you have faced some problems using the device, which you are not able to solve by yourself, you are always welcome to address our technical support department by e-mail support@teltonika.lt We will be very glad to help you.
