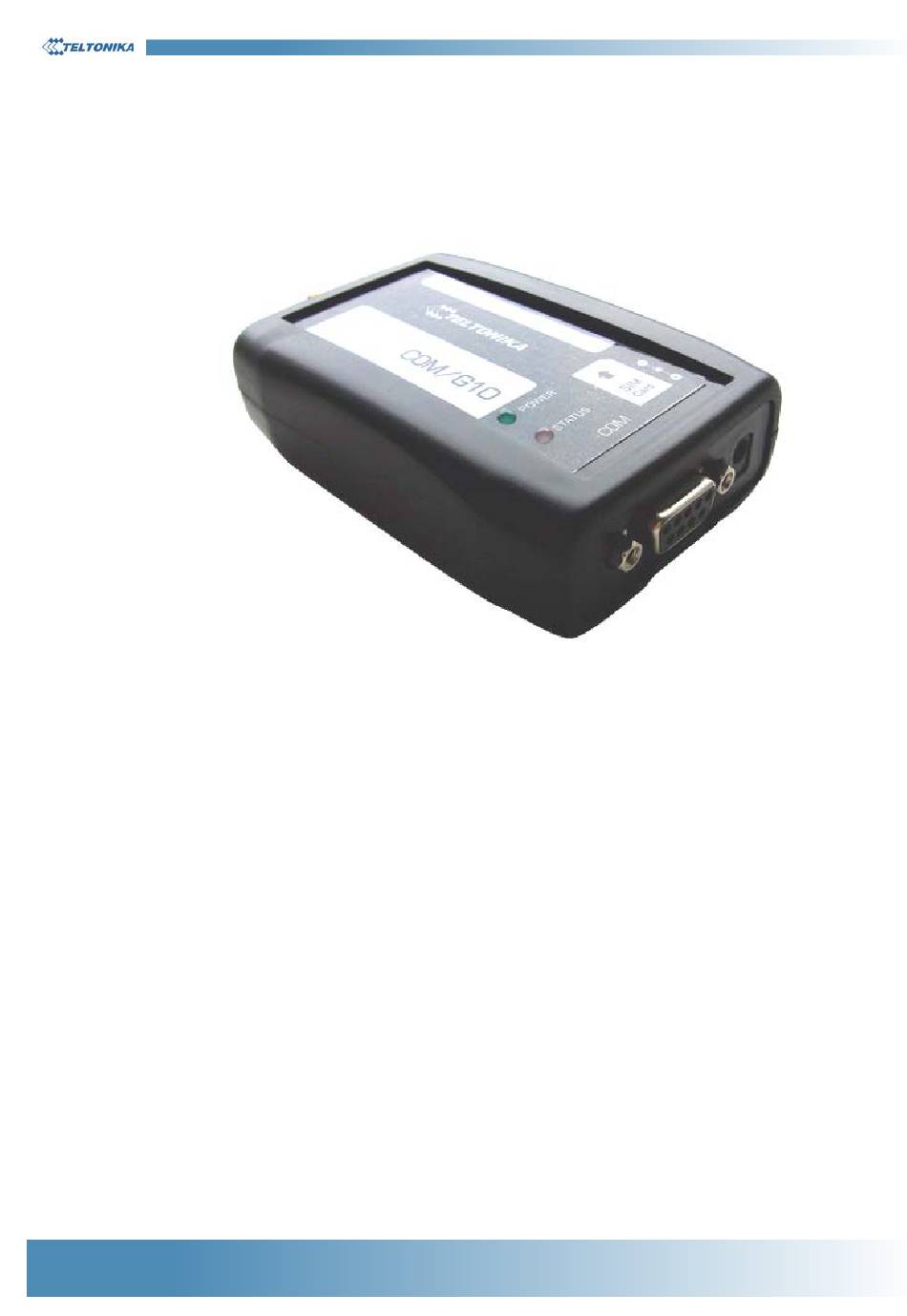

- Page 1 TELTONIKA ModemCOM/G10 (CM100) User Manual V0.1...
-
Page 2: Table Of Contents
ModemCOM-TM2 User’ Manual v2.1.1.19 Table of Contents TABLE OF CONTENTS..........................2 ATTENTION..........................3 SAFETY INSTRUCTION ......................3 LEGAL NOTICE ...........................5 INTRODUCTION .........................5 PACKAGE CONTENTS......................5 TECHNICAL SPECIFICATIONS....................6 6.1 Data transferring ..........................6 6.2 Mechanical specifications.........................6 6.3 Electrical and operating specifications...................6 6.4 Indication............................7 6.5 Pins of DB9 (COM) connector.......................8 MODEM SETUP ..........................9 7.1 Connecting to the computer......................9 7.2 Installation of “Modem Control Tool”..................9... -
Page 3: Attention
ModemCOM-TM2 User’ Manual v2.1.1.19 ATTENTION Do not rip the device. Do not touch the device if the device is broken or his connecting wires are without isolation All wireless devices for data transferring may be susceptible to interference, which could affect performance. Only qualified personnel may install or repair this product. - Page 4 ModemCOM-TM2 User’ Manual v2.1.1.19 The PC and power supply source, to which the device “ModemCOM-TM2” is connected should satisfy LST EN 60950-1 standards. The device can be used with the first (Personal Computer) or the second (Notebook) computer safety class. In the installation place and supply circuits the protective devices should be tooled up (bipolar release device) which will protect the device from short-circuit and grounding troubles (Picture 1.1).
-
Page 5: Legal Notice
All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited. Other product and company names mentioned herein may be trademarks or trade names of their respective owners. -
Page 6: Technical Specifications
ModemCOM-TM2 User’ Manual v2.1.1.19 TECHNICAL SPECIFICATIONS 6.1 Data transferring „ModemCOM/G10“ supports bearers presented below. Which data type is used depends on GSM operator and data transfer capacity in the chosen GSM Network. • GPRS class 10 (class B); • CSD; •... -
Page 7: Indication
ModemCOM-TM2 User’ Manual v2.1.1.19 Operating conditions and other parameters are shown in Table 2. Table 2. Operating conditions Parameter Typical Meas. Units Weight (modem only) 85 ± 10 Recommended operating ºC temperature Marginal operating temperature ºC Storage temperature ºC Notice: if the settings outreach the characteristics given above the device can be damaged! 6.4 Indication On the „ModemCOM/G10“... -
Page 8: Pins Of Db9 (Com) Connector
ModemCOM-TM2 User’ Manual v2.1.1.19 6.5 Pins of DB9 (COM) connector Picture 6.5.1. Pins of COM port... -
Page 9: Modem Setup
PC CD Drive. Step 2 – Wait till the system displays the screen “Select Setup Language”. Step 3 - Select English and Click “OK” button. Following TELTONIKA Home screen will appear. Step 4 -Click “Install” button. Following screen will appear;... - Page 10 ModemCOM-TM2 User’ Manual v2.1.1.19 Step 5 – Click “Next” button Step 6 – Click “I Agree” button if agree with License Agreement. Step 7 - Click “Next” button...
- Page 11 ModemCOM-TM2 User’ Manual v2.1.1.19 Step 8 - Enter dial-up connection parameters and press “Next” in the opened dialog. Note: APN, user name and password are to be asked to your GSM operator! Step 9 - Click “Install” button. Step 10 – Connect the modem to the PC and click “OK”...
-
Page 12: Setting Up An Internet Connection
ModemCOM-TM2 User’ Manual v2.1.1.19 Step 11 - Press “Finish” in the opened dialog box “Modem Control tool Setup”. Congratulations the installation is done. 7.3 Setting up an Internet connection In this chapter we will provide you with general information and procedures necessary for setting up an Internet connection in your PC. - Page 13 1. Start “Modem Control Tool” program. The program can be started from the PC desktop (or “Start -> Programs -> Teltonika -> ModemCOM G10 -> Modem Control Tool G10“) while clicking on the shortcut. When the shortcut will be clicked, “Modem Control Tool” dialog box will be opened.
- Page 14 ModemCOM-TM2 User’ Manual v2.1.1.19 3. To connect to the Internet, click “Connect” button: 4. The modem starts connecting to Internet after clicking on this button. When the modem connected to Internet, you will see message “Disconnect”; If you can not connect the Internet using Internet Explorer after using Modem follow these steps, click Start →...
-
Page 15: Sending Short Text Messages (Sms)
ModemCOM-TM2 User’ Manual v2.1.1.19 Select dial-up pictogram in the “Dial-up and Virtual Private Network settings” window and click “Set Default” button, then chose “Always dial my default connection” and click “Apply” and “OK” buttons. Now try to connect to Internet again. 7.4 Sending Short Text Messages (SMS) 1. -
Page 16: Changing Security Settings
ModemCOM-TM2 User’ Manual v2.1.1.19 7.5 Changing security settings To set ModemCOM/G10 modem parameters or to change them, click Settings in the main Modem Control Tool window. If you click Main in the Settings window, you will be able to choose a modem from the list of modems installed in your PC. If you click Connection in the Settings window, you will be able to change the ModemCOM/G10 modem Internet connection parameters. - Page 17 ModemCOM-TM2 User’ Manual v2.1.1.19 To enable PIN code query, choose PIN Code Query Enabled in Security State frame and click Update. A pop-up window will appear. Enter the PIN code of your SIM card in the Insert Pin Code field and click OK. Now, the Modem Control Tool program will ask for the PIN code each time you connect the ModemCOM/G10 modem to your PC COM port To disable PIN code query, choose PIN Code Query Disabled in Security...
- Page 18 ModemCOM-TM2 User’ Manual v2.1.1.19 To change Modem Control Tool program language, go to Settings → Application. In Application window choose the language from Set Language field and click Update Language. Click About to see the Modem Control Tool program version and other Information.
-
Page 19: Acronyms
ModemCOM-TM2 User’ Manual v2.1.1.19 ACRONYMS AC/DC Alternating Current/Direct Current Access Point Name Circuit Switched Data Circuit Switched Fax GPRS General Packet Radio Service Global System for Mobile communications IMEI International Mobile Equipment Identity Internet Service Provider Light Emitting Diode Operating System Packet Data Protocol Personal Identification Number Subscriber Identity Module... -
Page 20: Technical Support
If you have faced some problems using the device, which you are not able to solve by yourself, you are always welcome to address our technical support department by e-mail support@teltonika.lt We will be very glad to help you.
