- Page 1 USB WiMAX modem User Manual Suitable for UM6225 & UM6235...
-
Page 2: Legal Notice
TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice. -
Page 3: Table Of Contents
Table of contents LEGAL NOTICE ..................................2 ATTENTION ..................................2 TABLE OF CONTENTS ................................3 SAFETY INFORMATION ............................... 4 PRODUCT OVERVIEW ................................. 5 ..................................5 NTRODUCTION ................................... 5 ACKAGE CONTENTS ................................5 YSTEM REQUIREMENTS , LED' ............................5 ARDWARE S AND CONNECTIONS WEBUI OVERVIEW ................................ -
Page 4: Safety Information
SAFETY INFORMATION In this document you will be introduced on how to use a UM6225/UM6235 modem safely. We suggest you to adhere to the following recommendations in order to avoid personal injuries and or property damage. You have to be familiar with the safety requirements before using the device! To avoid burning and voltage caused traumas, of the personnel working with the device, please follow these safety requirements. -
Page 5: Product Overview

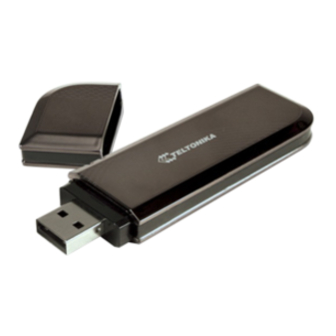

PRODUCT OVERVIEW Introduction Teltonika UM6225/UM6235 is a compact USB dongle offering high speed data rate connectivity to WiMAX networks. It supports the IEEE 802.16e connection standard, thus it is flexible and can be used in a set of different environments: the office, home, a public place or even a bus or a car. -
Page 6: Webui Overview
WebUI OVERVIEW In this section you will be briefly introduced to our user interface. Note: we use the tool tip system in our web user interface in order to show additional information. To see this data hover your mouse cursor above the field. Also, if the frame of the field becomes red, it usually means that the data in the field is incorrect, in this case look into the red tool tip for more information. -
Page 7: Webui Structure
Our modern web user interface provides you with all the tools needed within the four main pages: Status, Firewall, Administration, About. Status Status page Status page consists of 6 properties that define the current state of the UM6225/UM6235 modem: Uptime – the time since the modem was plugged in. Signal quality –... -
Page 8: Firewall
Firewall Firewall page lets you configure firewall settings to meet your requirements. It includes port- forwarding, MAC filtering and IP filtering Port forwarding Port forwarding is the process of translating the address and port number of a packet to a new destination. -
Page 9: Mac Filtering
Mac filtering MAC filtering is a security access control method used to determine access to the network by physical address. Follow these steps to add a MAC filtering rule: Enable – check to enable the MAC filtering. 2. Press the button. -
Page 10: Ip Filtering
IP filtering IP filtering is a security access control method used to determine access to the network by IP address. Follow these steps to add an IP filtering rule: Enable – check to enable the IP filtering. 2. Press the button. -
Page 11: Demilitarization Zone
Demilitarization zone In computer networks, a DMZ (demilitarized zone) is a computer host or small network inserted as a "neutral zone" between a private network and the outside public network. DMZ page To set up DMZ, click the Enable checkbox and put in IP address of your destination in the Destination IP text field. -
Page 12: Firmware
Firmware Firmware page To save firmware: click Save firmware to file and at the following dialog browse to the directory you want to place the binary file. To update firmware: click Select firmware file and at the following dialog window select the firmware file (note: file must be named firmware.bin). -
Page 13: Technical Specification
TECHNICAL SPECIFICATION Standard Compliant IEEE 802.16e-2005 Air Interface S-OFDMA Frequency Band 2.5-2.7GHz (UM6225) or 3.3-3.6GHz (UM6235) Channel Bandwidth 3 MHz, 3.5 MHz, 5 MHz, 6 MHz, 7 MHz, 8.75 MHz and 10 MHz Modulation Adaptive QPSK, 16QAM, 64QAM MIMO MRC, Matrix A + MRC, Matrix B...
