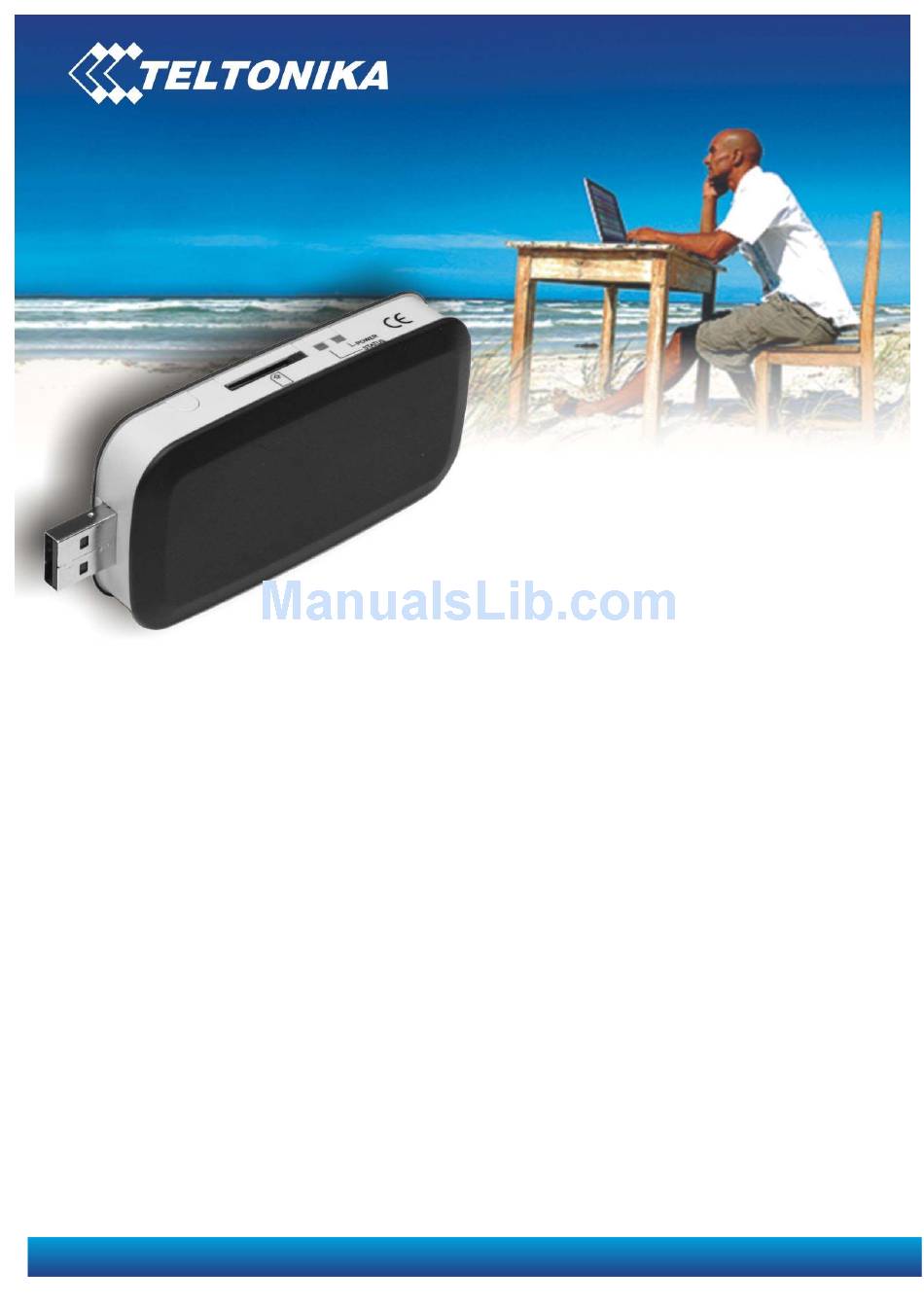

- Page 1 TELTONIKA ModemUSB/H7.2 (U3G150; U3G15L; U3G15S modems) User Manual v0.2 Address: Žirmūnų g. 27, Vilnius LT-09105, Tel.: +370 5 2127472, Fax: +3705 276 1380, E-mail: info@teltonika.lt...
-
Page 2: Table Of Contents
ModemUSB/H7.2 User Manual TABLE OF CONTENTS TABLE OF CONTENTS.........................2 ATTENTION...........................3 FOR YOUR SAFETY ......................3 USER‘S SERVICE ........................5 BASIC INFORMATION......................6 Introduction........................6 Legal Notice........................6 Contacts..........................6 Acronyms .........................6 PACKAGE CONTENTS......................7 TECHNICAL SPECIFICATION ....................7 Data transferring ......................7 Indication .........................9 Operating parameters .......................9 Mechanical characteristics .....................10 HOW TO START? ........................11 Driver and Software Installation on Windows XP ............11 Driver and Software Installation on Windows 2000............12... -
Page 3: Attention
THE DEVICE. 2. FOR YOUR SAFETY In this document you will be introduced how to use ModemUSB/H7.2 (U3G150; U3G15L; U3G15S) devices safely, later in the manual will be used only ModemUSB/H7.2 name. We suggest you to adhere to following recommendations so as to avoid any damage to person or property. - Page 4 ModemUSB/H7.2 User Manual To avoid mechanical damage of the device, it is recommended to transport the device packed in damage-proof pack. While using the device, place it such that the LEDs are visible to the user. It’s because these LEDs provide information about the working modes and condition of the device. Signal level of the modem depends on the environment in which it is working.
-
Page 5: User's Service
ModemUSB/H7.2 User Manual IT IS MANDATORY TO READ THE NOTES PRESENTED BELOW CAREFULLY BEFORE STARTING TO USE THE DEVICE U should install the drivers from the CD provided with modem before connecting device to your PC or connect it when prompted SIM card is mandatory for setting up connection to the GSM network. -
Page 6: Basic Information
Contacts If you face any problems related to the device, which you are not able to solve by yourself, you are always welcome to address our technical support department by e-mail support@teltonika.lt. We will be very glad to help you. -
Page 7: Package Contents
5. PACKAGE CONTENTS ModemUSB/H7.2 modem is packed in a box and contains all the accessories required for normal operation: ModemUSB/H7.2 (U3G150; U3G15L or U3G15S type). CD with User Manual and drivers. “USB A jack ↔ USB A socket“connection cable. Leaflet “Quick Start Guide”. - Page 8 ModemUSB/H7.2 User Manual MODEM HSDPA/UMTS EGPRS/GPRS/CSD TYPE 2100 Mhz 850 / 900 / 1800 / 1900 MHz EDGE Power Class 3 (+24 dBm). HSDPA GSM Power Class 4 (2W) for modes: 850 / 900 bands, GSM. HSDPA 1.8: Categories 1-4, 11 and Power Class 1 (1W) for 1800 / 1900 bands.
-
Page 9: Indication
ModemUSB/H7.2 User Manual Indication Two LED indicators (“Power“and “Status“) are located on the side of ModemUSB/H7.2 These LEDs indicate the operating mode and failure conditions of the modem. Modem operating modes are described in Table 3.2.1. Table 6.2.1. Modem operating modes Description LED Status Modem power supply is on. -
Page 10: Mechanical Characteristics
ModemUSB/H7.2 User Manual Mechanical characteristics ModemUSB/H7.2 modem housing is made of plastic. External view and measurements (in mm) of the device are shown in Figure 6.4.1. 42.0 85.5 15.1 Figure 6.4.1. External view of ModemUSB/H7.2... -
Page 11: How To Start
ModemUSB/H7.2 User Manual 7. HOW TO START? In order to install ModemUSB/H7.2 drivers and software, do the following: ModemUSB/H7.2 modem can only be connected after the driver installation has finished. Unplug the device ModemUSB/H7.2 from USB port of the PC (if it is plugged)! Otherwise, the PC will have to be restarted after completion of driver installation. -
Page 12: Driver And Software Installation On Windows 2000
ModemUSB/H7.2 User Manual Driver and Software Installation on Windows 2000 Installation procedure is same as on Windows XP. Driver and Software Installation on Windows Vista OS... -
Page 13: Uninstall Of The Driver And Software
To run the Modem Control Tool, double click the MCT pictogram located on the desktop, or go to Start → Programs → Teltonika ModemUSB/H7.2 → Modem Control Tool USB H7.2. If the program is run for the first time or there are more than one modems installed, a window asking to select modem from the list will appear, click OK in this window. -
Page 14: Connecting To Internet
ModemUSB/H7.2 User Manual If PIN code request is active in your SIM card, a window for inserting the PIN code will appear. If you will enter wrong PIN code three times in a row, the program will ask to enter the PUK code! When the required data inserted correctly, click OK and the main Modem Control Tool window will open. - Page 15 ModemUSB/H7.2 User Manual In the Main menu you can select modem and set Automatic or Manual operator selection option. It is advisable to use automatic Operator selection, manual operator selection is usable for the roaming usually. If you are using more than one modem – it is possible to automatically connect via other available modem if current become unavailable.
- Page 16 ModemUSB/H7.2 User Manual In order to connect to the Internet, enter the required data in Connection window. In the main MCT window click Settings → Connection. Enter connection data as shown below. To save the entered data, click Update. One of the four connection types can be chosen in the Connection window: GPRS only.
- Page 17 ModemUSB/H7.2 User Manual If the ModemUSB/H7.2 modem connects to the Internet, red indicator denoted as Disconnected on the left corner of MCT window turns green and will be denoted as Connected. In order to disconnect from the Internet, click Disconnect in the main Modem Control Tool window.
-
Page 18: Sending Sms
ModemUSB/H7.2 User Manual 7.5.3 Sending SMS With ModemUSB/H7.2 you can send and receive SMS messages and browse in the Internet at the same time! In order to send SMS, click SMS in the main MCT window. A Short message service window will open. In the opened window, enter the receiver’s phone number in the Phone number field. -
Page 19: Settings Of Modemusb/H7.2
ModemUSB/H7.2 User Manual 7.5.4 Settings of ModemUSB/H7.2 There are few profiles available for the user to set To set ModemUSB/H7.2 modem parameters or to change them, click Settings in the main Modem Control Tool window. If you click Main in the Settings window, you will be able to choose a modem from the list of modems installed in your PC. - Page 20 ModemUSB/H7.2 User Manual SMS center number is shown in Settings → SMS. To change Modem Control Tool program language, go to Settings → Application. In Application window choose the language from Set Language field and click Update Language. Click About to see the Modem Control Tool program version and other Information.
-
Page 21: Uninstalling Modemusb/H7.2
Uninstalling ModemUSB/H7.2 To uninstall ModemUSB/H7.2 modem, plug it off from the USB port of the PC, and go to Start → Programs → Teltonika ModemUSB/H7.2 → Uninstall. A uninstall window will appear. Unplug the MdemUSB, and click OK button. The uninstallation session will be canceled if the ModemUSB will not be unpluged. -
Page 22: Technical Support
For further information, please read “ModemUSB/H7.2” Users Manual, on the CD, or on the WEB site (www.teltonika.com). If you face any problems related to the device, which you are not able to solve by yourself, please contact your local distributor they would be glad to help you.
