MXL066
Installation & User Instructions
This manual provides information on how to control the Roam 5G Router using your
devices internet browser. Most of these functions can be completed easier and faster
using the Maxview Roam App. See the Roam App instruction manual for more
information.
UK contact:
Helpline:
+44 (0)1553 811000
Email:
support@maxview.co.uk
Web:
www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111447 Iss 2
Maxview Roam 5G Powered by
Roam 5G Campervan
Maxview Address:
Maxview Ltd, Garage Lane, Setchey, King's Lynn, Norfolk. PE33 0AT. UK
We have partnered up with one of the largest
suppliers of Wi-Fi products worldwide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maxview MXL066 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika Maxview MXL066

Summary of Contents for Teltonika Maxview MXL066

  • Page 1 Roam 5G Campervan MXL066 Installation & User Instructions This manual provides information on how to control the Roam 5G Router using your devices internet browser. Most of these functions can be completed easier and faster using the Maxview Roam App. See the Roam App instruction manual for more information.

  • Page 2: Table Of Contents

    Introduction Thank you for purchasing this product, should you have any difficulty using your Roam 5G Campervan Mobile 3G/4G/5G Wi-Fi System please contact our friendly Customer Helpline on +44 (0)1553 811000 or email support@maxview.co.uk. Contents Router - Changing the Primary Internet Source Record your Purchase Product Contents from 3G/4G/5G to Wi-Fi...

  • Page 3: Product Contents

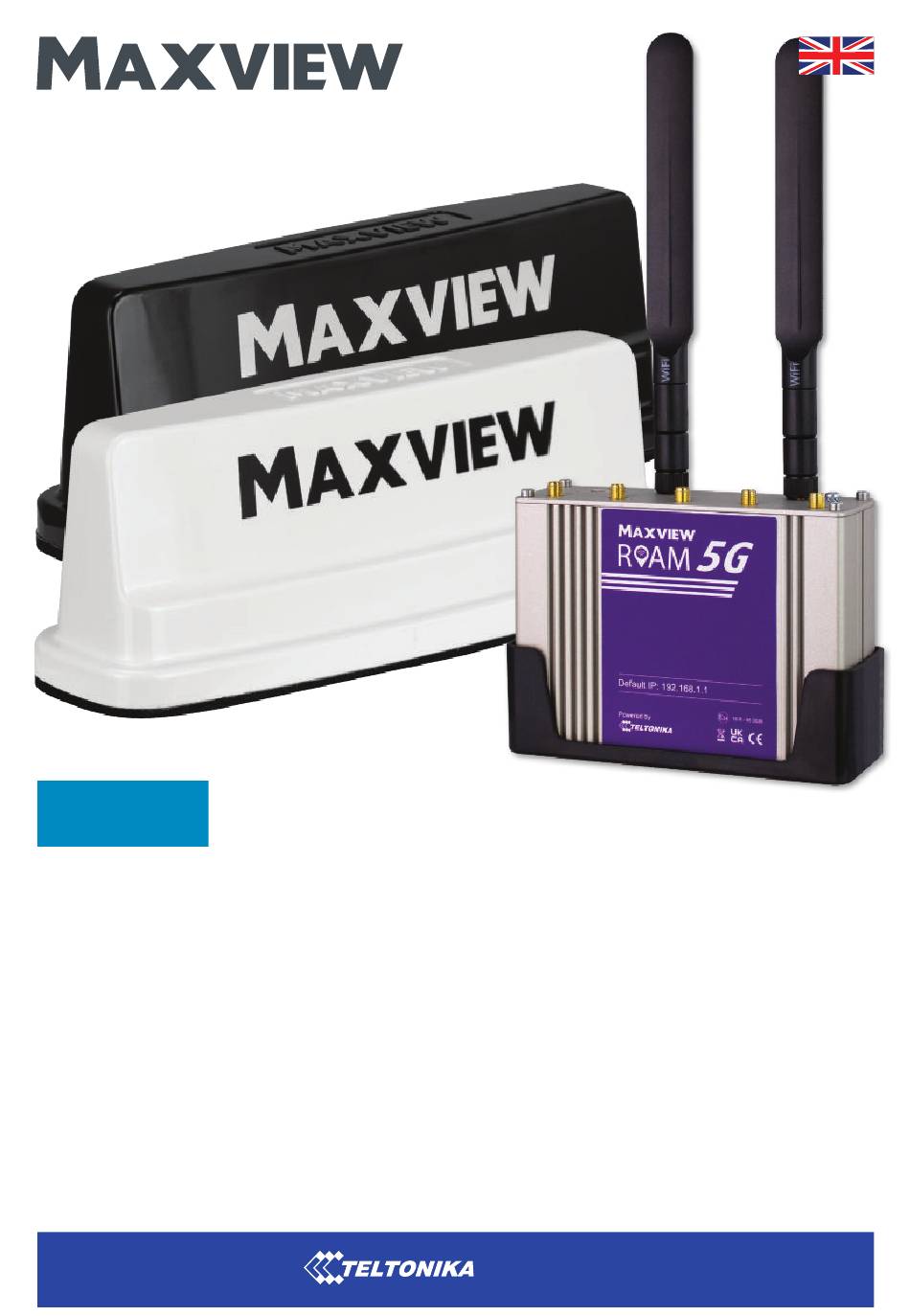

    Product Contents Omni-directional Roof Mount Antenna 2m SMA Extension Cable** with SMA connectors* Router Mounting Bracket 12V Vehicle Power Supply and Fixing Kit SIM Adaptors Kit 3G/4G/5G Wi-Fi Router Fixing Template 1.5m Ethernet Cable Roof Clamp 2 x Internal Wi-Fi Antennas No.

  • Page 4: Accessories

    Accessories Sold separately Weatherproof Socket with SMA Connectors Roam Extension Cables The Weatherproof Socket provides an external entry Extension cables can be purchased separately to point into the side of any vehicle. Available with 2 allow a flexible mounting position to the router. SMA connections, making it ideal to allow for a temporary connection or where entry into the roof 1 metre...

  • Page 5: Installation Instructions

    Installation Instructions...

  • Page 6: Positioning Your Roam 5G Campervan

    Positioning your Roam 5G Distance between Router and Antenna For best performance, we recommend mounting the router in close proximity to the roof mounted antenna. For best performance, do not use extension cables that are no longer than neccessary. Roof Antenna Position We recommend leaving 30cm gap from obstacles around the antenna to avoid interference issues and mounting on a horizontal flat roof.

  • Page 7: Fitting The Antenna

    Fitting the Antenna These instructions are for the standard through-the-roof installation as supplied. Front of vehicle Once you have a suitable position for the antenna, At the marked centre position, drill a 2.5mm pilot cut out the supplied template. Use to mark the 25mm hole through the roof.
  • Page 8 Clean the surface where the antenna will be Pass the cables through the hole and remove the installed, ensuring it is free from debris and grease. self-adhesive backing from the 3M seal. Pass the cables through the roof and position the antenna making sure it’s facing the front of the vehicle - Please reference Picture 7 below.

  • Page 9: Inserting Sim Card

    Inserting Sim Card Remove the supplied Pin located at the bottom of Use this pin to firmly press on SIM eject button. the router. This is located next to the SIM slot. It is not necessary to apply force to the SIM tray itself. This may damage Please note your Pin maybe located in the included the router.

  • Page 10: Router Installation

    Router Installation Position Router Bracket and mark hole positions. Attach the antenna coaxial cables to the top row Depending on material, drill a pilot hole or use a of connectors. These are marked ‘mobile’. Note the bradawl. Mount the Router Bracket to the surface order of the cables.
  • Page 11 Router Getting Connected and Basic Functions...

  • Page 12: Get To Know Your Router

    Get to know your Router Mobile signal strength Mobile network Front View indication LEDs type LEDs WAN type LEDs Holders SIM needle Power Socket Power Reset LAN Ethernet WAN Ethernet Ports Button Port Back View Mobile Antenna Mobile Antenna GPS Attenna Mobile Antenna Mobile Antenna Connection...

  • Page 13: Getting Online

    Getting Online Now your Roam 5G is installed and you have inserted the SIM card, it’s time to get connected. To do this, you will need to be using a device which can connect to a Wi-Fi network such as a smart phone, Smart TV, tablet or laptop.
  • Page 14 Option B: QR Code If your device is able to read QR codes (Android 9 or newer and IOS 11 or newer), simply point your device camera at the QR code on the back on the router. When prompted, select ‘join’. Your device will automatically connect to the Roam 5G Router.

  • Page 15: Factory Reset

    Connecting to a device using an Ethernet Cable If your device does not support Wi-Fi or you would like to maximise the reliability of your connection, you can access the Roam 5G internet connection by connecting the Ethernet Cable between the LAN ports on the router and your device.
  • Page 16 Router Advanced Functions and Changing Router Settings For most users changing these settings is not necessary. We only recommend accessing and changing settings in the Web User Interface if necessary and we do not recommend changing settings which have not been outlined in this booklet.

  • Page 17: Connecting To The Web User Interface

    Advanced Functions and Changing Router Settings All of the settings and functionality of the Roam 5G Router are changed using the Web User Interface. This can be accessed using a browser when your device is connected to the Roam Wi-Fi network. The Roam 5G Router is very powerful and there are many settings in here which can be adjusted to suit your requirements.
  • Page 18 When accessing the Web User Interface for the first time, you will be offered the chance to use the Set Up Wizard. This can be used to set up the router’s most relevant parameters, such as changing the hotspot username and password. Competent users can navigate through other settings, however we recommend skipping the Set Up Wizard as it is not strictly necessary to change any of these settings.

  • Page 19: Logging Out Of The Web User Interface

    Logging out of the Web User Interface Once you have finished using the Web User Interface, you should log out. We recommend doing this every time you have finished using the Web User Interface. Select ‘Log Out’ in the top right hand corner and Once you have logged out you can now close the confirm you wish to log out.

  • Page 20: Changing The Primary Source

    Router Changing the Primary Internet Source from 3G/4G/5G/5G to Wi-Fi Did you know? The functions in this section can be completed easier and faster using the Maxview Roam 5G App. See the Roam 5G App instruction manual for more information.
  • Page 21 Changing the Primary Internet Source from 3G/4G/5G to Wi-Fi In some instances during your travels, you will be in a location where there will be a usable Wi-Fi connection which can be used as a source, instead of 3G/4G/5G. This means you can access the internet using the same Roam 5G hotspot, however the source of the connection will be from another Wi-Fi hotspot.
  • Page 22 Next the wireless connection you wish to connect to click ‘Join Network” Enter the password for the network and network name if you choose to do so. Then click ‘Submit’ Click ”SAVE & APPLY”...
  • Page 23 Your router will now connect to your chosen wifi network. However the connection your router uses for to connect to the internet will depend on your WAN configuration setting, Click ‘Basic’ to switch to ‘Advanced’ To change connection priority drag and drop each connection in the order desired. Then save and apply.

  • Page 24: Changing The Routers Lan Ip Address

    Changing the Routers LAN IP Address In some cases, the LAN IP Address of the Roam 5G Router will be the same as the source Wi-Fi IP address. If this is the case, using Wi-Fi as the internet source will not work. To fix this, we must change the LAN IP Address of the Roam 5G Router.
  • Page 25 Router Other Functions Did you know? The functions in this section can be completed easier and faster using the Maxview Roam 5G App. See the Roam 5G App instruction manual for more information.

  • Page 26: Managing And Removing Wi-Fi Connections

    Managing and Removing Wi-Fi Connections Navigate to ‘Network’ and then ‘Wireless’. From here, you can then view and manage the most recent Wi-Fi connection listed under the Wireless Station Mode heading. This includes updating the password or removing it completely if it is no longer used. The Router will store the details of the most recently used Wi-Fi connection only.
  • Page 27 You will then see a list of the Wireless Access Points (hotspots) the router is creating. As standard, this will be for 2.4GHz and one for 5GHz. Select ‘pencil icon’ on the relevant access point. You will now be transferred to the ‘Interface Configuration’ tab under the ‘General Set Up’ tab. In the ESSID box, input a new name (ESSID) for your router.

  • Page 28: Entering Sim Pin

    When the changes are complete, you will see You can now navigate to your device’s Wi-Fi a web browser error page and your device will no settings and view available Wi-Fi networks. The Roam longer be connected to the router. Because the Wi-Fi router hotspot will be displayed as your chosen name.
  • Page 29 To bring you the Roam 5G Router, we have partnered with Teltonika. Teltonika have a vast amount of informa- tion available for all function of the router and Web UI on their Wiki Support Site. This can be accessed at: at: https://wiki.teltonika-networks.com/view/RUTX50...

  • Page 30: Router Firmware Update

    A list of the latest firmware changes and the associated features can be found at https://wiki.teltonika-networks.com/view/RUTX50_Firmware_Downloads As long as the router has a reliable internet connection, the firmware update can be done from the Teltonika Web User Interface. The time it takes will depend on your connection speed, so we recommend using a fast connection to minimise the time required.

  • Page 31: Additional Information

    Additional Information General Safety Warnings Read these instructions carefully and become familiar with your Maxview product. Understand the application, limitations and any hazards involved with the installation and operation. Failure to follow all instructions may result in damage to your vehicle and/or serious injury. Maxview declines all responsibility in the event of incident or accident if they are due to a non observation of the installation instructions or the way the product is used.

  • Page 32: Year Guarantee

    2 year guarantee Every Maxview Roam Campervan Mobile 3G/4G/5G Wi-Fi System is thoroughly inspected and tested before leaving the factory, and is covered by the following 2 year parts limited guarantee from the date of original purchase. Registering your product As part of our commitment to our customers, we ask owners of our Roam 3G/4G/5G Wi-Fi Systems to register ownership.

  • Page 33: Troubleshooting & Faq's

    8. Is there an easier way to change the settings for my router? Most router functionality can be controlled using the Teltonika App. 9. What is WAN Failover? Once Wi-Fi has been activated as the internet source, the Roam 5G uses WAN failover as default. This feature is designed to overcome the need to manually switch the internet source between mobile and Wi-Fi.
  • Page 34 IOS 14 or newer highlight this with the ‘weak security’ message. In reality, this protocol remains secure and is the standard used by most routers in the marketplace today. The newer gold standard protocol is WPA3. Maxview are working with Teltonika to ensure this protocol is introduced when available.
  • Page 35 17. What are the lights on the side of the Roam 5G Router telling me? Basic use and diagnosis using the LED’s has been outlined below. Visit https://wiki.teltonika-networks.com/view/RUTX50_LEDs for a full list of the LED configurations and what these mean.
  • Page 36 19. What does the Maxview Roam 5G App do? The Maxview Roam 5G App is available free of charge to all customers who have purchased a Maxview Roam 5G. It is available to download from the Android Google Play and Apple App Stores. The Roam 5G App is designed to simplify some of the key functions of the Maxview Roam 5G including set up, changing the Roam 5G hotspot Wi-Fi name/password as well as switching between 3G/4G/5G and Wi-Fi source.

  • Page 37: Certification And Environment

    Certification and Environment The Roam X 3G/4G/Wi-Fi system has been designed, constructed and marketed in compliance with the safety and product requirements of the relevant EEC Directives. Products marked with the crossed out wheely bin must not be disposed of with normal household waste but made available for separate household collection.

  • Page 38: Specifications

    Specifications Antenna Type: Omni-directional MIMO (multiple in multiple out) Frequency/Gain: 698-6000 MHz/5.9dBi -8.8dBi. Includes all 3G, 4G and 5G frequencies Connector Type: Impedance: 50 Ohm Power: Passive Cable Lengths: 0.3m + 2m Extension or 0.8m Housing: Aluminium Base. UV Stable ASA Cover Dimensions: H: 67mm x W: 60mm x L: 180mm Weight:...
  • Page 39 The Maxview Roam system uses a TELTONIKA NETWORKS UAB RUTX50 5G router. Used Frequency Range of Built-In RF Module: Band UL f, MHz DL f, MHz WCDMA 1920-1980 2110-2170 880-915 925-960 LTE-FDD 1920-1980 2110-2170 1710-1785 1805-1880 2500-2570 2620-2690 880-915 925-960...
  • Page 40 Standards Applied: TELTONIKA NETWORKS UAB have declared that the above product is in conformity with the relevant Community harmonisation: European Directive 2014/53/EU (RED). The conformity with the essential requirements has been demonstrated against the following harmonised standards: Test Report No.
