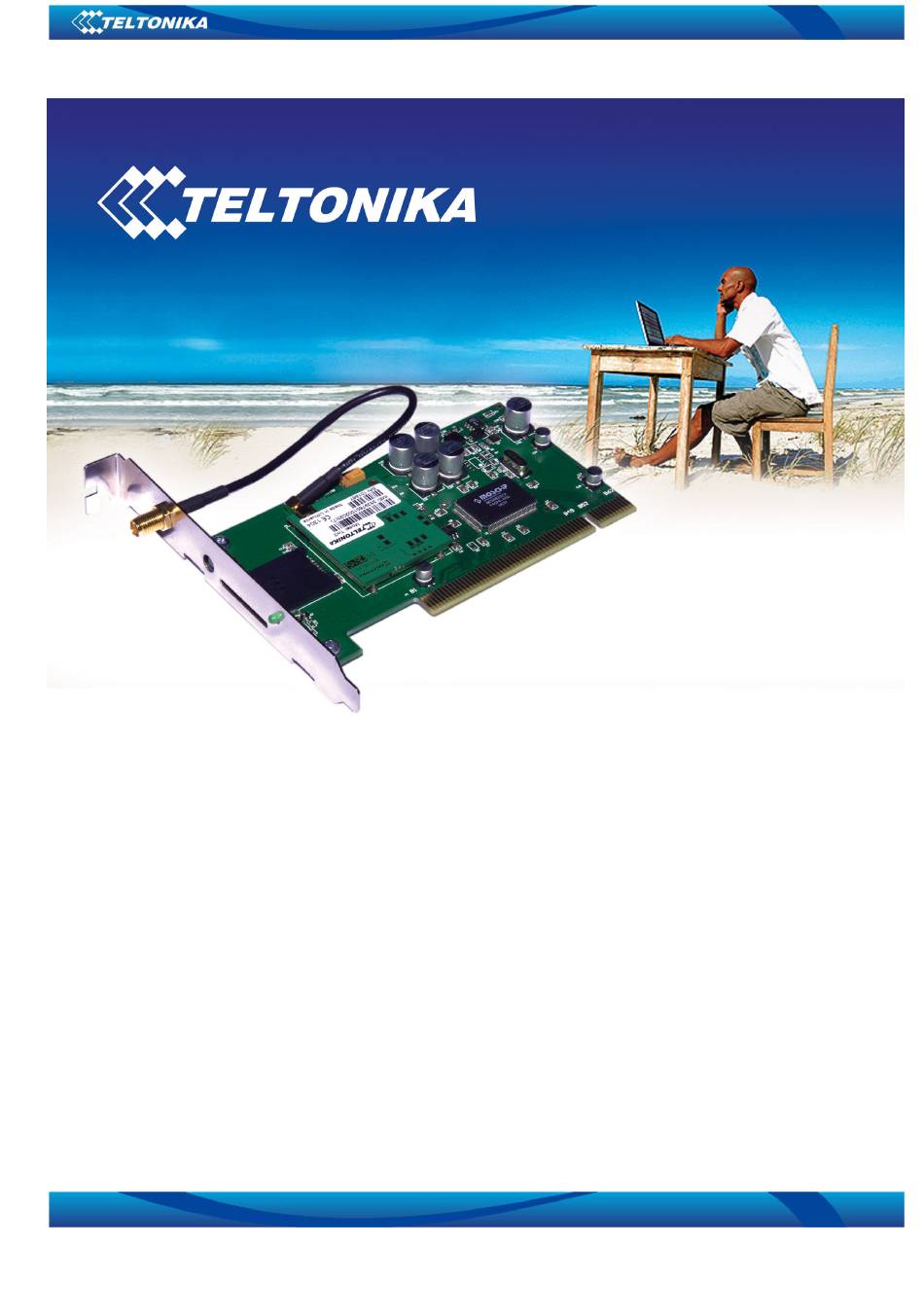

- Page 1 ModemPCI G10 User Manual TELTONIKA ModemPCI G10 (PM1000) User Manual...
-
Page 2: Table Of Contents
6.2 Software description......................9 6.2.1 Modem Control Tool Preparation to Work..............9 6.2.2 Connecting to Internet....................11 6.2.3 Sending SMS........................12 6.3 Uninstalling Modem PCI G10.....................14 7 TECHNICAL SUPPORT......................15 7.1 Modem Control Tool does not detect the modem...............15 7.2 Cannot connect to the Internet.....................15... -
Page 3: For Your Safety
The PC to which the Modem PCI G10 device is to be connected must have a PCI slot. Modem is supplied from +5V DC PCI interface. -
Page 4: User's Service
ModemPCI G10 User Manual If the device fails to work properly, only qualified personnel may repair this product. We recommend to dismantle the device and forward it to repair center or to the manufacturer. The modem does not contain any parts, which can be replaced. -
Page 5: Basic Information
3 BASIC INFORMATION 3.1 Introduction Modem PCI G10 is a device designed for data transmission via GSM Network. Once a SIM card is inserted in the modem and the PC is powered on, you would be able to send SMS, access internet via GPRS/GSM networks (mobile networks). -
Page 6: Package Contents
ModemPCI G10 User Manual 4 PACKAGE CONTENTS Modem PCI G10 modem is packed in a box and contains all the accessories required for normal operation: Cardboard box. Modem PCI G10 modem. CD with User Manual and drivers. External GSM antenna (special orders only). -
Page 7: Operating Systems
− Suse 9 (32-bit and 64-bit) − Slackware 10.0 5.5 Operating Parameters Modem PCI G10 modem derives +5V DC power from the PCI bus, therefore, the PC must have a 32bit-PCI slot. The device does not require any external power supply for its operation. -
Page 8: Mechanical Characteristics

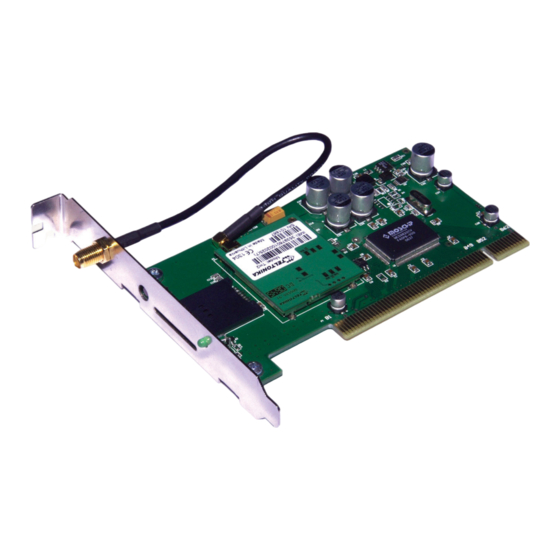

Table! 5.6 Mechanical characteristics Modem PCI G10 modem is a board, which is mounted into the motherboard of a PC. Board can be fixed to PC chassis by 3mm screw. The modem communicates with motherboard by PCI interface. External view and measurements (in mm) of the device are shown in Figure 1. -
Page 9: Software Description
You have a GSM SIM card with activated data transfer service; TCP/IP protocol support is installed in the PC (Operating System); Modem PCI G10 is set to work – drivers and software are installed, SIM card is inserted, modem is connected to the PC, LED is blinking. - Page 10 To run the Modem Control Tool, double click the MCT pictogram located on the desktop, or go to Start → Programs → Teltonika → ModemPCI G10 → Modem Control Tool PCI G10. If the program is run for the first time or there are more than one modems installed, a window asking to select modem from the list will appear.
-
Page 11: Connecting To Internet
MCT window (if the APN, user name and password were entered correctly). If the Modem PCI G10 modem connects to the Internet, red indicator denoted as Disconnected on the left corner of MCT window turns green and will be denoted as Connected. -
Page 12: Sending Sms
6.2.3 Sending SMS With Modem PCI G10 you can send and receive SMS messages. Before sending/receiving SMS messages you must disconnect from Internet! In order to send SMS, click SMS in the main MCT window. A Short message service window will open. - Page 13 – Close. Settings of Modem PCI G10 To set Modem PCI G10 modem parameters or to change them, click Settings in the main Modem Control Tool window. If you click Main in the Settings window, you will be able to choose a modem from the list of modems installed in your PC.
-
Page 14: Uninstalling Modem Pci G10
6.3 Uninstalling Modem PCI G10 To uninstall Modem PCI G10 modem, go to: Step 1. Start → Programs → Teltonika Modem PCI G10 → Uninstall. Now the Modem PCI G10 modem is completely removed from the operating system of your PC. -
Page 15: Technical Support
If you face any problems related to the device, which you are not able to solve by yourself, you are always welcome to address our technical support department by e-mail support@teltonika.lt. We will be very glad to help you. 8 ENDING This sign on the package means that it is necessary to read the User Manual, which is on the CD, before starting using the device.
