Summary of Contents for Teltonika GM6225

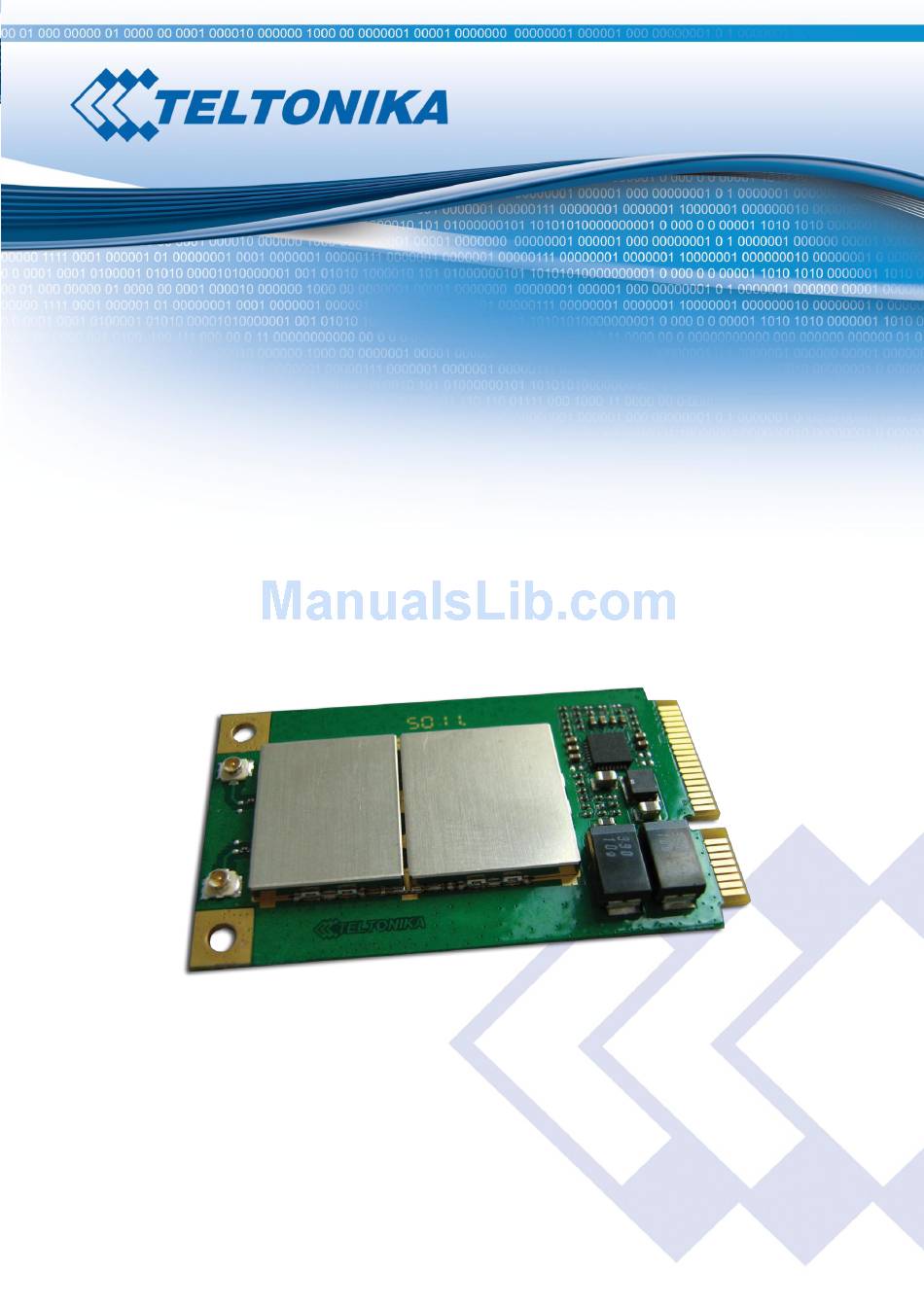

- Page 1 Mini PCI-E WiMAX modem User Manual Version 1.0 Suitable for: GM6225, GM6235...
-
Page 2: Legal Notice
TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice. -
Page 3: Table Of Contents
Table of contents LEGAL NOTICE ................................2 ATTENTION ................................. 2 TABLE OF CONTENTS ..............................3 SAFETY INFORMATION ..............................4 PRODUCT OVERVIEW ..............................5 ................................... 5 NTRODUCTION ............................... 5 YSTEM REQUIREMENTS PCI-E ................................6 PINOUT WEBUI OVERVIEW ..............................7 UI ..............................7 ONNECTING TO THE ................................ -
Page 4: Safety Information
SAFETY INFORMATION In this document you will be introduced on how to use a GM6225/GM6235 modem safely. We suggest you to adhere to the following recommendations in order to avoid personal injuries and or property damage. You have to be familiar with the safety requirements before using the device! To avoid burning and voltage caused traumas, of the personnel working with the device, please follow these safety requirements. -
Page 5: Product Overview
PRODUCT OVERVIEW Introduction Teltonika GM6225 and GM6235 PCI Express Mini Card WiMAX modems offer high speed data rate connectivity via WiMAX networks. Both modems are compliant with IEEE802.16e-2005 WiMAX Wave 2 standard thus they support mobile wireless connectivity and is ideally suited for laptops, netbooks or any device with a Mini PCI-E socket. -
Page 6: Mini Pci-Epinout
Mini PCI-E pinout Top side Bottom side 2 3.3V 4 GND 9 GND 15 GND Mechanical key 18 GND 19 Reserved 20 Reserved 21 GND 22 PERST 24 3.3V 26 GND 27 GND 29 GND 34 GND 35 GND 36 USB_D- 37 GND 38 USB_D+ 39 3.3V... -
Page 7: Webui Overview
WebUI OVERVIEW In this section you will be briefly introduced to our user interface. Connecting to the WebUI To connect to the configuration web page do the following steps: 1. Type 192.168.0.1 to your favorite internet browser. Skip the step 2 if the password is disabled (default: disabled). -
Page 8: Webui Structure
Our modern web user interface provides you with all the tools needed within the two main pages: Status, About. Status Status page Status page consists of 6 properties that define the current state of the GM6225/GM6235 modem: Uptime – the time since the modem was plugged in. Signal quality –... -
Page 9: Technical Specification
TECHNICAL SPECIFICATION Standard Compliant IEEE 802.16e-2005 Air Interface S-OFDMA Frequency Band 2.5-2.7GHz (GM6225) or 3.3-3.6GHz (GM6235) Channel Bandwidth 3 MHz, 3.5 MHz, 5 MHz, 6 MHz, 7 MHz, 8.75 MHz and 10 MHz Modulation Adaptive QPSK, 16QAM, 64QAM MIMO MRC, Matrix A + MRC, Matrix B...
