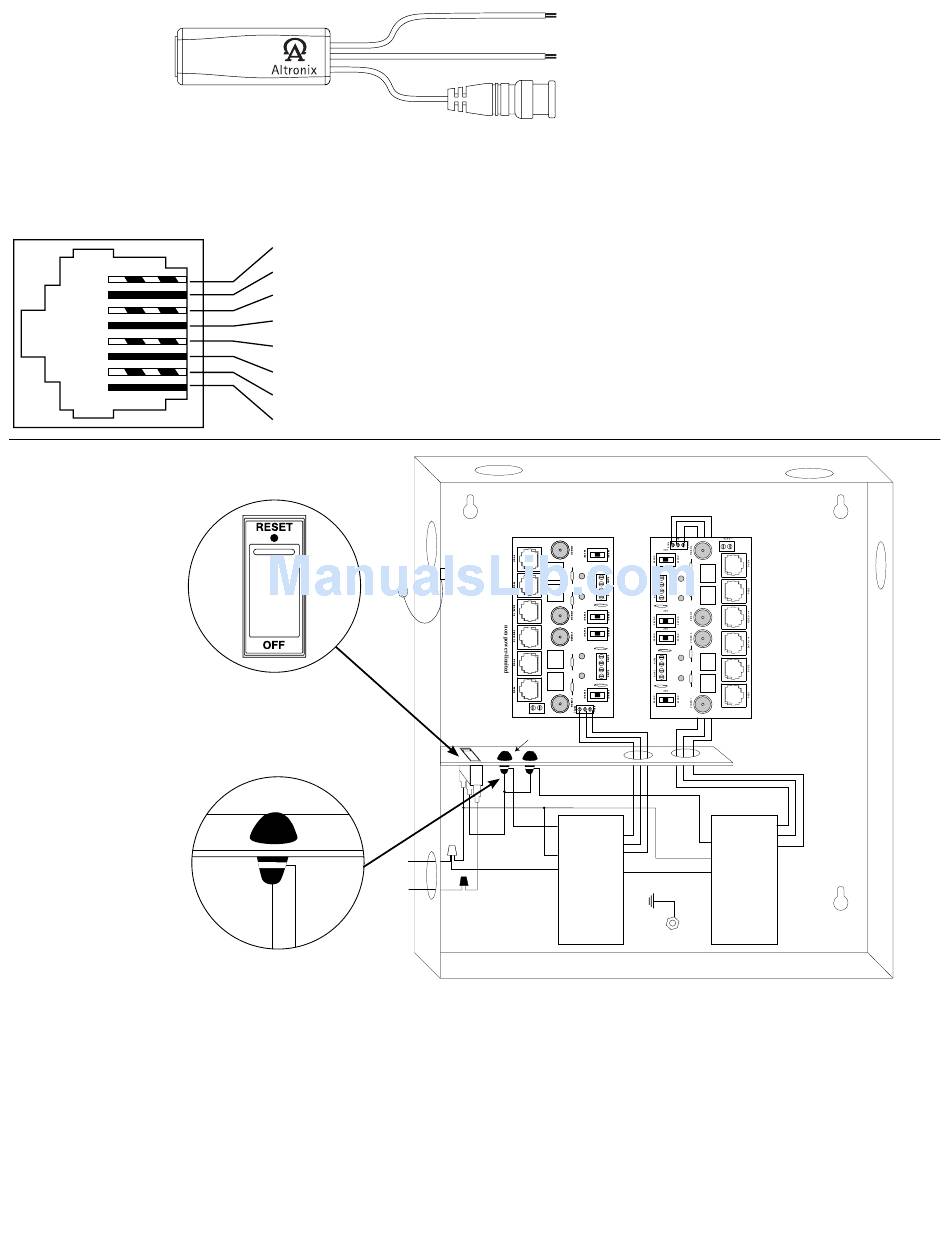

Altronix HubSat8D Installation Manual page 6

Fig. 2e
HubWayAv2
Cat5
back to
HubWay
or
HubSat
HubWayAv/HubWayAv2 passes AC voltage from pins
4, 5, 7, 8 to terminals marked [AC Power] (Fig. 3, pg. 5).
Fig. 3 - CAT5 Wiring Color Codes
Fig. 4a
Illuminated master power
disconnect circuit breaker:
• OFF position circuit breaker tripped –
Switch not illuminated.
• RESET (ON) position – Switch illuminated.
Fig. 4b
Primary In-line Fuses:
Rated @ 3.5A/250V
- 6 -
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -- ]
7 - White/Brown [AC 2]
8 - Brown [AC 1]
Fig. 4
(ON)
Wire
Strap
(from
Enclosure
to Door)
White
Lead
115VAC
input,
60 Hz.
Black
Lead
Power to Camera
Data to Camera
Video from Camera
HubWayDv/HubWayDvi converts AC voltage to DC
voltage from pins 4, 5, 7, 8 to terminals marked
[-- 12VDC +] (Fig. 3, pg. 5).
Circuit
Board
OFF OFF
A
OFF OFF
OFF OFF
OFF OFF
+ DATA - + DATA - BK BK
Primary non power-limited
In-line
Fuse
XFMR
(ground)
non power-limited
Circuit
Board
B
XFMR
Green
Lead
HubSat8D
