Related Manuals for KT&C KPC HDD122
Summary of Contents for KT&C KPC HDD122

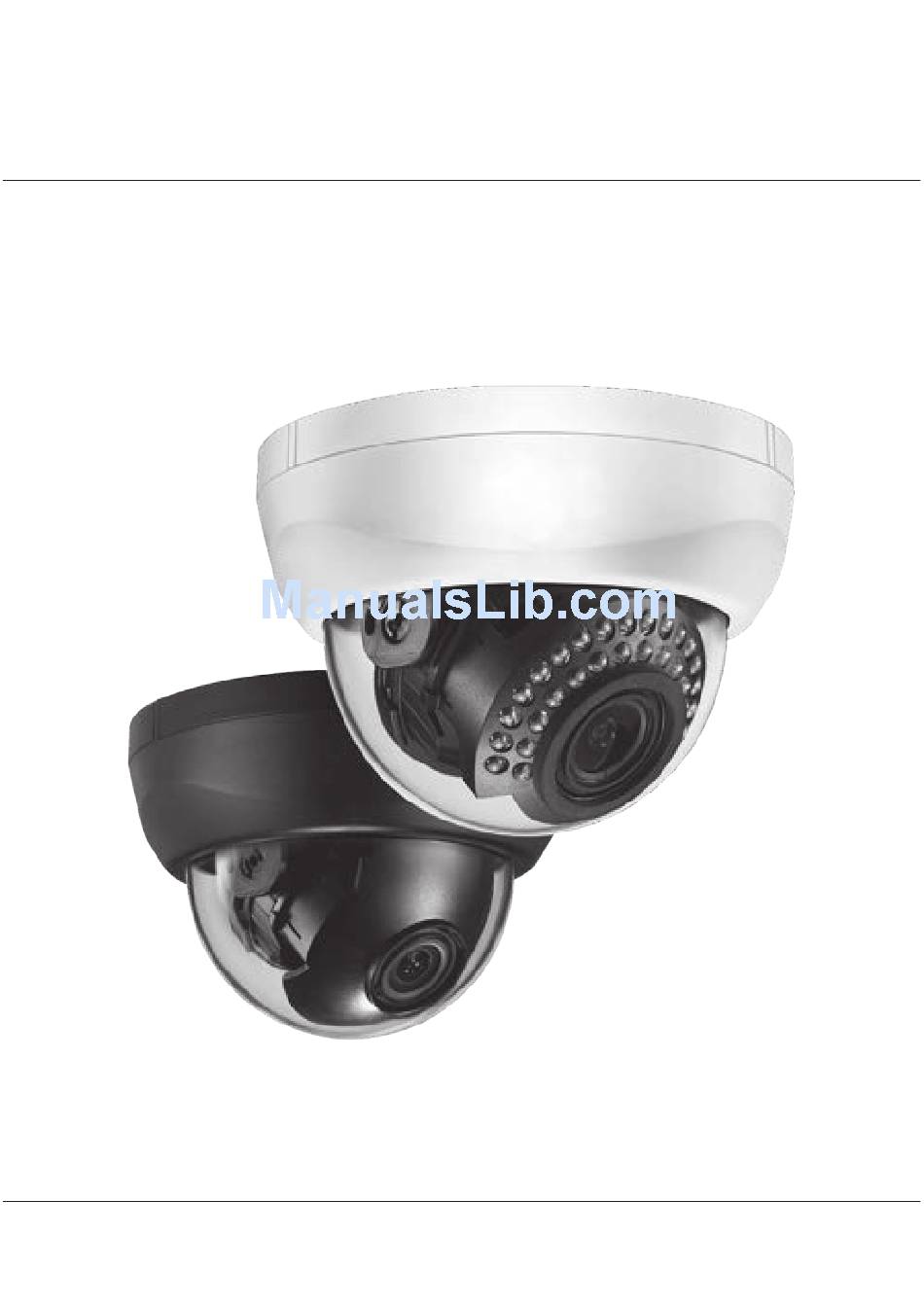

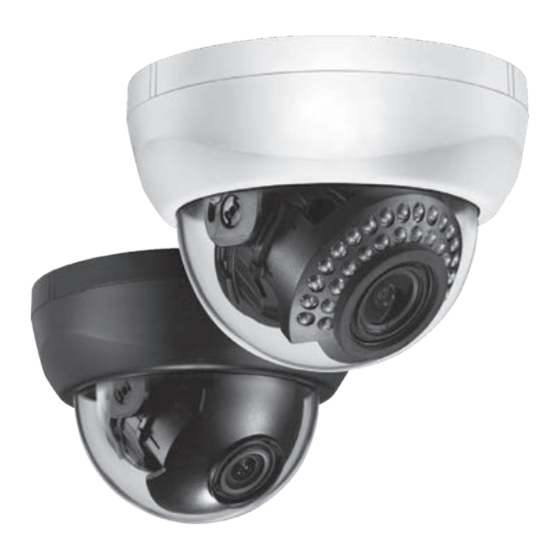

- Page 1 M149-HDD122-001 HD CCTV Digital Video Dome Camera OPERATION MANUAL Thank you for choosing our high quality camera. Before attempting to connect operate this unit, please read and follow these instructions.
- Page 2 CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Use Class 2 Power Supply Only...
- Page 3 C O NT E NT S 1. CAUTIONS 2. IMPORTANT SAFETY INSTRUCTION 3. FEATURES 4. EQUIPMENT AND ACCESSORIES 5. CAMERA COMPONENT DESCRIPTIONS 6. INSTALLATION 7. DIMENSIONS 8. SPECIFICATION 9. OSD MANUAL • Menu structure • Function Description...
- Page 4 1 . C AUT IO N S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 1 . C AUT IO N S Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
-
Page 6: Important Safety Instruction
2 . IMP O R TA NT S A FE T Y I N ST R U C T I O N 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. - Page 7 3 . F E AT U R E S • High Resolution SONY 1 / 3” 2.1 M Progressive Color CMOS Image Sensor, 1920x1080 30fps • Support various digital video output 720p60, 720p50, 1080p30, 1080p25 • Video Outputs Primary HD-SDI (BNC) Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable •...
-
Page 8: Equipment And Accessories
4 . EQ UI P ME N T AN D A C CE SS O R I ES Camera Template Manual Screws Service Video Output Test Cable... -
Page 9: C Ame R A Co M P O N En T D Es C R Ip T I O N S
5 . C AME R A CO M P O N EN T D ES C R IP T I O N S • LED Type IR LE D 30ea P hoto C el l S er v ic e V i deo C onn ec to r F unc tio n S etup S w i tch •... -
Page 10: Installation
6 . INS TAL L AT IO N Lens Focus Knob Lens Zoom Knob Separate LED Cover (Sunshield Cover) and adjust LENS ZOOM / FOCUS KNOB After setting the LENS, assemble the LED Cover (Sunshield Cover). PART NAME Mount Guide Housing Bottom Holder Panning Holder Tlit... -
Page 11: Monitor Connection
6 . INS TAL LATI O N • MONITOR CONNECTION - DC12V/AC24V RECEIVER B NC FE MA L E V I D E O HD SDI IN DISPLAY DEVICE MONITOR DC 12V / AC 24V POWER SUPPLY - DC12V RECEIVER HD SDI IN BNC FEMALE V I D E O DISPLAY... - Page 12 7 . D IM EN S I O N S Unit(mm) Ø100 Ø135...
-
Page 13: Specification
8 . SP ECI F I CAT I ON Model Standard Type LED Type SONY 1/3” 2.1M Progressive Image Device Color CMOS Image Sensor Effective Pixels 1984 (H) x 1105 (V) 30fps Unit cell size 2.8um (H) x 2.8um (V) HD-SDI: 720p60, 720p50,1080p30, 1080p25 Video Output Mode TV Out: NTSC / PAL selectable... -
Page 14: Os D M An Ua L
9 . OS D M AN UA L • Menu structure SETUP EXPOSURE WHITE BALANCE WDR / BLC DAY & NIGHT IMAGE SPECIAL SYSTEN RESET DATA ALL Main Sub Menu Sub Menu BRIGHTNESS 0 ~ 20 AE MODE NORMAL AE / INDOOR (DC IRIS Only) LENS (IRIS) (DC IRIS Only) MANUAL / AUTO... - Page 15 9 . OS D M AN UA L Main Sub Menu Sub Menu D&N DETECT AGC / SENSE (LED Type Only) DELAY 1sec, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60sec COLOR / DAY & D->N LEVEL 0 ~ 20(AGC) / 0 ~10(SENSE) B&W / NIGHT N->D LEVEL...
-
Page 16: Function Description
9 . OS D M AN UA L • Function Description 0. SETUP - EXPOSURE : Go sub menu for camera exposure control. - WHITE BALANCE : Go sub menu for camera white balance control. - WDR/BLC : Go sub menu for camera WDR or BLC action. - DNR : Control noise reduction setting. - Page 17 9 . OS D M AN UA L 3. WDR/BLC - MODE : Select WDR / BLC mode. • WDR : Act in wdie dynamic rage mode. Controled video frame rate in 1/2. • BLC : Act in Backlight compensation mode. •...
- Page 18 9 . OS D M AN UA L - HLMASK : Mask image high light area. • LEVEL : Select high light level. • COLOR : Select mask color. - PATTERN : Color bar display Select. 8. SYSTEM - SDI FORMAT : 1080P / 720P.
