Summary of Contents for KT&C KPC-HDN720M

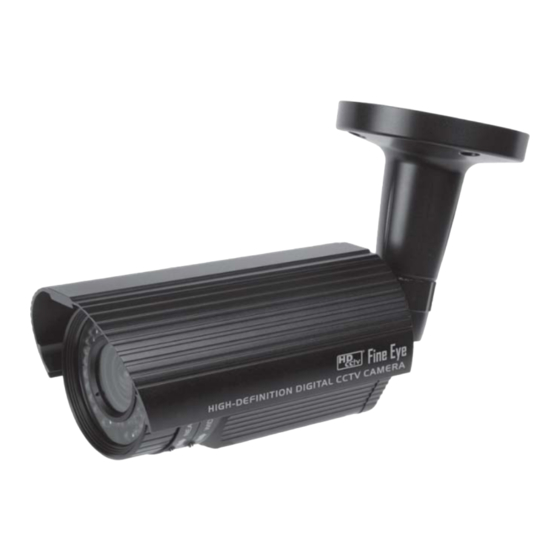

- Page 1 HD CCTV Digital Video Camera – PERATION ANUAL MODEL KPC-HDN720M Table of Contents...
-
Page 2: Table Of Contents
KPC-HDN720M 1. CAUTIONS _________________________________________________ - 3 - 2. FEATURES _________________________________________________ - 5 - 3. COMPONENTS _____________________________________________ - 6 - 4. INSTALLATION ____________________________________________ - 7 - 5. DIMENSIONS _____________________________________________ - 10 - 6. SPECIFICATION __________________________________________ - 11 - 7. OSD MANUAL ____________________________________________ - 12 -... -
Page 3: Cautions
KPC-HDN720M 1. CAUTIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; This device may not cause harmful interference. This device must accept any interface received, including interference that may cause undesired operation. - Page 4 KPC-HDN720M Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicae that it should not be disposed with other household wastes at the end of working life.
-
Page 5: Features
KPC-HDN720M 2. FEATURES High Resolution SONY 1/2.8” Progressive Color CMOS Image Sensor, 1920x1080 60fps Support various digital video output 720p30, 720p60, 720p25, 720p50, 1080i60, 1080i50, 1080p30, 1080p60, 1080p25, 1080p50 Video Outputs Primary HD-SDI (BNC) Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable ... -
Page 6: Components
KPC-HDN720M 3. COMPONENTS HD CCTV Digital Video Camera Service VIDEO OUTPUT Test Cable L Wrench Operation Manual Screw – 4ea JULY, 2011. <Doc. V. 0.20> | - 6 -... -
Page 7: Installation
KPC-HDN720M 4. INSTALLATION Camera Mounting Position < Cable Concealed Thru Bracket > JULY, 2011. <Doc. V. 0.20> | - 7 -... - Page 8 KPC-HDN720M External Zoom & Focus Adjustable The workmanship to adjust zoom and focus, opening the window cap might cause the humidity problems to the camera. The External Zoom and Focus system with out state-of-the-art technology provides easy camera installation without opening the window cap to adjust zoom and focus the lens.
- Page 9 KPC-HDN720M Servie Video Out & OSD Control Monitor Connection JULY, 2011. <Doc. V. 0.20> | - 9 -...
-
Page 10: Dimensions
KPC-HDN720M 5. DIMENSIONS Unit(mm) JULY, 2011. <Doc. V. 0.20> | - 10 -... -
Page 11: Specification
KPC-HDN720M 6. SPECIFICATION Image Device SONY 1/2.8” Progressive Color CMOS Image Sensor Effective Pixels 2096 (H) x 1561 (V) 60fps Unit cell size 2.5um (H) x 2.5um (V) HD-SDI : 720p30, 720p60, 720p25, 720p50, 1080i60, 1080i50, Video output mode 1080p30, 1080p60, 1080p25, 1080p50... -
Page 12: Osd Manual
KPC-HDN720M 7. OSD MANUAL Menu structure Main Menu VIDEO Menu VIDEO SDI RESOLUTION 1080P / 1080I / 720P 1080p / 720p SDI FRAME RATE 30HZ / 25HZ / 60HZ / 50HZ 1080i 60HZ / 50HZ CVBS FORMAT NTSC / PAL... - Page 13 KPC-HDN720M EXPOSURE Menu WHITE BALANCE Menu JULY, 2011. <Doc. V. 0.20> | - 13 -...
-
Page 14: Image Menu
KPC-HDN720M DAY & NIGHT Menu IMAGE Menu IMAGE GAMMA Y GAMMA PRESET 0 ~ PRESET 3 C GAMMA PRESET 0 ~ PRESET 3 SHARPNESS 0 ~ 31 CONTRAST 0 ~ 31 SATURATION 0 ~ 31 OFF / LOW / MIDDLE / HIGH... -
Page 15: System Menu
KPC-HDN720M SYSTEM Menu FIRMWARE VER SYSTEM COMMUNICATION CAMERA ID NO. 0 ~ NO. 255 BAUD RATE 2.4K / 4.8K / 9.6K / 19.2K / 38.4K / 57.6K COMM APPLY FOCUS MODE ON / OFF FACTORY RESET JULY, 2011. <Doc. V. 0.20> | - 15 -... - Page 16 KPC-HDN720M Main Menu MAIN MENU + VIDEO + LENS + EXPOSURE + WHITE BALANCE + DAY & NIGHT + IMAGE + SYSTEM * EXIT - VIDEO : Select SDI out format and TV out format - LENS : Select the IRIS type and adjust the IRIS control value...
- Page 17 KPC-HDN720M VIDEO VIDEO * SDI RESOLUTION 1080P * SDI FRAME RATE 30HZ * CVBS FORMAT NTSC + VIDEO APPLY * ESC * EXIT - SDI RESOLUTION : Use the LEFT/RIGHT button to select the SDI output video resolution - 720p, 1080i, 1080p * Note : When the OSD menu is not displayed on video, 720p resolution can be selected by pressing the UP button in 5 seconds.
- Page 18 KPC-HDN720M LENS LENS * LENS TYPE DC IRIS * IRIS VOLUME * ESC * EXIT - LENS TYPE : Lens type for iris control. - DC IRIS only - IRIS VOLUME : Use the LEFT/RIGHT button to adjust the iris volume level.
- Page 19 KPC-HDN720M EXPOSURE EXPOSURE + SHUTTER * FLICKERLESS * BRIGHTNESS * AGC * BLC * WDR * ESC * EXIT - SHUTTER : Use the SET button to go to the SHUTTER sub menu. - FLICKERLESS : Use the LEFT/RIGHT button to select the flickerless control setting...
- Page 20 KPC-HDN720M SHUTTER (Sub Menu) - SHUTTER MODE : Use the LEFT/RIGHT button to select shutter & gain control mode - NORMAL AE, AE HOLD, MANUAL - AE PRIORITY : This menu can be accessed when the SHUTTER MODE is set to NORMAL AE.
- Page 21 KPC-HDN720M WHITE BALANCE - WB MODE : Use the LEFT/RIGHT button to select White balance modes – ATW, MANUAL, SPECIFIC COLOR, PUSH Auto trace white balance mode MANUAL Manual white balance mode SPECIFIC COLOR Manual setting with target color temperature...
- Page 22 KPC-HDN720M DAY & NIGHT - DAY & NIGHT : Use the LEFT/RIGHT button to select Day & Night modes – AUTO, COLOR, BW AUTO Auto controlled by signal from CDS sensor. (CDS Type) COLOR Fixed Day State. Color Image.
- Page 23 KPC-HDN720M IMAGE IMAGE + GAMMA * SHARPNESS * CONTRAST * SATURATION * DNR + PRIVACY * MIRROR * ESC * EXIT - GAMMA : Use the SET button to go to the GAMMA sub menu. - SHARPNESS : Use the LEFT/RIGHT button to adjust the sharpness value.
- Page 24 KPC-HDN720M GAMMA (Sub Menu) GAMMA * Y GAMMA PRESET 2 * C GAMMA PRESET 3 * ESC * EXIT - Y GAMMA : Use the LEFT/RIGHT button to select preset gamma setting for luma. - C GAMMA : Use the LEFT/RIGHT button to select preset gamma setting for chroma.
- Page 25 KPC-HDN720M PRIVACY MASK (Sub Menu) PRIVACY MASK * ZONE SELECT ZONE * MASK ON / OFF * TRANSPARANT * COLOR WHITE + POSITION CONTROL * ESC * EXIT - ZONE SELECT : Use the LEFT/RIGHT button to select the mask zone number to setting.
- Page 26 KPC-HDN720M PRIVACY MASK POSITION CONTROL (Sub Menu) PRIVACY MASK * V SIZE * H SIZE * V POSITION * H POSITION * MOSAIC * ESC * EXIT - V SIZE : Use the LEFT/RIGHT button to adjust the mask vertical size.
- Page 27 KPC-HDN720M SYSTEM SYSTEM * FIRMWARE VER 0.2B.25 + COMMUNICATION * FOCUS MODE * FACTORY RESET * ESC * EXIT - FIRMWARE VER : Information of camera’s firmware version. - COMMUNICATION : Use the SET button to go to the COMMUNICATION sub menu.
- Page 28 KPC-HDN720M COMMUNICATION (Sub Manu) COMMUNICATION * CAMERA ID * BAUD RATE 2.4K + COMM APPLY * ESC * EXIT - CAMERA ID : Use the LEFT/RIGHT button to select the RS485 ID Address. - BAUD RATE : Use the LEFT/RIGHT button to select the baudrate setting for RS485 communication.
