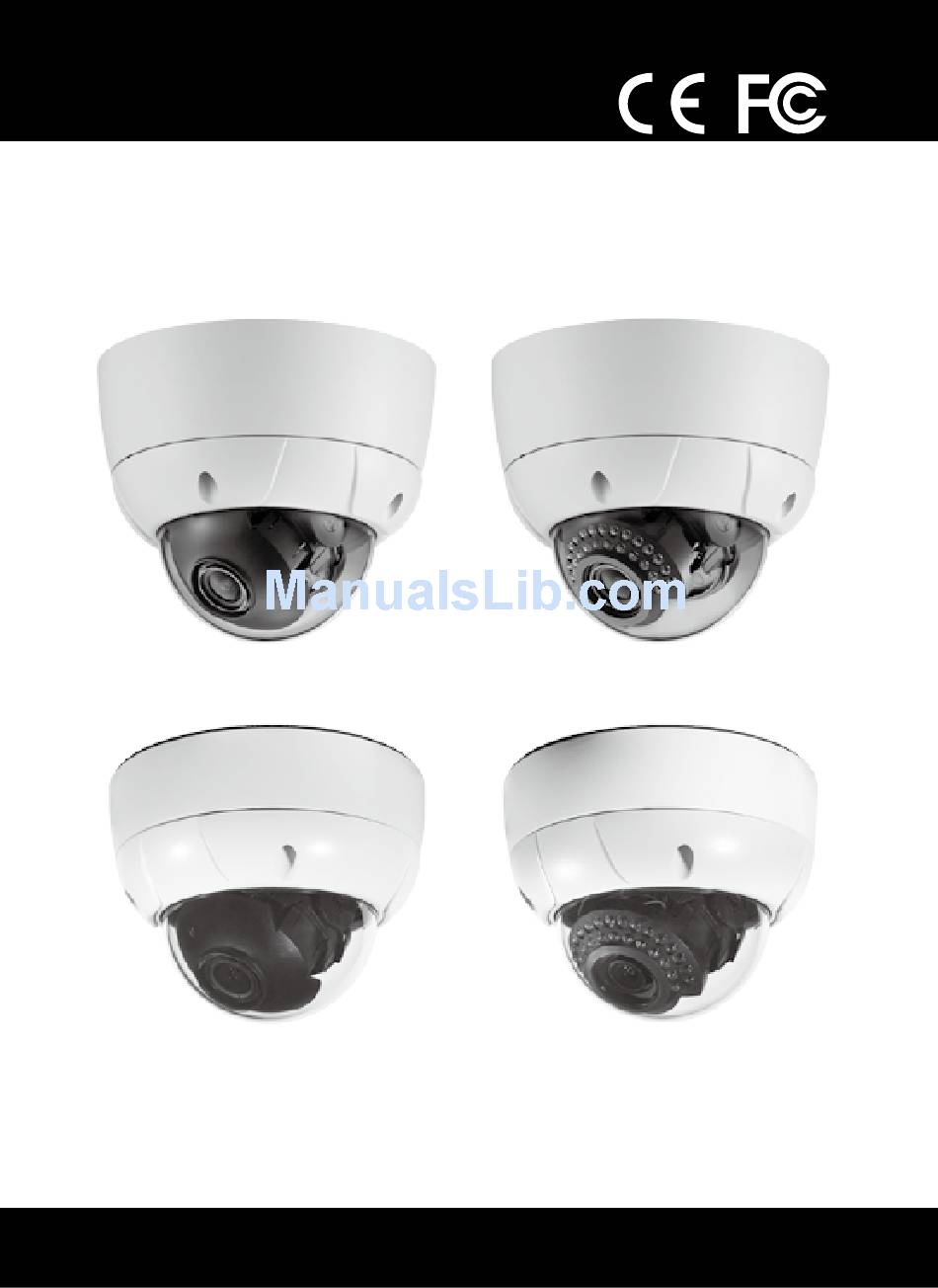

- Page 1 M063-VDN101-002 HIGH RESOLUTION ARMORED DOME CAMERA OPERATI ON MANUAL T han k y ou for choosing our high q ua lity ca m e ra . Before attempting t o connect or ope ra t e , p le a se re a d a n d fo llo w th ese ins tructions.
- Page 2 C ON TE NT S 1 . C a u t i on s 2 . F e a t u re s 3 . P a c k a g e 4 . O v e r v ie w an d f un ct i on 5 .
- Page 3 1 .Ca ut i ons This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. Thi s device may not cause ha rmf u l in te rf e re n ce . 2.
-
Page 4: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)
1 .Ca ut i ons Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. - Page 5 2 .Fea tures CAUTIONS • Sony 1/3” Super HAD CCDⅡ • 550TV Lines • OSD Function • Manual shutter • Privacy Zone • Dual Voltage use DC12V/AC24V • Motion Detection • 3-Axis Gimbal Pan Rotation Tilt Rotation Horizontal Rotation CAUTION panning the bracket in excess of 3 rotations in one direction may cause damage to the cable.
- Page 6 3 .Package FEATURES CAUTIONS ARMORED DOME CAMERA SURFACE MOUNT VIDEO OUTPUT TEST CABLE OPERATION MANUAL SCREW(M4x10) - 4ea SCREW(5x30) - 4ea SCREW(M4x40.SUS) - 4ea L WRENCH - T20 MOUNT GUIDE...
-
Page 7: Overview And Function
4.Overview and function • Name (LED Type) • CONTROL FUNCTION (OSD JOYSTICK) R I GH T L E F T • Name (Standard) ME N U D O W N... -
Page 8: Installation
5 . Installation Mount Guide LED Type Standard Type... - Page 9 5 . Installation 1. Installation of Flush Mount ① Installation of the camera with SURFACE CASE(using M4x40) ② Installation of the camera with SCREWS ③ Installation of the camera with JUNCTION BOX 2. Installation of Surface Mount PIPE ① Installation of the camera on the wall ②...
- Page 10 6 .Connection • DUAL(DC 12V/AC24V) • DC 12V When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
- Page 11 7 .Dim ensions Unit : mm Surface Mount Type Type A Type B Flush Mount Type 45 ˚ 70 ˚ Standard Type LED Type When you fix the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please set short distance focus approximately 3M and do not set long distance focus...
- Page 12 8 .Specificat ion s Signal Format NTSC Image Device 1/3" Sony Super HAD CCDⅡ Scanning System 2:1 Interlace H.Resolution 550TV Lines Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Electronic Shutter Speed 1/60 sec...
-
Page 13: Setup Menu
9 .Setup m enu o p e r a t i o n SETUP MENU CAMERA ID • ON • OFF LENS • MANUAL • VIDEO • DC SHUTTER • AUTO • FLK • FIXED • MANUAL WHITE BAL. • ATW •... - Page 14 9 .Setup m enu o p e r a t i o n 1)SETUP mode - Press and hold MENU button 1 second to access the setup mode. SETUP menu is displayed on the monitor. ① Select OSD item using UP, DOWN button. ②...
- Page 15 9 .Setup m enu o p e r a t i o n 3)LENS 3-1) LENS setup Press LEFT or RIGHT button in LENS on SETUP menu to select the mode to MANUAL VIDEO DC 3-2) DC LENS setup (IRIS LEVEL setup) ①...
-
Page 16: White Balance
9 .Setup m enu o p e r a t i o n 4-4) SHUTTER MANUAL setup(MANUAL, DC, VIDEO LENS) ① Press MENU button in MANUAL ② Press LEFT or RIGHT button in SHUTTER M. SHUTTER M. value is changed between 0<MIN>... - Page 17 9 .Setup m enu o p e r a t i o n 6)ADJUST Mode Setup 6-1) ADJUST setup ① Press MENU button in ADJUST. ② Press UP or DOWN button to select the mode. ③ Each level value can be adjusted using LEFT, RIGHT button.
- Page 18 1 0.Fun ct ion Me n u o p er a t i o n 1)FUNCTION menu - Press MENU button in FUNCTION. on SETUP menu. ① Select item using UP, DOWN button. ② Set details using LEFT, RIGHT button. ③...
- Page 19 1 0.Fun ct ion Me n u o p er a t i o n 2-3) BLC AREA MODE ① ALL CLEAR – Clear all set AREA ② ALL SET – Set all 64 BLC AREA ③ RETURN – Return to BLC AREA setup mode.
- Page 20 1 0.Fun ct ion Me n u o p er a t i o n 4)DAY & NIGHT (STANDARD TYPE Only) - Press LEFT or RIGHT button in DAY NIGHT select the mode to AUTO B/W COLOR. 4-1) AUTO mode setup - Press MENU button in AUTO mode.
- Page 21 1 0.Fun ct ion Me n u o p er a t i o n 5)PRIVACY 5-1) PRIVACY setup ① Default setting OFF ② Using LEFT, RIGHT button, change setup to ON mode. ③ After ON mode setup, 4 AREA groups are configured as displayed on the bottom picture.
- Page 22 1 0.Fun ct ion Me n u o p er a t i o n 6)MIRROR ① MIRROR default setting OFF ON setting – Use LEFT, RIGHT button. ② Left and Right side is switched as shown on the picture. 7)GAMMA 7-1) GAMMA setup (DEFAULT 0.45) ①...
- Page 23 1 0.Fun ct ion Me n u o p er a t i o n 8)MOTION 8-1) MOTION setup ① DEFAULT value OFF ② In ON, press MENU button. ③ Display MOTION details. 8-2) AREA setup In AREA , press MENU button. 8-2-1) MOTION AREA setup ①...
-
Page 24: Troubleshooting
11.Tr oubleshoo t i n g If there are problems in operation, please refer to the items below. If the problem persists, please contact the agent you purchased this product from. Problems Troubleshooting • Please check the power connection. Nothing appears on the screen. •...
